CLEARANCES - INDOOR
6 " (0.15m ) min.
5
"
(0.13m)
min.
6'
5 "
(0.13m)
min.
(1.8m)
CEILING
FLOOR

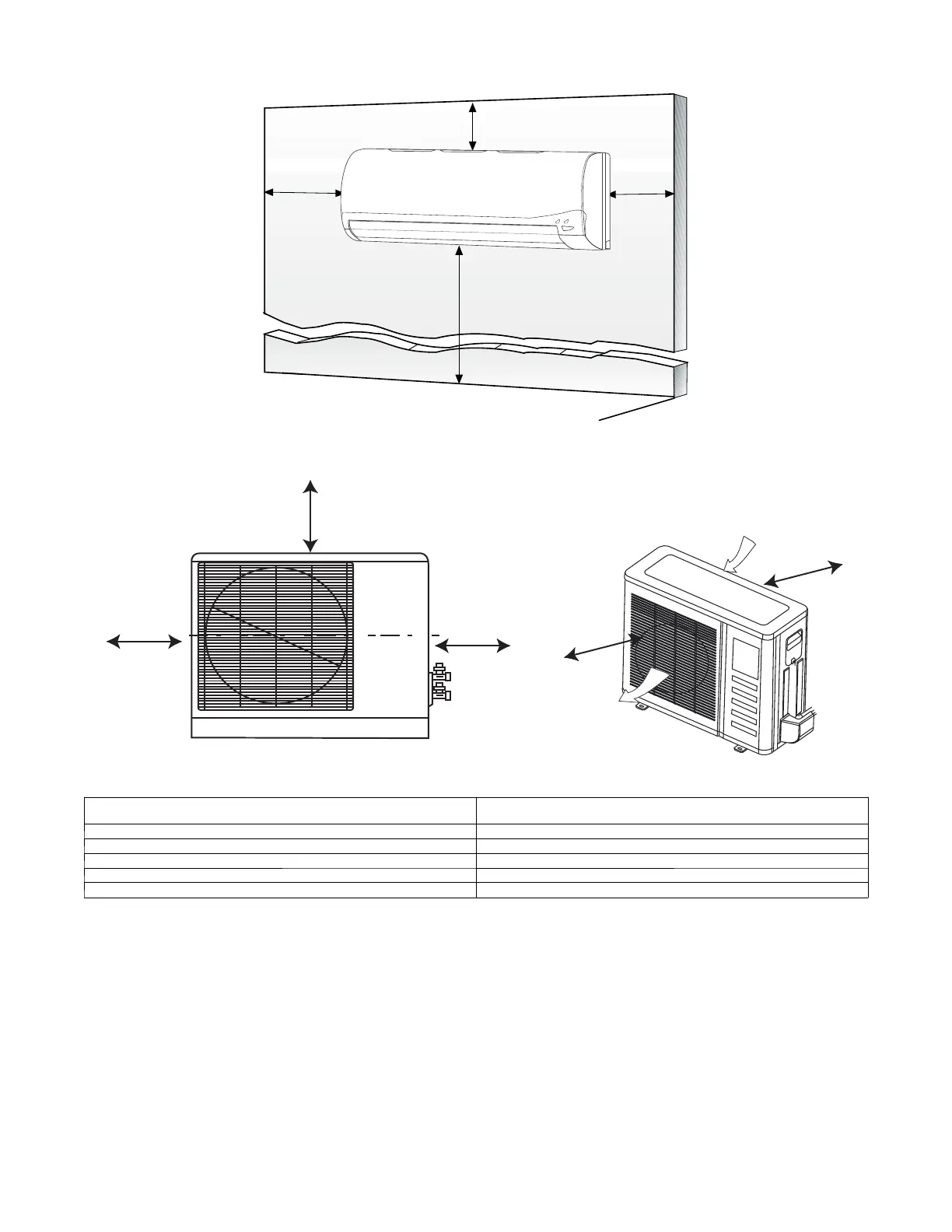

Fig. 6 – Indoor Unit Clearance
CLEARANCES - OUTDOOR
A
D
B
Air-outlet
Air-inlet
C
E
Fig. 7 – Outdoor Unit Clearance
UNIT
Minimum Value
in. (mm)
A 24 (609)
B 24 (609)
C 24 (609)
D 4 (101)
E 4 (101)
