DIMENSIONS - OUTDOOR

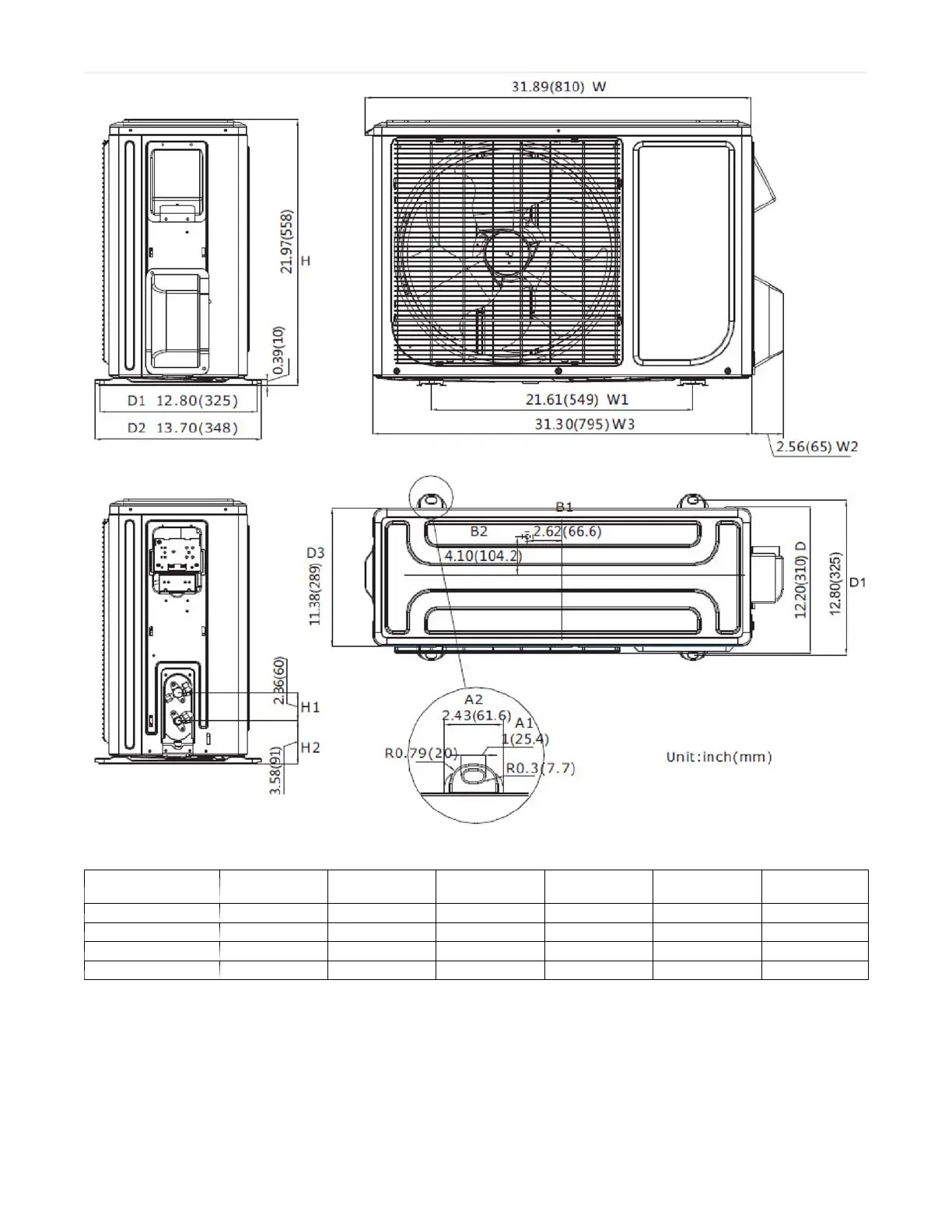

Fig. 3 – Outdoor Unit Sizes 09 and 12
Model W in (mm) D1 in (mm) H in (mm) W1 in (mm) D1 in (mm)
Operating
Weight lb (kg)
9K/12K 32.0 (810) 12.2 (310) 22.0 (558) 20.9 (530) 11.4 (290) 82.5 (37.4)
18K 33.2 (845) 13.2 (335) 27.6 (700) 22.1 (560) 13.2 (335) 102.5 (46.5)
24K 37.2 (945) 15.9 (405) 31.9 (810) 25.2 (640) 15.9 (405) 137.6 (62.4)
30K 37.2 (945) 15.9 (405) 31.9 (810) 25.2 (640) 15.9 (405) 157.6 (71.5)
