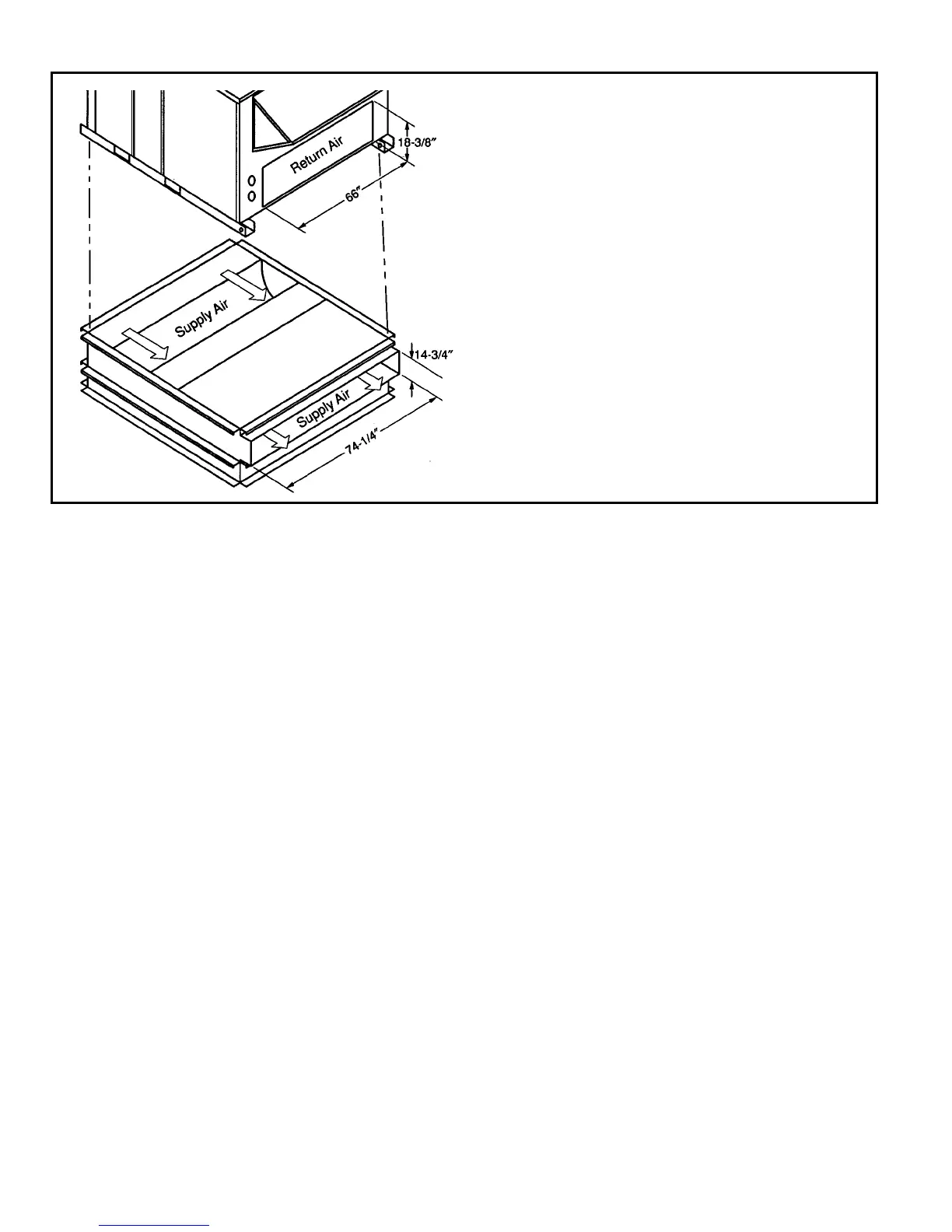

DIMENSIONAL DRAWING — HORIZONTAL ADAPTER INSTALLATION
NOTE: 389210-201 is a fully factory preassembled horizontal
adapter which includes an insulated high static regain transition duct
and substantially improves fan static performance.
6
