Page #27 background imageLoading...
Page #27 background image

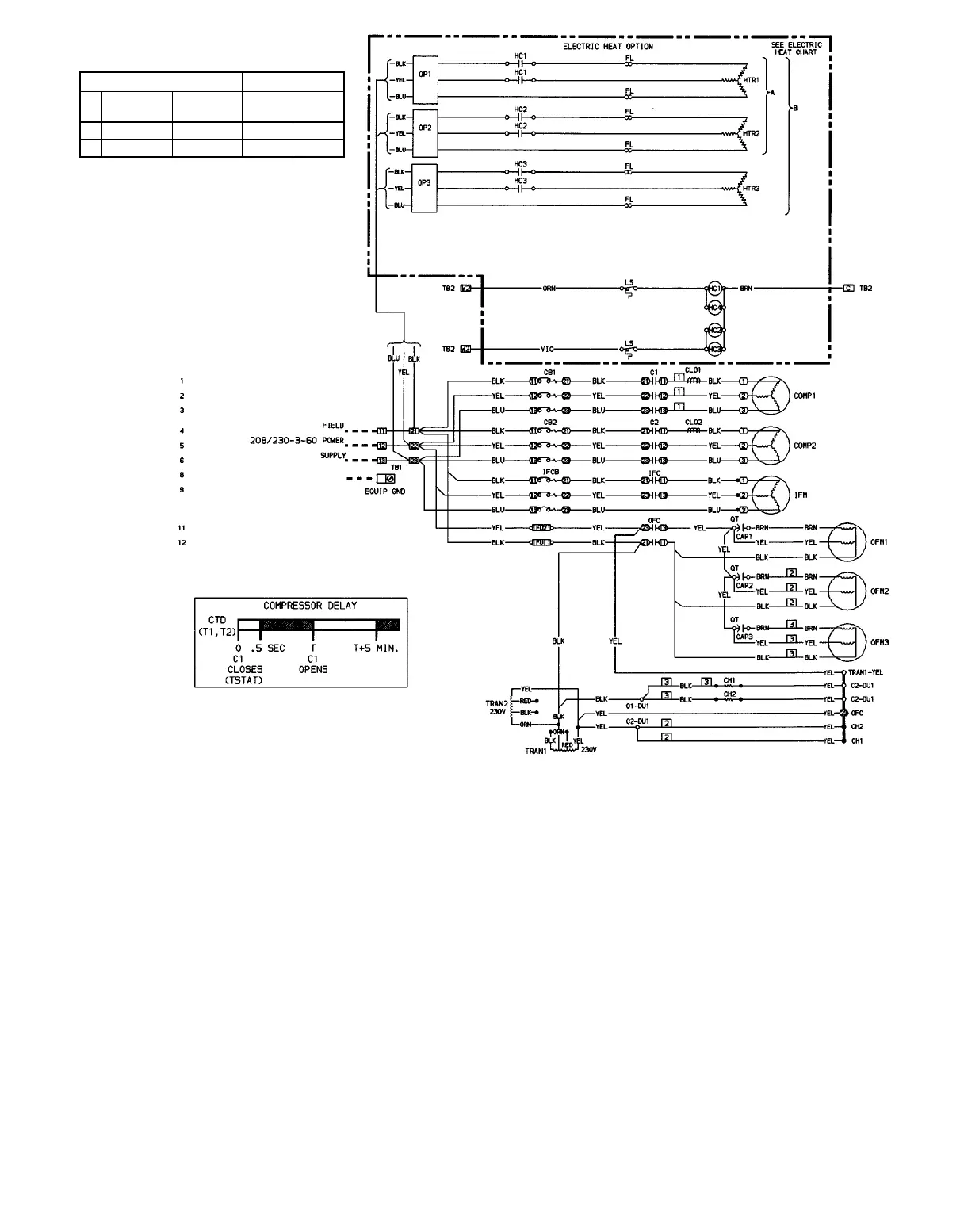

Fig. 33 — Typical Label Diagram, Schematic (542J180, 208/230 V, 60 Hz Unit Shown)
ELECTRIC HEAT AHA SETTING
208/240 V
Amps
208/240 V
kW
1st 2nd
A 72/ 82 25.7/34.2 1.00 0.52
B 117/135 42.3/56.1 1.00 0.78
—27—
