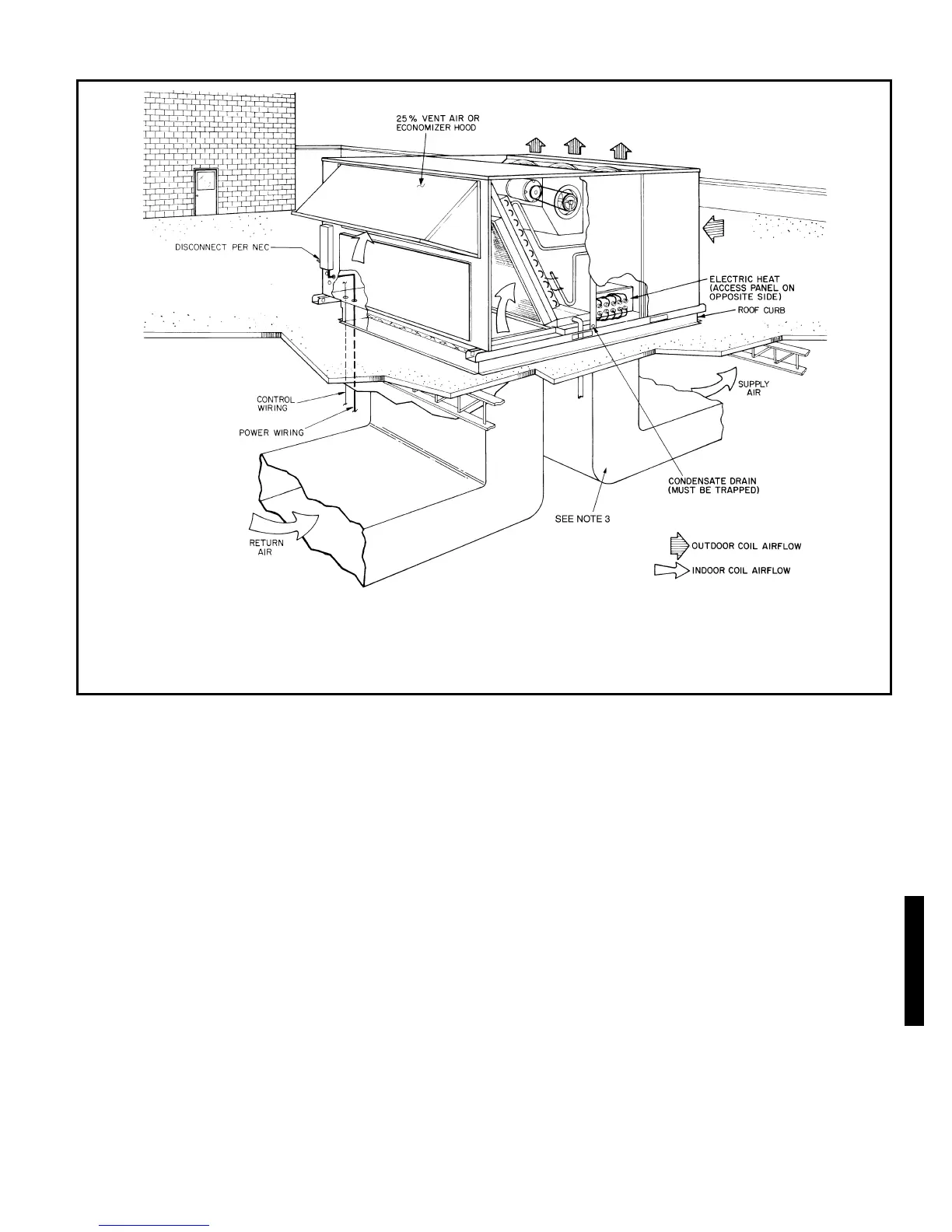

TYPICAL PIPING AND WIRING — 542J150,180
LEGEND
NOTES:
1. Illustration shown is a general guide only and is not intended to include all details for any specific installation.
2. Installation must comply with all applicable codes.
3. A 90-degree elbow must be installed on the supply ductwork below the unit discharge for units equipped with electric heat.
NEC — National Electrical Code
