provisions of local building code. In Canada, follow sections 7.2,
7.3, or 7.4 or Can/CGA. (Canadian Gas Association) B149
Installation Codes or applicable provisions of local building code.

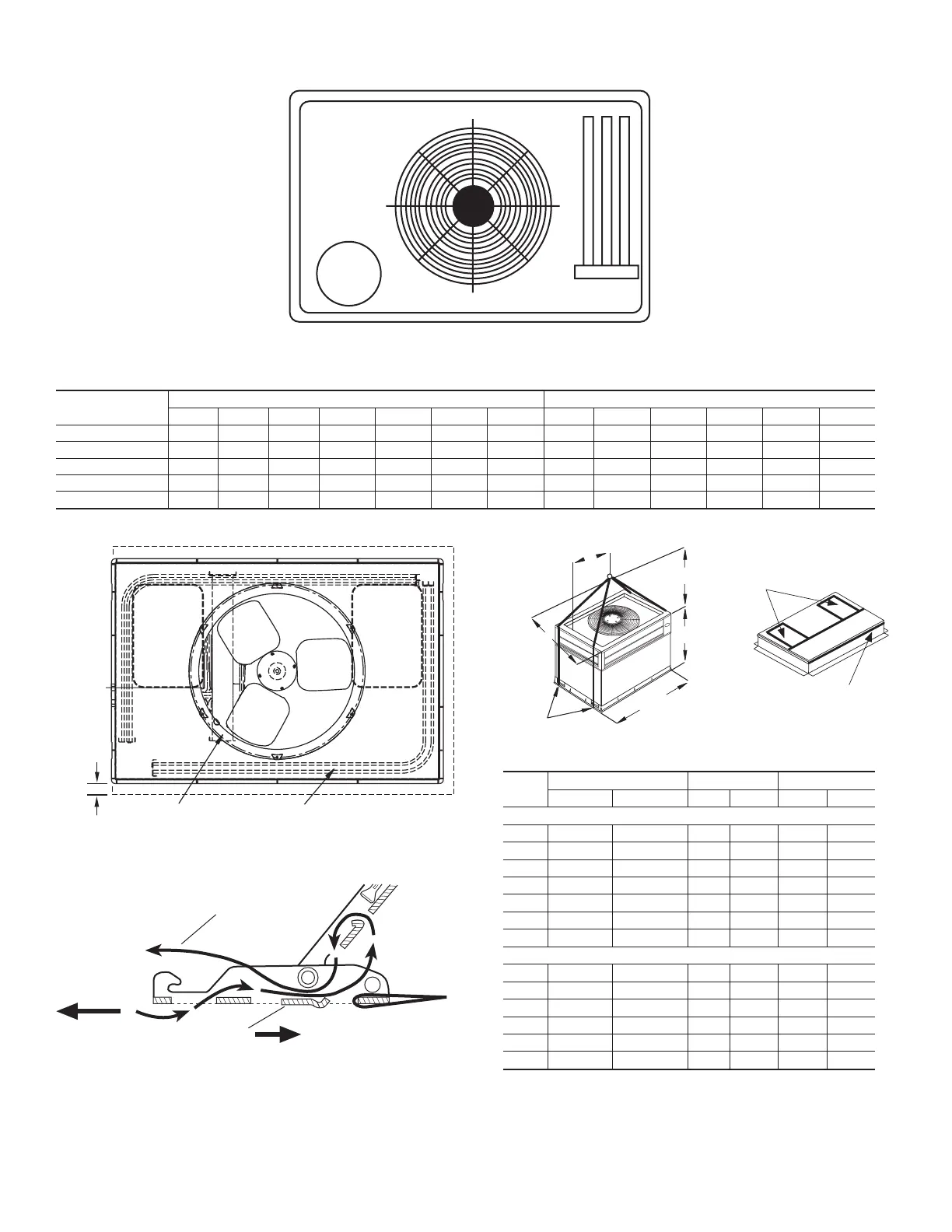

Fig. 5—582A and 583A Unit Corner Weights
CORNER #
582A 583A
018 024 030 036 042 048 060 024 030 036 042 048 060
1 47.3 53.2 53.2 59.7 67.5 78.9 85.5 55.1 59.5 61.0 72.6 80.0 88.9
2 44.8 50.4 50.4 56.5 63.9 74.7 81.0 52.2 56.3 57.8 68.8 75.8 84.2
3 77.2 86.8 86.8 97.3 110.1 128.7 139.5 89.9 97.0 99.5 118.4 130.5 145.1
4 79.7 89.6 89.6 106.5 113.6 132.8 144.0 92.8 100.2 102.7 122.2 134.7 149.8
TOTAL WEIGHT 249 280 280 320 355 415 450 290 313 321 382 421 468
C00070
12
43
x
y
Fig. 6—Slab Mounting Details
C99014
OPTIONAL
RETURN
AIR
OPENING
OPTIONAL
SUPPLY
AIR
OPENING
EVAP.
COIL
COND.
COIL
2"
(50.8mm)
Fig. 7A—Threading Bolt for Rigging
C99067
HANDHOLD
FEED
HOOK
Fig. 7B—Suggested Rigging
SIZE
MAXIMUM WEIGHT A B
lb kg in. mm in. mm
UNIT 582A
018 271 123.2 20.0 508.0 14.0 355.6
024 302 137.3 22.5 571.5 13.0 330.2
030 302 137.3 21.5 546.1 13.75 349.3
036 342 155.1 22.5 571.5 14.0 355.6
042 377 171.4 21.5 546.1 13.5 342.9
048 437 198.6 22.0 558.5 17.0 432.0
060 472 214.5 22.0 558.5 17.0 432.0
UNIT 583A
024 312 142 22.0 558.5 14.50 368.3
030 335 152 22.0 558.5 15.30 388.6
036 343 156 22.0 558.5 15.30 388.6
042 404 183 23.0 584.2 16.3 414.0
048 443 201 21.5 546.1 16.3 414.0
060 490 222 23.5 596.9 16.3 414.3
C99015
A
1226.3
(48.28”)
914-1371
(36”-54”)
927.57
(36”-52”)
PLACE RIGGING STRAPS IN
BASEPAN SLOT (BELOW RIGGING HOLDS)
BEFORE RIGGING
SEAL STRIP MUST BE IN
PLACE BEFORE PLACING
UNIT ON ROOF CURB
DUCTS
B
