Bryant 619F - Installation Diagram

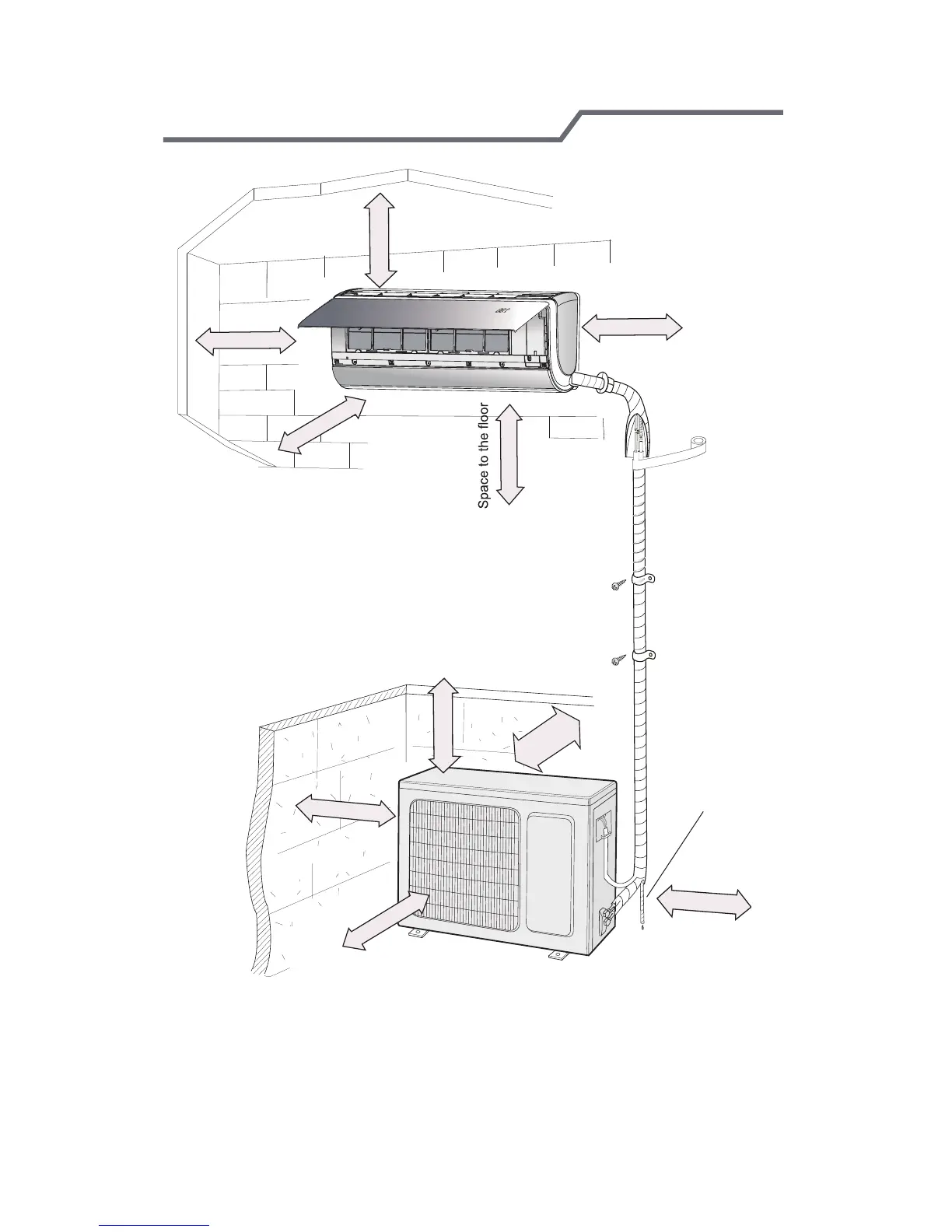

Installation diagram
Drainage pipe
At least 8.2 ft (250cm)
At least 4.9 ft (15cm)
At least 1.64 ft (50cm)
At least 1.64ft (50cm)
At least
0.98 ft (30cm)
At least 9.8 ft (300cm)
At least 6.56 ft (200cm)
Space to the obstruction
Space to the
obstruction
Space to the
obstruction
Space to the ceiling
Space to the obstruction
Space to the obstruction
At least 0.98 ft (30cm)
At least 0.49 ft (15cm)
At least 0.49ft (15cm)
Space to the wall
Space to the wall
Space to the wall
-23-
