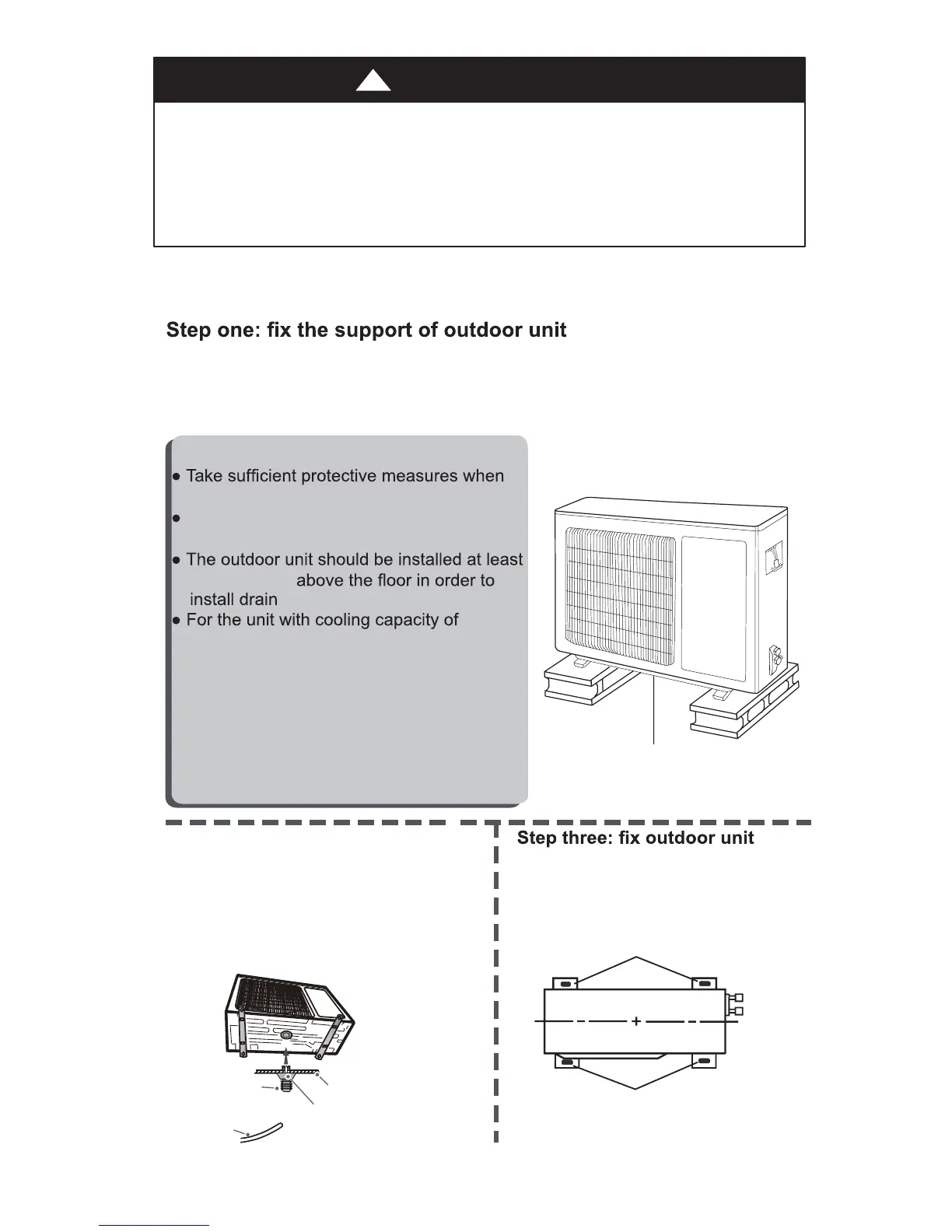

OUTDOOR UNIT INSTALLATION FOR SINGLE ZONE APLICATIONS
(REFER TO THE 538K OWNER'S MANUAL FOR MULTIZONE)
CAUTION NOTE
(select it according to the actual installation situation)
1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.
3. Make sure the outdoor unit is mounted level and off the ground in areas where
there is snow.
at least 1 1/6 in (3cm) above the floor
Note:
installing the outdoor unit.
Make sure the support can withstand at least
four times of the unit weight.
joint.
1 1/6 in (3cm)
6 5/7 HP (2300W~5000W), 6 expansion
screws are needed;
3 HP~
for the unit with cooling capacity of 8 HP~
10 3/4 HP (6000W~8000W), 8 expansion
screws are needed;
for the unit with cooling capacity of 13 2/5 HP
~21 1/2 HP (10000W~16000W) ,10 expansion
screws are needed.
Step two: install drain joint
(Only for cooling and heating
unit)
1. Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.
2. Connect the drain hose into the drain
vent.
chassis
outdoor drain joint
Drain hose
drain vent
1. Place the outdoor unit on the
support.
2. Fix the foot holes of outdoor unit
with bolts.
foot holes
foot holes
EQUIPMENT DAMAG E HAZARD
Failure to follow this caution may result in equipment damage or improper operation.
In regions with snowfall and cold temperatures, avoid installing the outdoor unit in areas where it can
be covered by snow. If the outdoor unit is installed in areas where heavy snow is expected, a field
supplied ice or snow stand and/or field supplied--installed wind baffle should be installed to protect the
unit from snow accumulation and/or blocked air intake. Blocking the air intake may result in reduced
airflow, significantly reduced performance and damage to the equipment.
