Bryant 619PHA Series - Indoor Unit 09 K-12 K Step Motor Disassembly

SM619PHA-03 Specifications subject to change without notice. 49
Indoor Unit Sizes 09K-12K (Fan Motor and Fan) (continued)

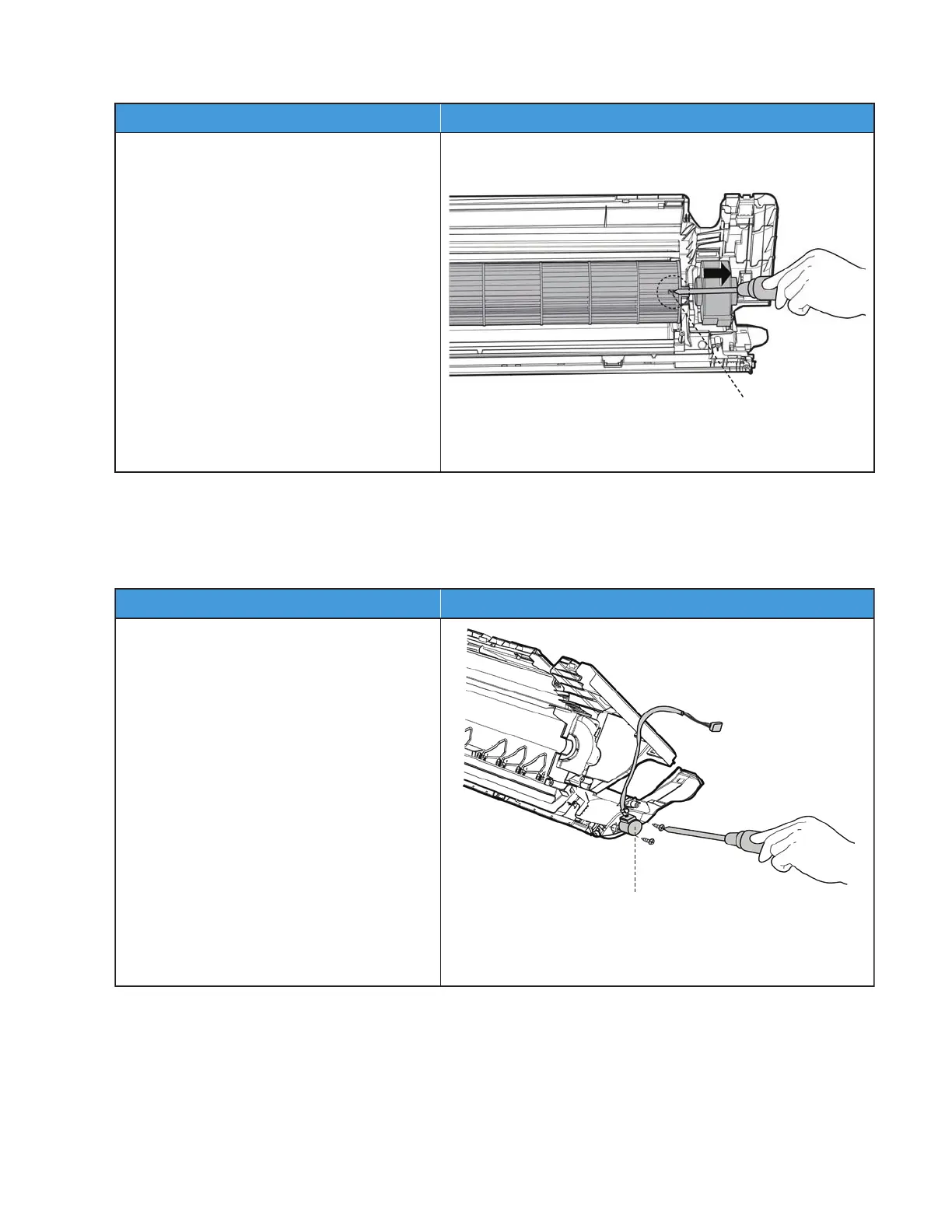

Indoor Unit Sizes 09K-12K (Step Motor)
NOTE: Remove the front panel and electrical parts (refer to the front panel, electrical parts removal steps) before
disassembling the step motor.
noitartsullIerudecorP
3) Remove the set screw.
4) Pull out the fan motor and fan assembly
from the side.
Fixing Screw
noitartsullIerudecorP
1) Remove the screws (2), then remove the
stepping motor.
Stepping Motor
