Bryant 619PHA Series - Indoor Unit 18 K-24 K Electrical Parts Disassembly

SM619PHA-03 Specifications subject to change without notice. 57
Indoor Unit Sizes 18K-24K (Electrical Parts) (Anti-static gloves must be worn)
NOTE: Remove the front panel (refer to the front panel removal steps) before disassembling electrical parts.
noitartsullIerudecorP

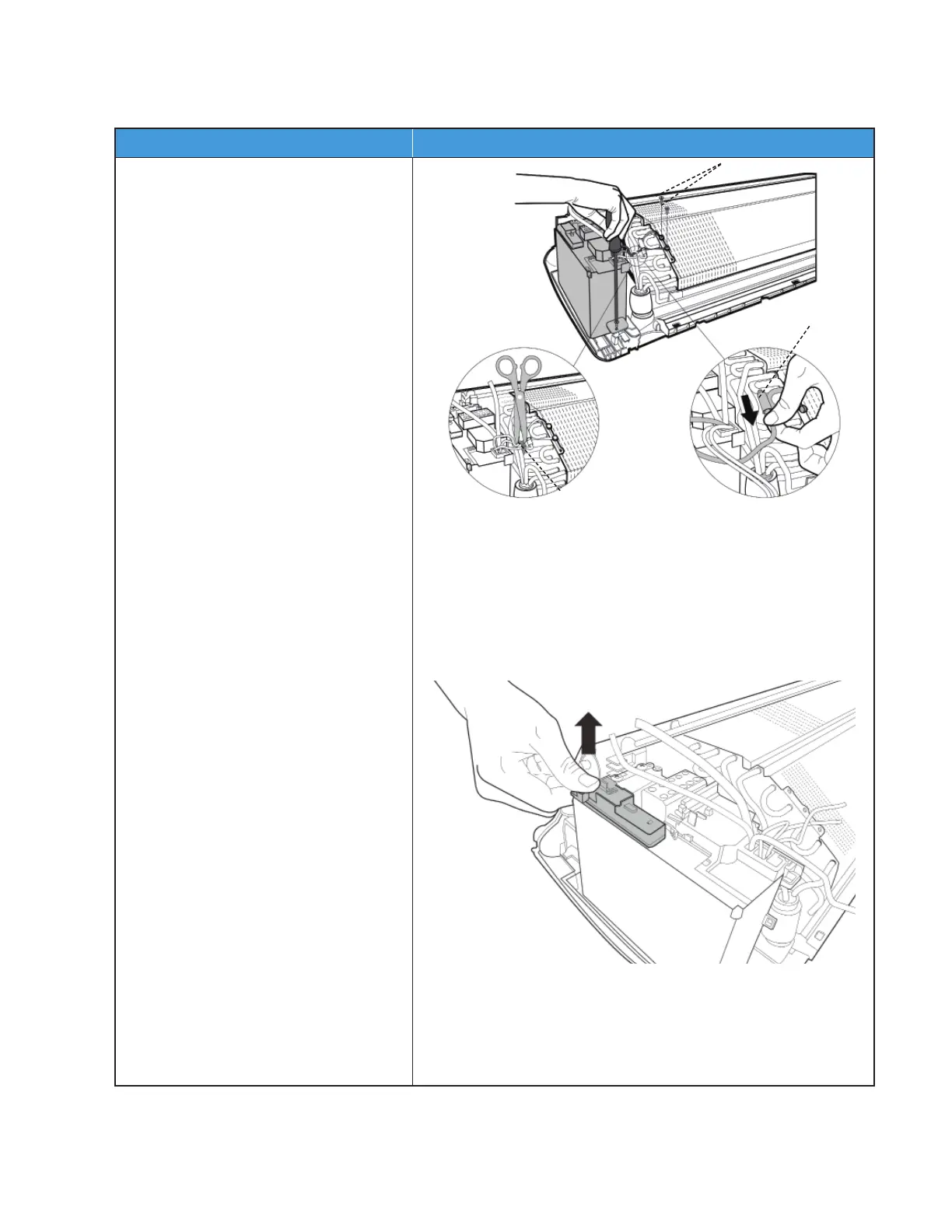

1) Cut the ribbon with a shear, then pull
out the coil temperature sensor (T2).
2) Remove the fixing screw (1) on the
electronic control box and two screws
used for the ground connection.
3) An upward force is maintained until
the electronic control box cover is
removed.
Ribbon
T2 Sensor
Ground Screws
