Bryant 915SB - Dimensional Drawing

6
A180203
FURNACE SIZE
A B C D
SHIP WT.
LB (KG)
CABINET WIDTH OUTLET WIDTH BOTTOM INLET WIDTH AIR INTAKE
30026E14 14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 118.5 (53.7)
30040E14 14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 120 (54.4)
36040E17 17--- 1/ 2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 126.5 (57.4)
36060E14 14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 129 (58.5)
42060E17 17--- 1/ 2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 138.5 (62.8)
48080E17 17--- 1/ 2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 146.5 (66.4)
60080E21 21 (533) 19--- 3/8 (492) 19 --- 1/2 (495) 10--- 1/2 (267) 154.5 (70.1)
60100E21 21 (533) 19--- 3/8 (492) 19 --- 1/2 (495) 10--- 1/2 (267) 164.5 (74.6)
60120E24 24--- 1/ 2 (622) 22--- 7/8 (581) 23 (584) 12--- 1/4 (311) 179.5 (81.4)
66140E24 24--- 1/ 2 (622) 22--- 7/8 (581) 23 (584) 12--- 1/4 (311) 189 (85.7)

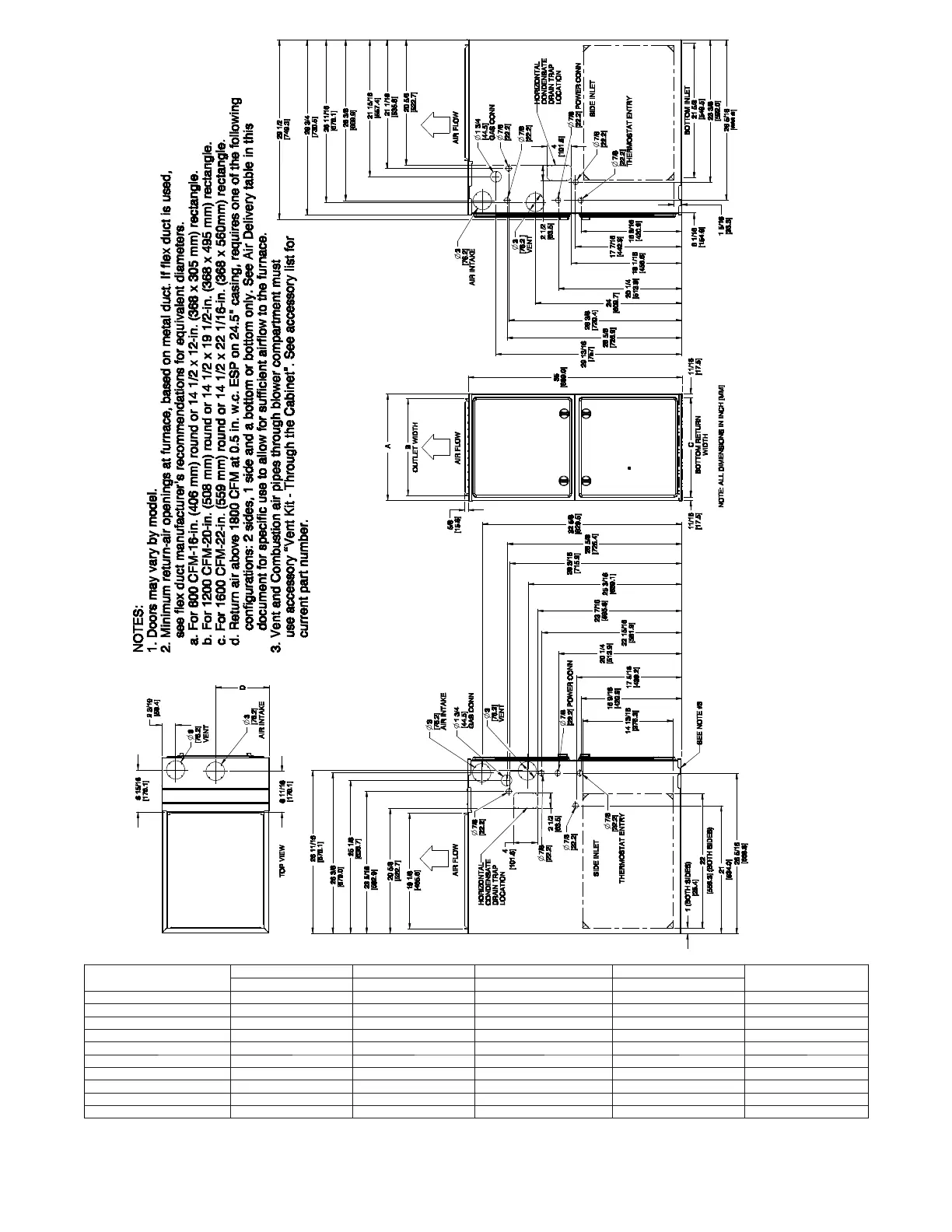

Fig. 2 -- Dimensional Drawing
