Bryant Base Series - Air Conditioner Troubleshooting Chart; Compressor Will Not Run; No Cooling Or Insufficient Cooling

Residential Air Conditioners and Heat Pumps Using R-22 and Puron® Refrigerant: Application Guideline and Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
67
A90208

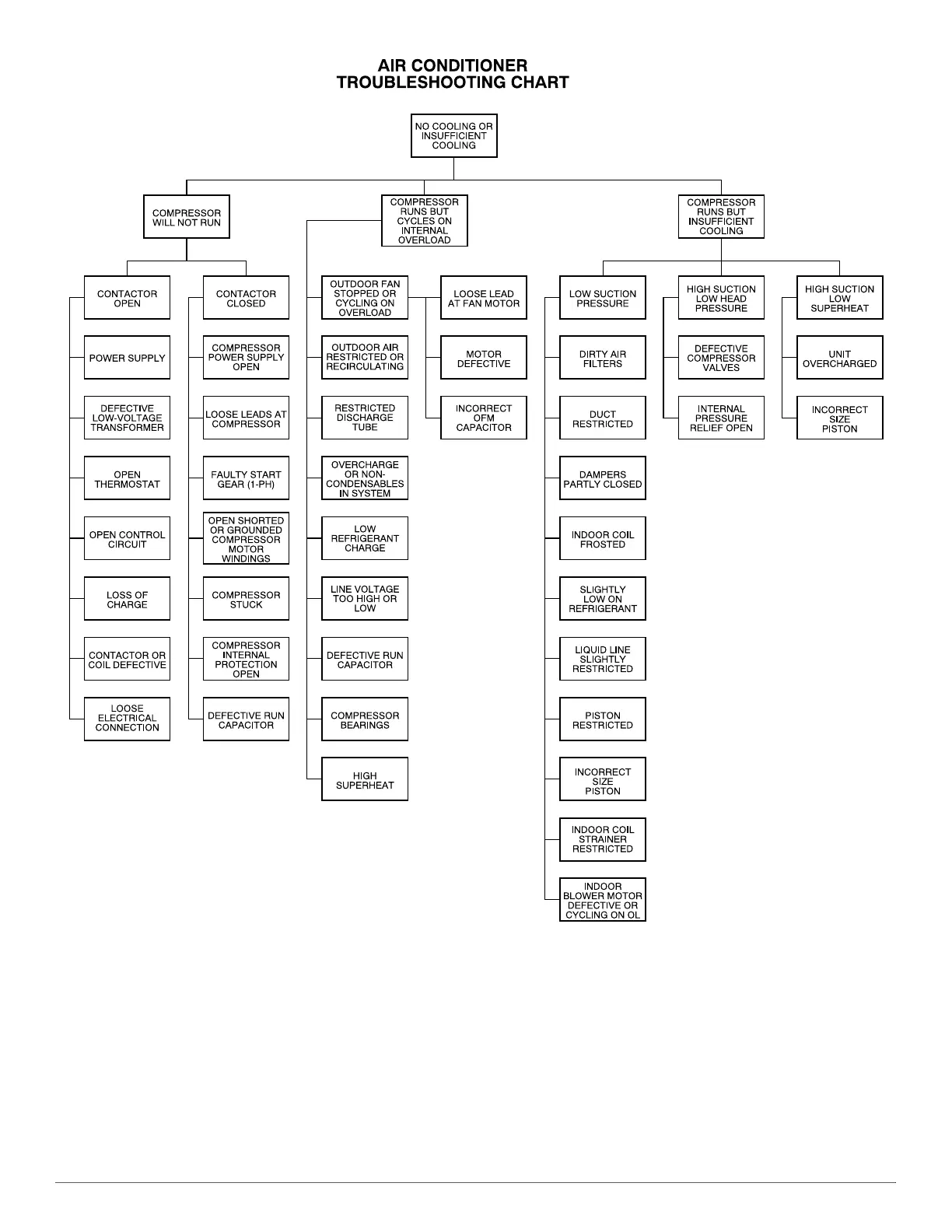

Fig. 48 – Air Conditioner Troubleshooting Chart
