Bryant Base Series - Heat Pump Troubleshooting Heating Cycle; Compressor Will Not Run; No Heating Or Insufficient Heating

Residential Air Conditioners and Heat Pumps Using R-22 and Puron® Refrigerant: Application Guideline and Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
68
A90206

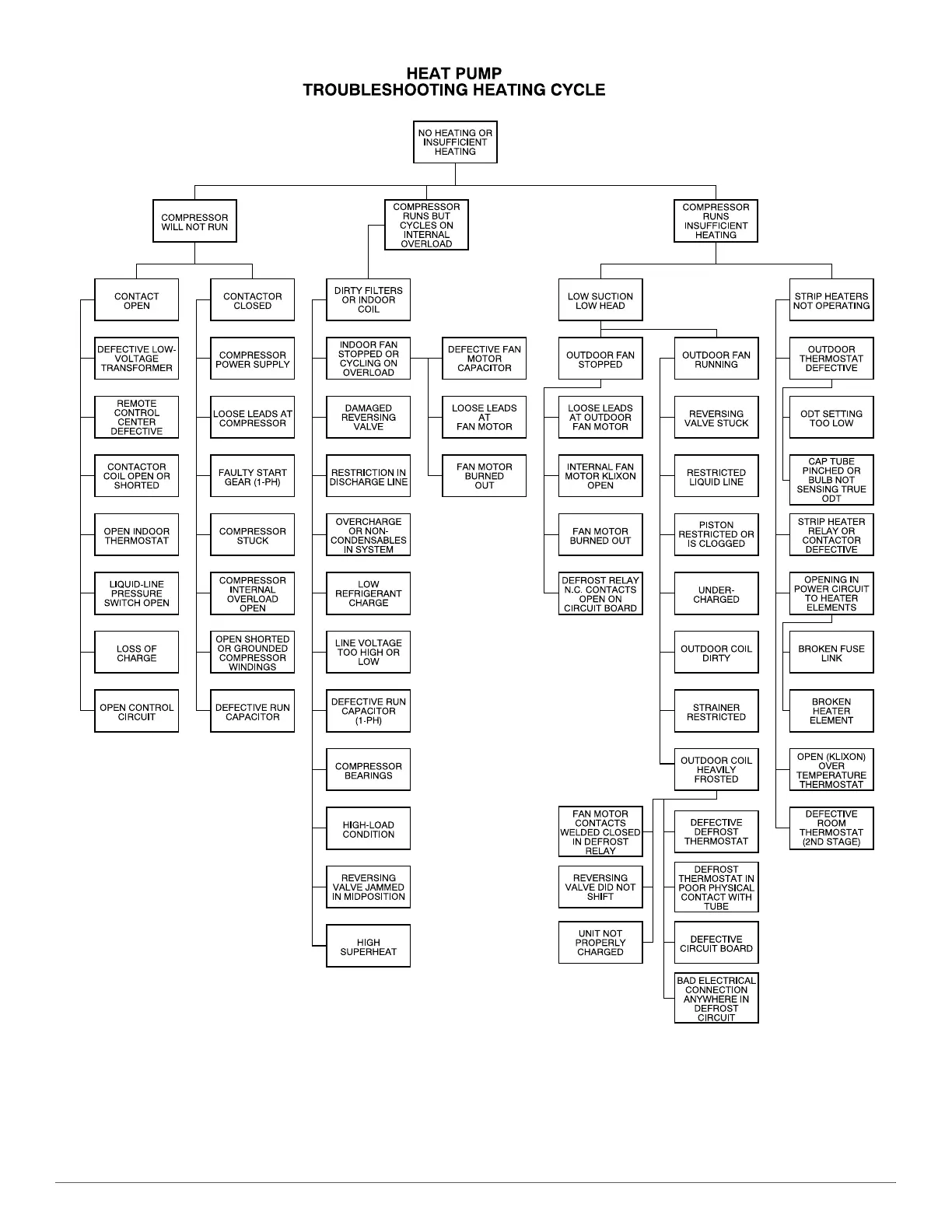

Fig. 49 – Heat Pump Troubleshooting - Heating Cycle
