FEATURES
Smart Diagnostics
•
Self configuring (ease of installation)
•
Easier troubleshooting, providing faster service and repair.
•
Puron®, Environmentally Sound Refrigerant
•
Puron-ready TXV
•
Efficient ECM makes the most of the outdoor unit’s performance capabilities
•
Static pressure-adapting ECM for dependable airflow
•
Large, grooved tube, louvered fin coils
•
Unique cabinet design that meets new stringent regulations for air leakage. Meets requirements of a 2% cabinet leakage rate
when tested at 1.0 inches of static pressure
•
Dedicated refrigerant circuits
•
Efficient, quiet, time tested blower housings and diffusers
•
Sturdy, drainable condensate pans
•
Brass drain connections
•
Tested for condensate disposal in conditions more rigorous than Air Conditioning and Refrigeration Institute requirements
•
Super thick insulation with vapor barrier
•
Galvanized, pre-painted cabinet
•
Installation-flexible, multipoise units
•
Horizontal hanging provisions on cabinet
•
Factory-supplied, cleanable and reusable filter
•
Newly improved filter rack-filter insulation added for an improved air seal.
•
No tools required to service filter
•
5- through 30-kw accessory heaters
•
Easy plug in heater installation
•
Ready for humidifier
•
Entry options for high and low voltage wiring hook-up
•
Simple, 5-amp blade fuse (and a spare) to protect 40 VA transformer
•
Easy coil inspection (removable, snap-in plug on A-coil models)
•
Leak-preventing sweat connections
•
Cabinet construction features innovations designed to prevent cabinet sweating
•
2 through 5 ton coverage

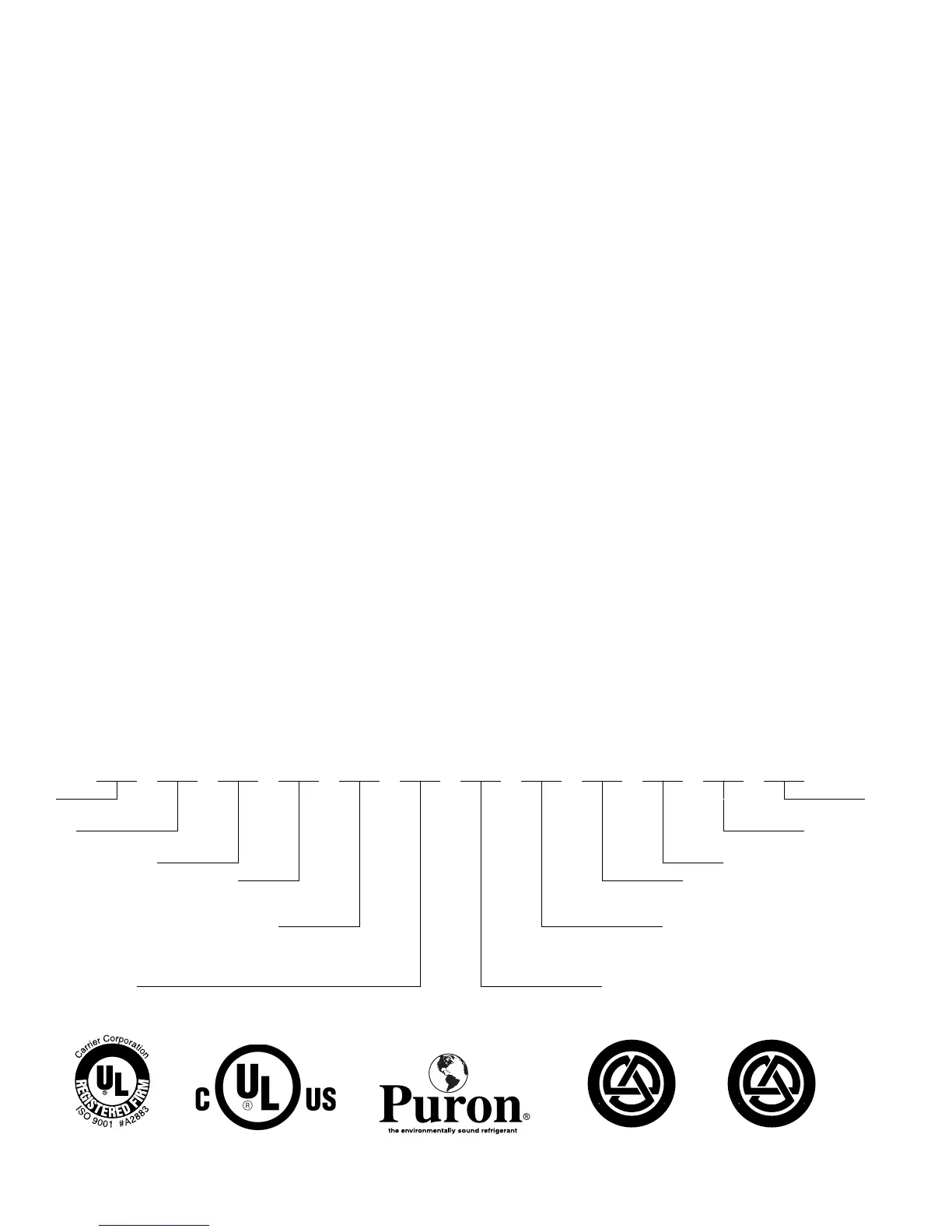

MODEL NUMBER NOMENCLATURE
F E 4 A N F 002 000 A A A A
Fan Coil Variations
Premium Puron Variations
Multipoise Series
Series Variations
Electrical—
208/230/1 Heating Size (kw)
F—Single Piece Cabinet with 1-in. Thick Insulation
B—Both Modular and 1-in. Thick Insulation
Size Designation
002 005
003 006
CERTIFICATION APPLIES ONLY WHEN THE
COMPLETE SYSTEM IS LISTED WITH ARI.
REGISTERED
QUALITY SYSTEM
