4
—
UNIT
SIZE
ABCDE
H
J
In.
In.
In.
In.
In.
In.
In.
FE4A
002
42-11/16
17-5/8
15-3/4
15-5/8
10-3/4
——
003
53-7/16
21-1/8
19-1/4
19-1/8
19-3/16
—
19
005
53-7/16
21-1/8
19-1/4
19-1/8
19-1/2
——
006
59-3/16
24-11/16
22-3/4
22-11/16
25-1/4
34-1/16
—
A02321

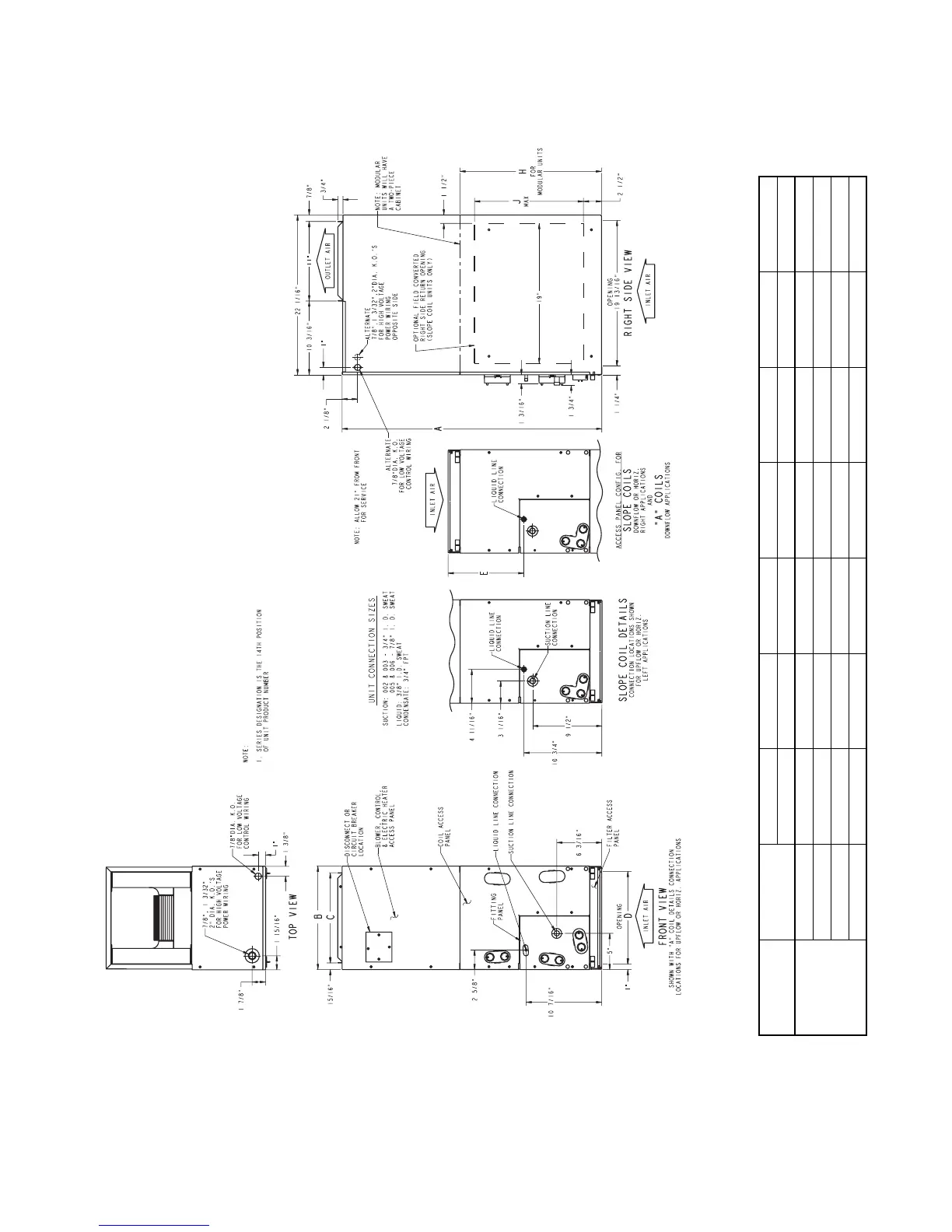

DIMENSIONS
3
5
Table of Contents
Features
2
Model Number Nomenclature
2
Specifications
3
Dimensions
4
Performance Data
6
Airflow Delivery - Cooling, Heating, Electric Heating Modes
6
Airflow Performance - Available External Static Pressure
6
Minimum CFM for Electric Heater Application
7
Acceptable Duct Conditions
8
Cooling Capacities (Mbtuh)
9
SHC Correction Factor Table
10
Estimated Sound Power Level (Dba)
10
Airflow Performance Correction Factors
11
Factory-Installed Filter Static Pressure Drop (In. Wc)
11
Air Delivery Performance Correction Component Pressure Drop (In. Wc) at Indicated Airflow (Dry to Wet Coil)
11
Accessory List
12
Accessory Kits Description. Suggested and Required Use
12
Electrical Data
13
Units Without Electric Heater
13
Accessory Electric Heaters
13
Electric Heater Internal Protection
13
Electric Heater Electrical Data
14
Field Multipoint Wiring of 24-And 30-Kw Single Phase
14
Matched System Diagram
16
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Bryant fe4anf005 and is the answer not in the manual?
Ask a question
Bryant fe4anf005 Specifications
General
Brand
Bryant
Model
fe4anf005
Category
Air Handlers
Language
English
