Page #2 background imageLoading...
Page #2 background image
2
2
3
10
8
1
4
57 9 6
A05349

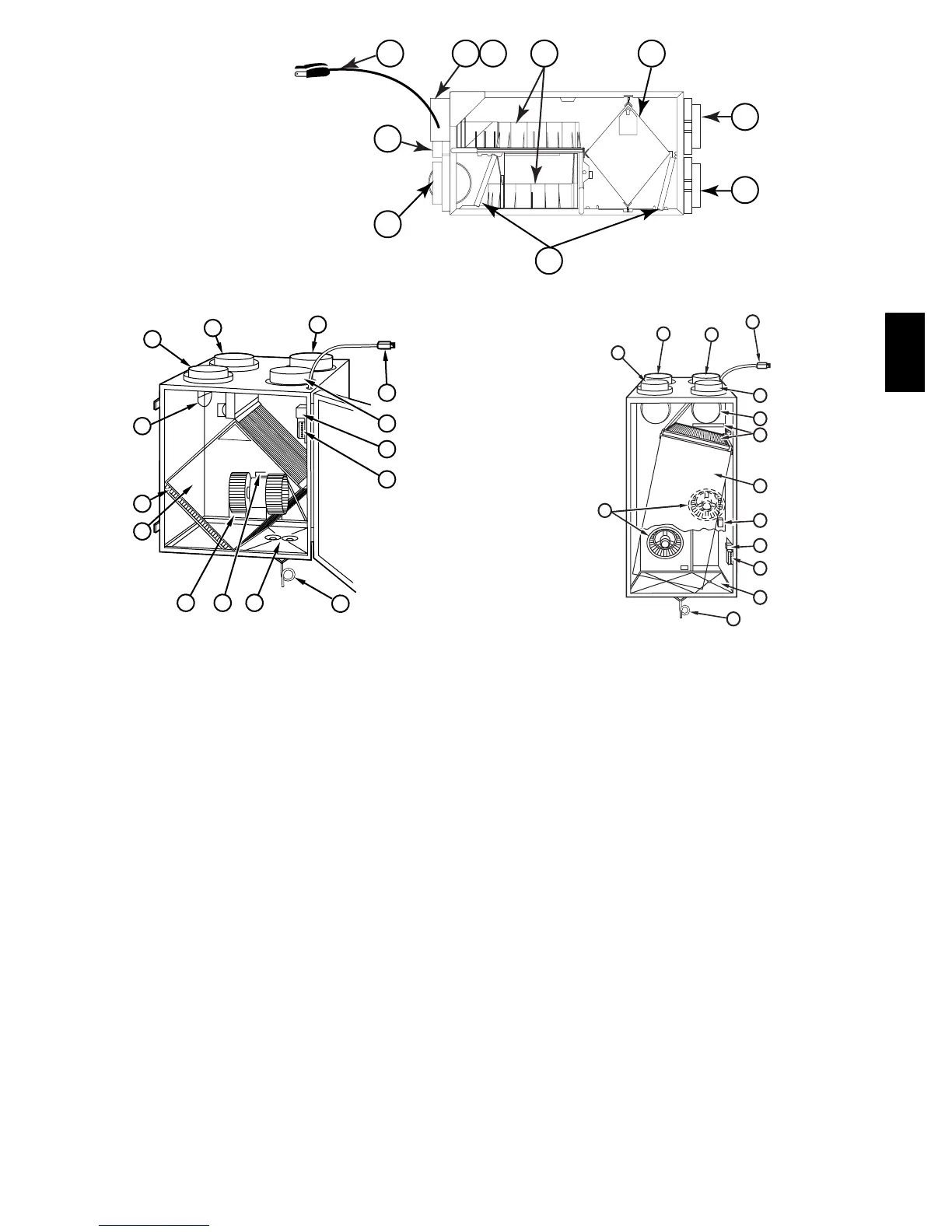

Fig. 4 --- HRVBBLHA Conventional Horizontal Unit
4
5
10
3
2
1
11
13
7
14
12
8 9
6
A98408
F i g . 5 --- H R V B B S V U C o m p a c t U n i t
COMPONEN T DESCRIPTION
The following listed items are components of HRVBBLHA
(See Fig. 4).
1. Stale air return from building connected to return --- air
duct system.
2. Fresh--- air intake connected to outdoor air inlet hood.
3. Exhaust--- air connected to outdoor air exhaust hood.
4. Mechanical filters trap dust contained in the air.
5. Heat recovery core is a cross---flow type. The core
transfers heat between the 2 air streams.
6. Blowers bring in fresh---air from outside and exhaust
stale---air to outside.
7. Electronic control circuit ensures proper unitoperation.
8. Fresh --- air supply from HRV connected to return ---air
d u c t o f f o rc e d --- a i r s y s t e m .
9. Terminal connector block for wiring wall and timer
contorls.
10. Electrical cord connects to standard 115--- v outlet.
1
12
3
14
2
4
6
11
13
8
9
10
7
5
A98409
Fig. 6 --- HRVBBLVU Compact High ---Efficiency Unit
The following listed items are components of HRVBBSVU
and HRVBBLVU (See Fig. 5 and 6).
1. Stale---air return from building connected to return---air
duct system.
2. Fresh--- air intake connected to outdoor air inlet hood.
3. Exhaust--- air connected to outdoor air exhaust hood.
4. Dampers are used to control air exchange with outdoor
air during defrost mode.
5. Mechanical filters trap dust contained in the air.
6. Heat recovery core is either a cross---flow type for
compact models, or a counter ---flow type for
high --- efficiency models. The core transfers heat
between the 2 air streams.
7. Blowers bring in fresh---air from outside and exhaust
stale---air to outside.
8. Capacitor required for motor operation.
9. Condensation tray collects condensate from heat
recovery core.
10. Drainage tubes connect to sleeved grommets.
11. Electronic control circuit ensures proper unitoperation.
12. Fresh air supply from HRV connect to return ---air duct
o f f o r c e d --- a i r s y s t e m .
13. Terminal connector block for wiring wall and timer
controls.
14. Electrical cord connects to standard 115--- v outlet.
HRV
