Manual EVoBASIC v.7 59 / 80

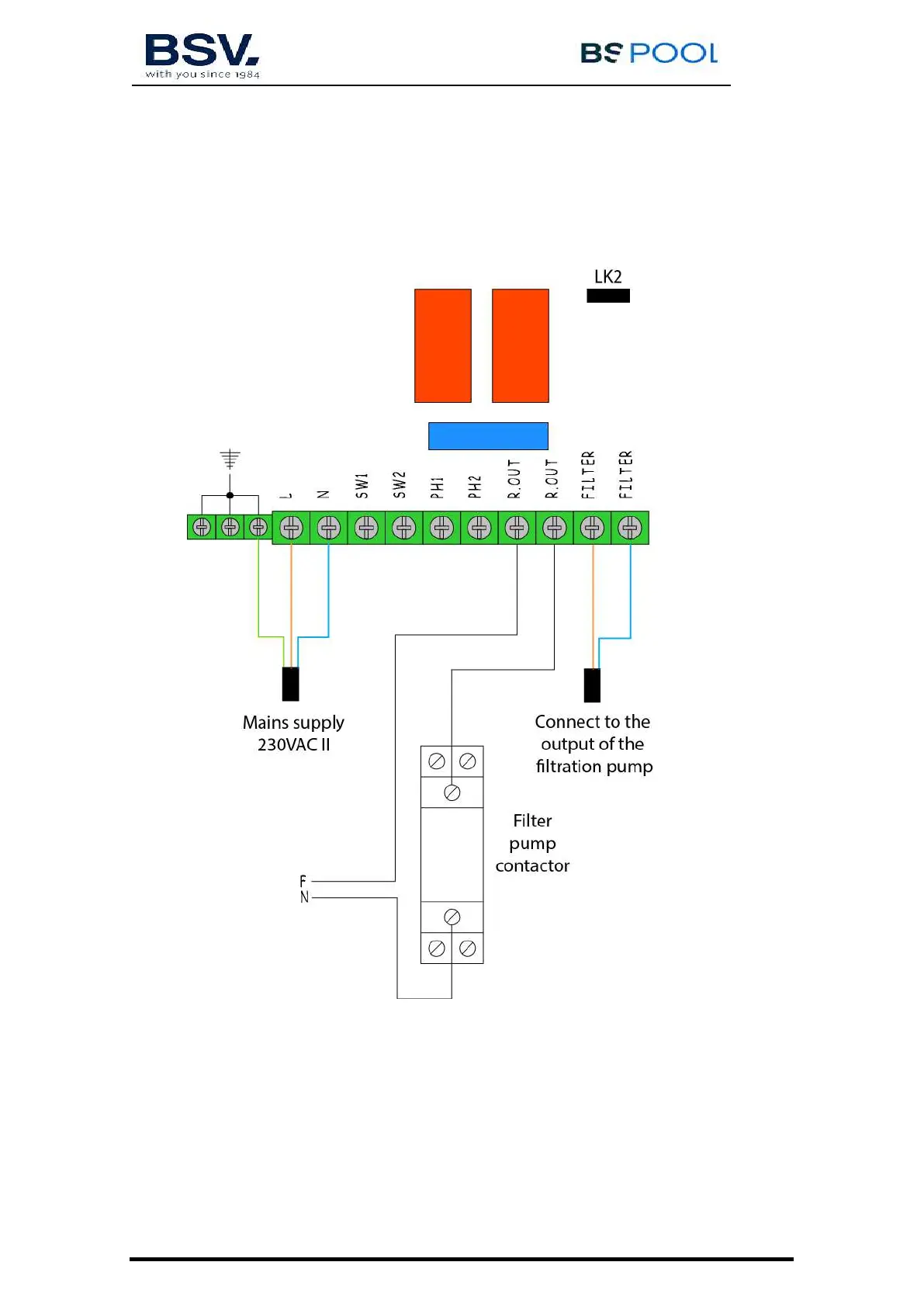

3.3.2.3- Filtering control through the auxiliary relay
The filtering pump can be controlled through the auxiliary relay,
following this diagram:
Please remember that the equipment should be configured in "start-stop"
mode, as detailed on chapter 3.3.3.1
