3.3.2.2- Programming the spotlights of the pool through the auxiliary
relay

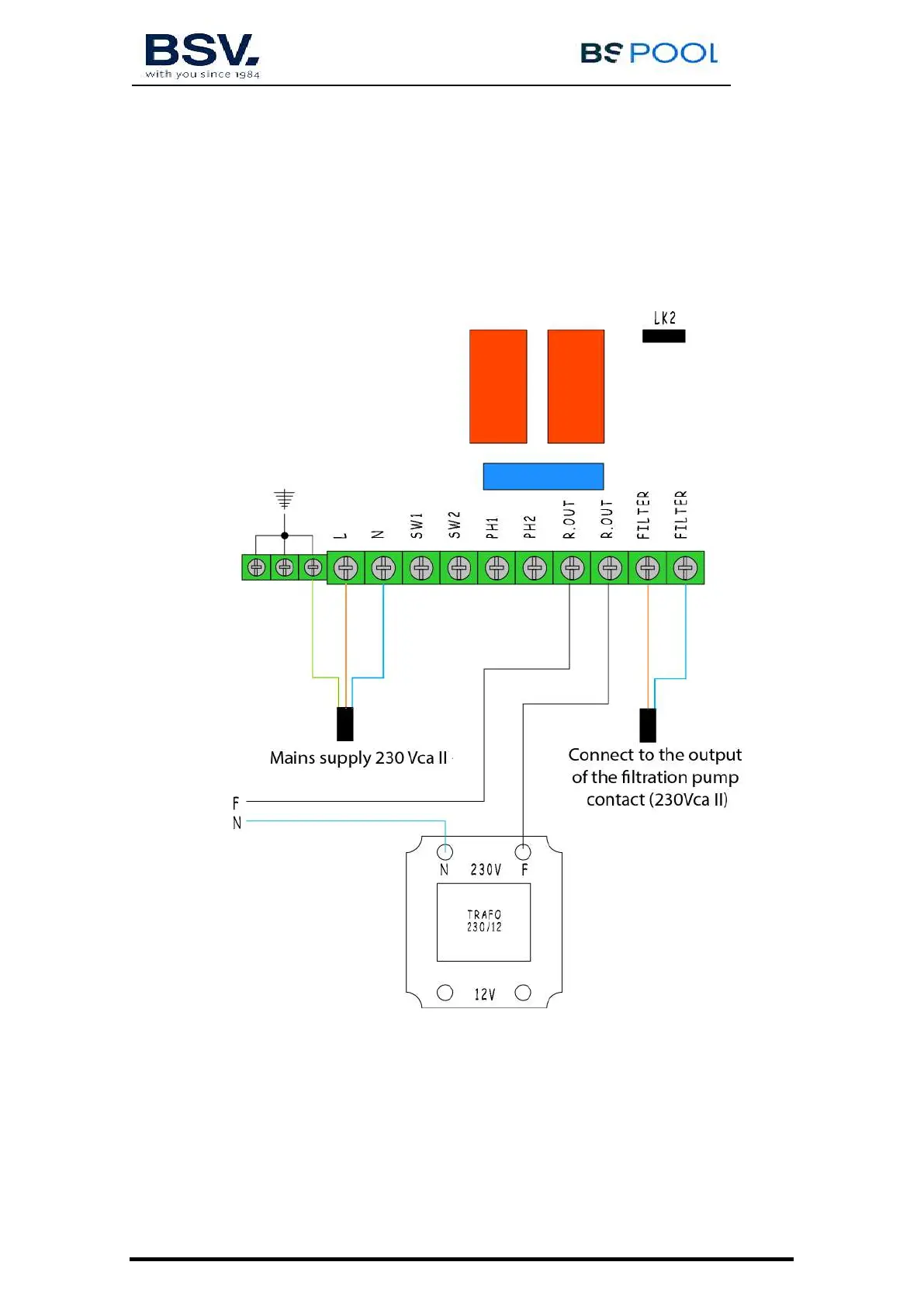

The following figure gives an example of use of the auxiliary relay
incorporated in the EVO series equipment. Lighting of your swimming
pool can be programmed to switch on and off, following this diagram:
Attention: Never exceed 12A when using the auxiliary relay. For higher
currents, supplement the circuit with a contactor.
Remember that the relay is potential free, and therefore the circuit
should be supplied externally.
