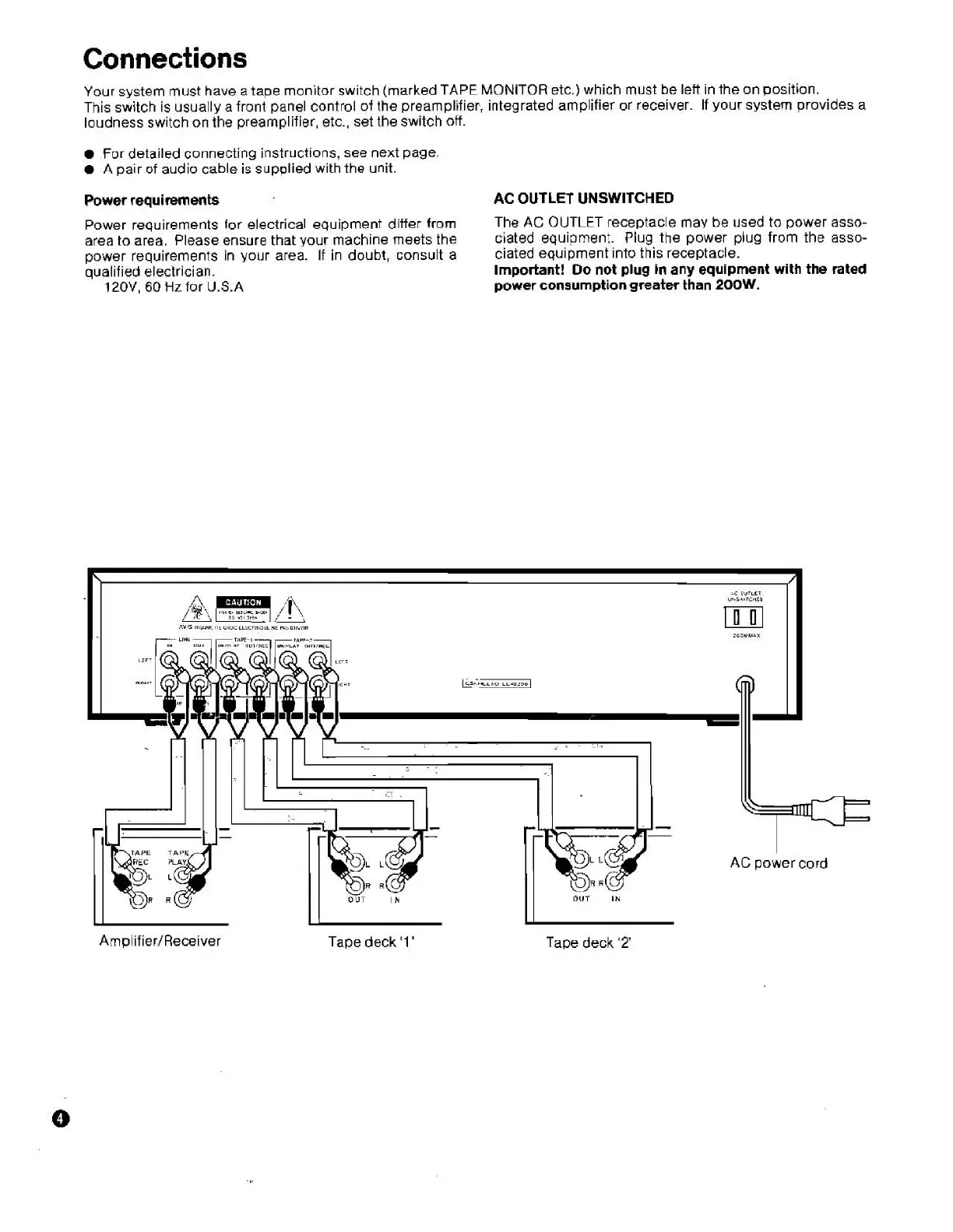

Connections
Your system must have a tape monitor switch (marked TAPE MONITOR etc.) which must be left in the on position.
This switch is usually a front panel control of the preamplifier, integrated amplifier or receiver. If your system provides a
loudness switch on the preamplifier, etc., set the switch off.
For detailed connecting instructions, see next page.
A pair of audio cable is supplied with the unit.
Power requirements
AC
OUTLET UNSWITCHEO
Power requirements for electrical equipment differ from
The
AC
OUTLET receptacle may be used to power asso-
area to area. Please ensure that your machine meets the
ciated equipment. Plug the power plug from the asso-
power requirements in your area. If in doubt, consult a
ciated equipment into this receptacle.
qualified electrician.
Important! Do not plug in any equipment with the rated
120V,
60
Hz
for U.S.A
power consumption greater than 200W.
khn~~rro
~~cwril
AC power cord
Arnplifier/Receiver Tape deck
'1
'
Tape deck
'2'
To Next Page
