2.3.2 DIP Switch
Table 2.3.2 Setting of communication address
Address
Dial Switch Position
Address
Dial Switch Position
1
2
3
4
1
2
3
4
1
ON
OFF
OFF
OFF
6
OFF
ON
ON
OFF
2
OFF
ON
OFF
OFF
7
ON
ON
ON
OFF
3
ON
ON
OFF
OFF
8
OFF
OFF
OFF
ON
4
OFF
OFF
ON
OFF
9
ON
OFF
OFF
ON
5
ON
OFF
ON
OFF
10
OFF
ON
OFF
ON

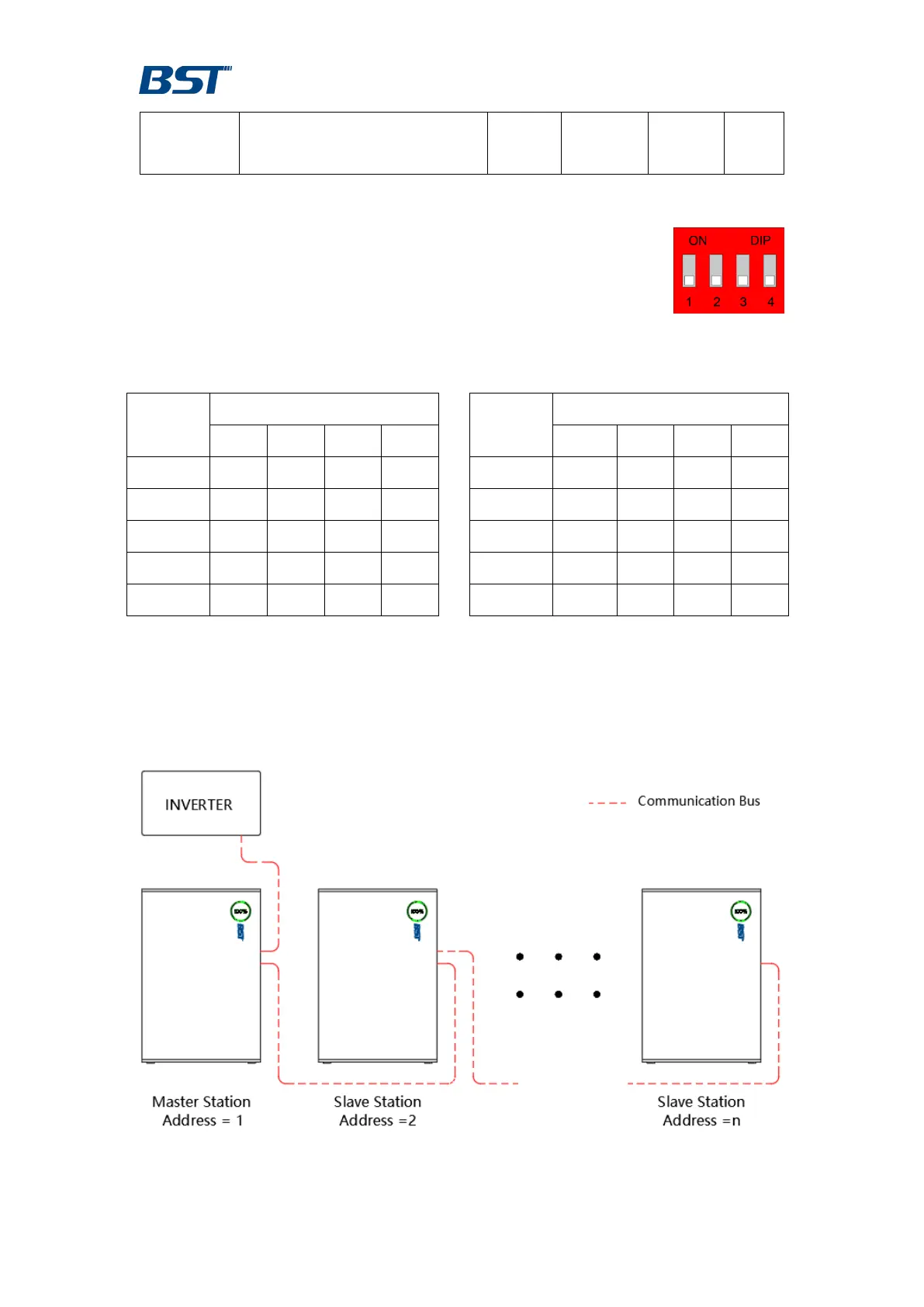

The communication address of each equipment is unique and the one
establishes communication with the inverter is the master station which
communication address should be set as 1. The rest are slave stations whose
communication addresses are set as 2 to 10. As shown in the figure below:
The positions of DIP switches are 1, 2, 3, and 4 from left
to right. The dial down is OFF, and the dial up is ON.
As shown in the right figure:
