BST Power (Shenzhen)
Limited

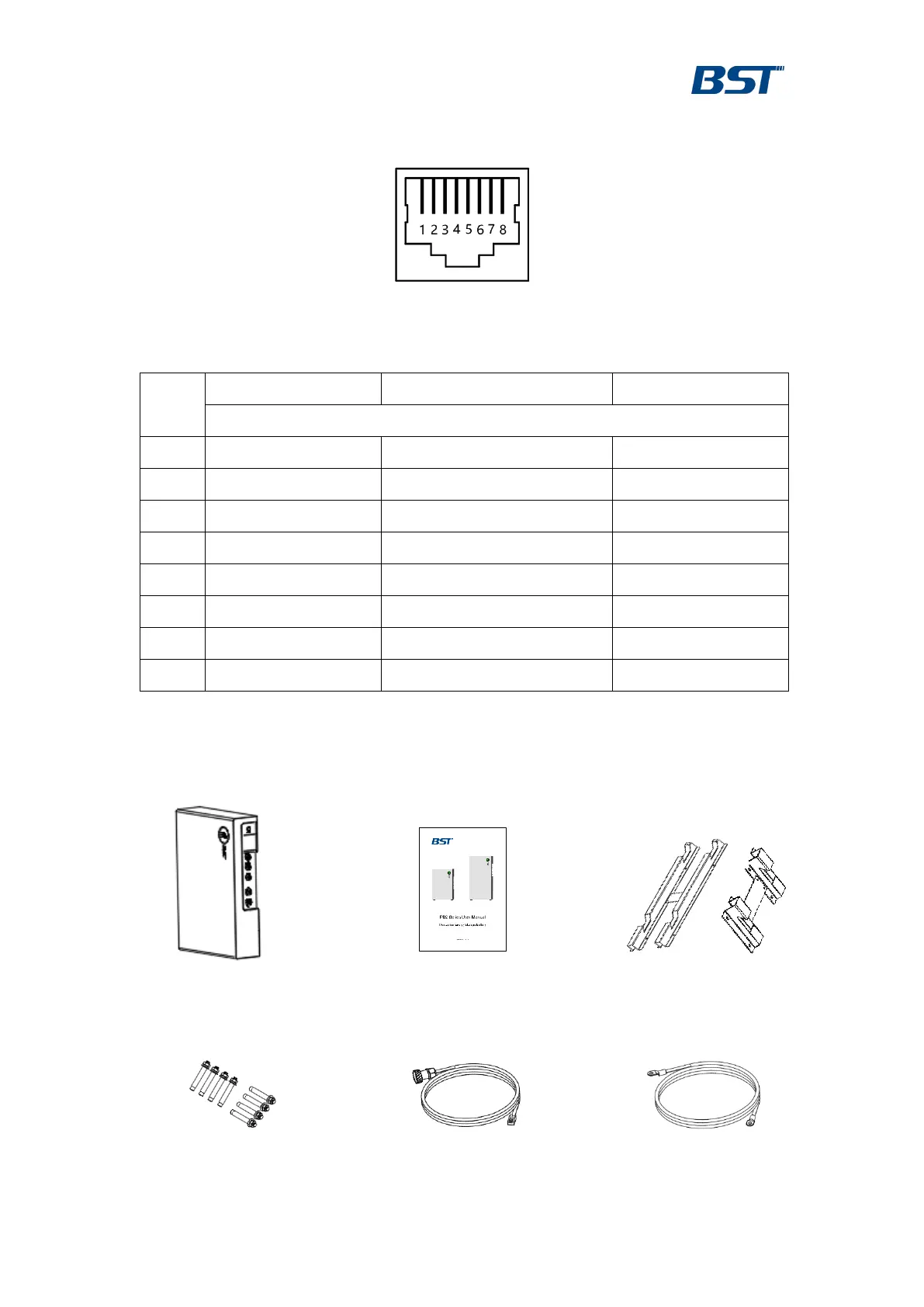

2.3.3 RJ45 Port
3 Packing List
3.1 Packing list of PB2-5.1/ PB2-10.2
0
Pin
RS485-1
RS485-2/CAN-1/CAN-2
RS485-3
Definition
1
RS485-B
CAN-1 H
RS485-A
2
RS485-A
CAN-1 L
RS485-B
3
GND
CAN-2 H
NC
4
NC
CAN-2 L
NC
5
NC
RS485-A
NC
6
GND
RS485-B
NC
7
RS485-A
RS485-A
RS485-A
8
RS485-B
RS485-B
RS485-B
RJ45 port of battery
PB2-5.1/PB2-10.2 User Manual Mounting Bracket
Screw Communication Cable Grounding Wire
Table 3.3.4 Definition of RJ45 Port Pin
PB2-5.1 PB2-10.2
