User Manual
23
bracket of PB2-10.2 and the ground.

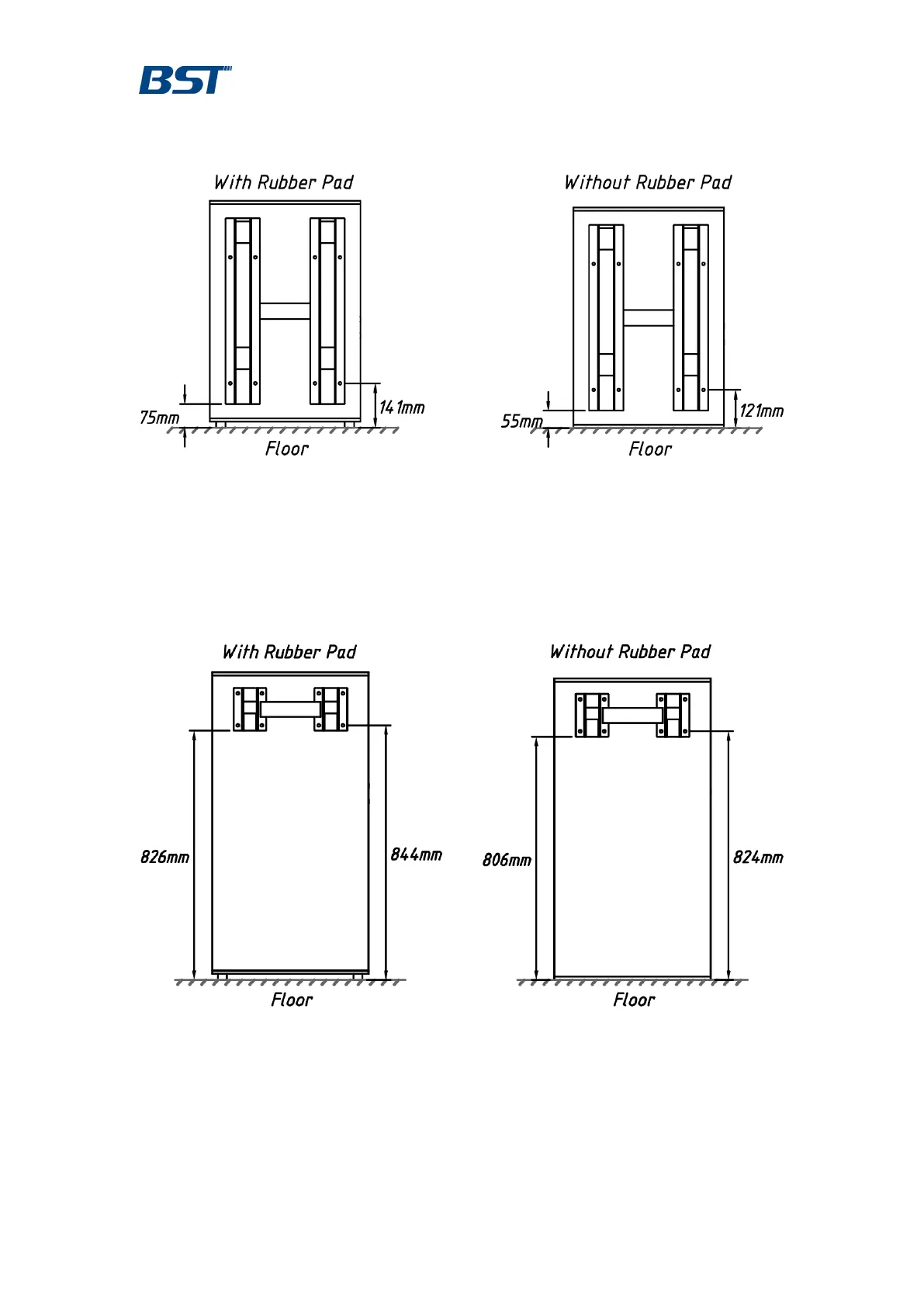

Refer to the following figure for the maximum distance between the
mounting bracket of PB2-10.2 and the ground.
4. Select the installation position of the mounting bracket and mark the
position to be
drilled with a pencil.
Figure 4.4.2.a Mounting bracket of PB2-5.1
Figure 4.4.2.b Mounting bracket of PB2-10.2
