GENERAL DESCRIPTION
The Radio Tuner is a device which can tune and save FM radio channels. It uses the
Sound System BUS to make the signal available to the amplifi ers.
INTRODUCTION

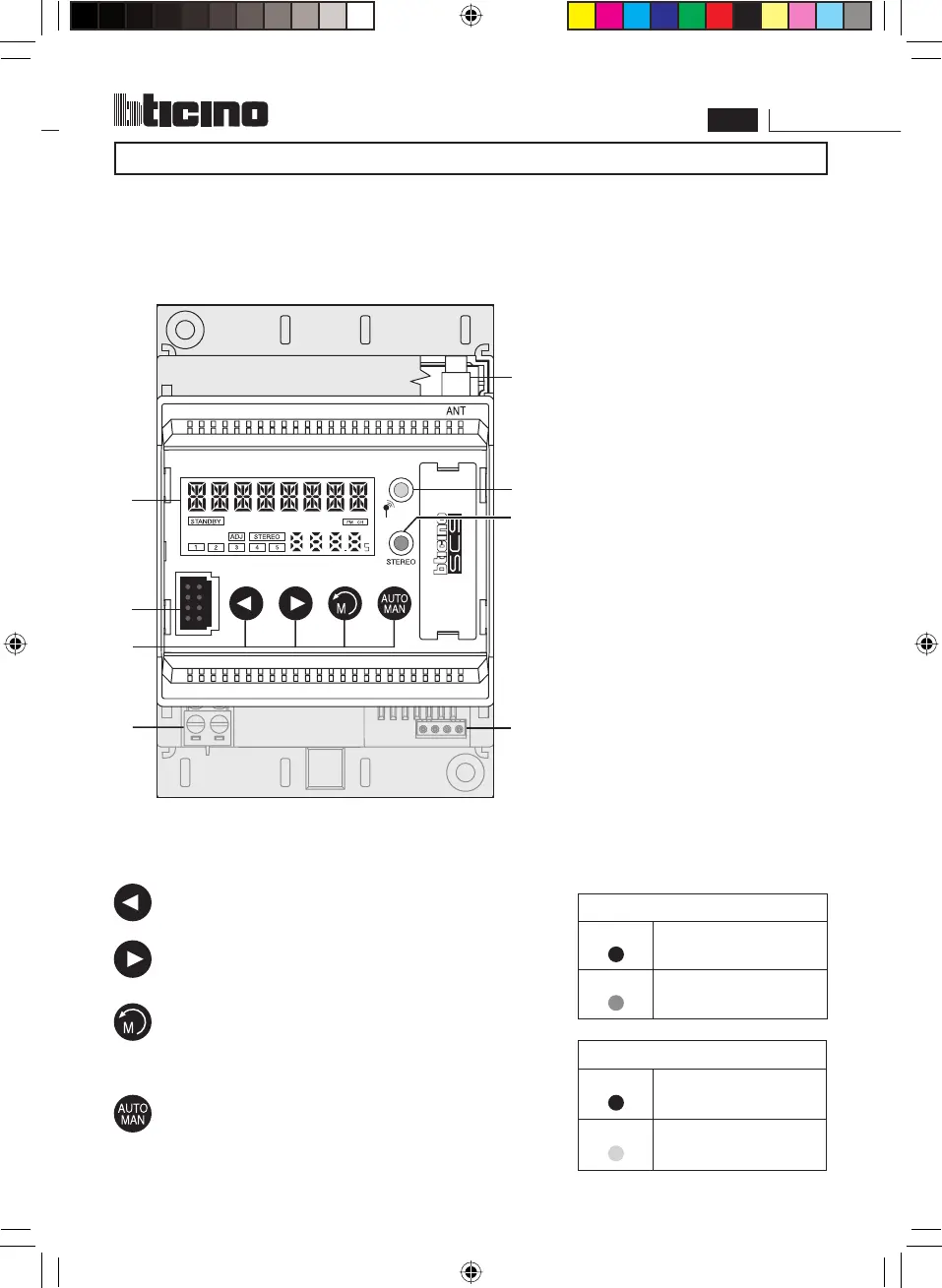

1 Display
2 8-pole connector for sound
system BUS
3 Pushbuttons
4
Antenna connector (F500
COAX) or wire antenna
(F500)
5 Mono/stereo signal LED
6 Signal reception LED
7 2-pole connector for sound
system BUS
8 Confi gurator socket
MONO/STEREO SIGNAL LED (5)
OFF
Mono signal
RED
Stereo signal
LED INDICATION TABLES
Decreases the tuned frequency
Increases the tuned frequency
Select the saved stations (quick press)
or save the selected station (long
press)
Selects the frequency search mode:
manual or automatic
LEGENDA
PUSHBUTTON FUNCTIONS
SIGNAL RECEPTION LED (5)
OFF
Poor signal
reception
GREEN
Good signal
reception
1
2
3
5
6
7
8
4
