Bticino F500 - Connection to the SCS BUS Diagram; Configurators; Connection to the Sound System BUS

item F500 - F500 COAX
36
BUS
S1
S2
M
230V~
230Va.c.

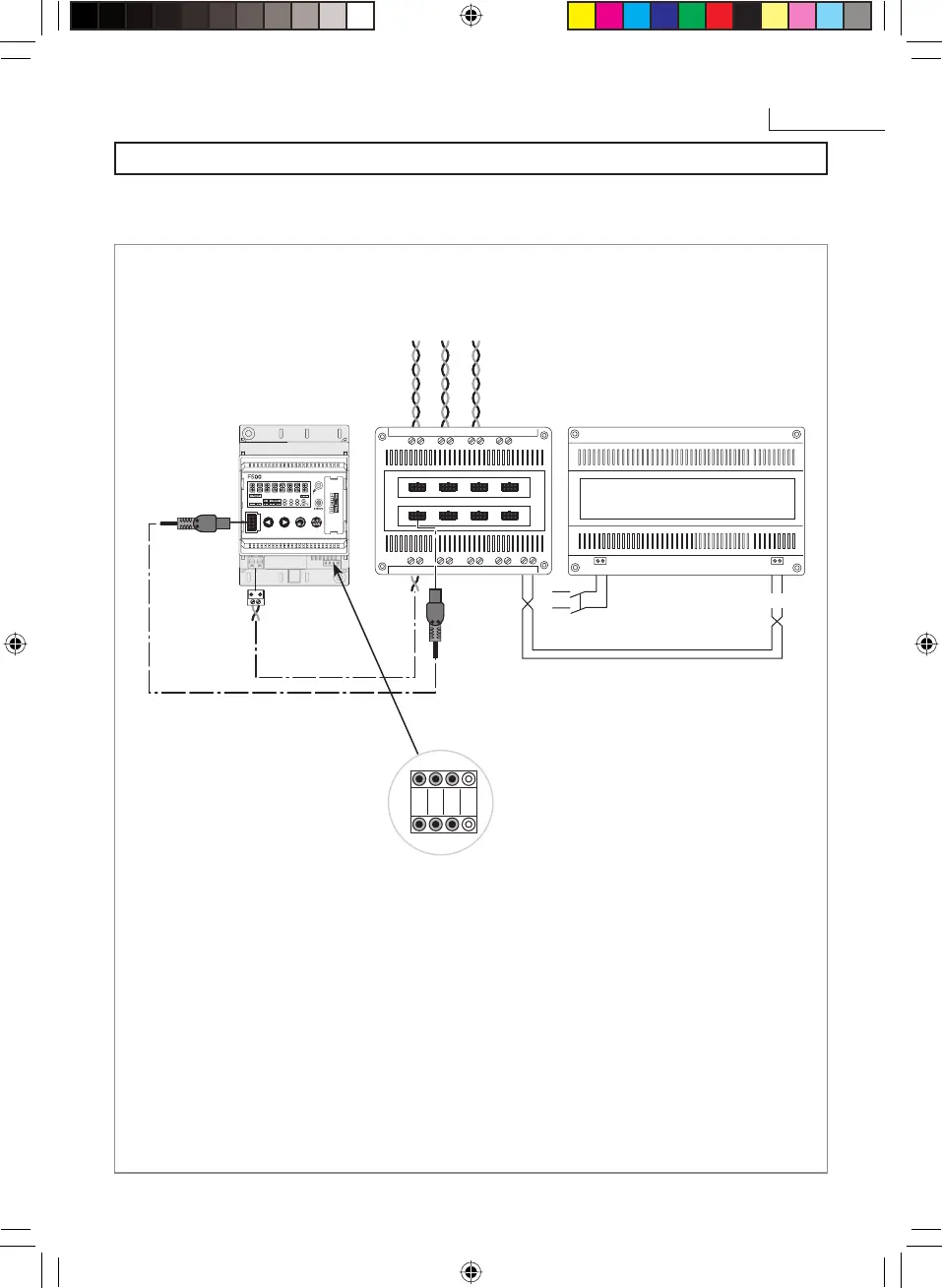

CONNECTION TO THE SCS BUS DIAGRAM
A
To the 2-pole connector by means of twisted pair item 336904
A
B
Tuner
item F500
Audio/video
node item
F441
Power supply
item 346000
S1 = Local address of the Radio
Tuner source
S2 = Free
M = Free
CONFIGURATORS:
To the front fl at 8-way connector by means of cable item L4668 BUS/60
or item L4668 BUS/45
B
CONNECTION TO THE SOUND SYSTEM BUS
The Radio Tuner can be connected by means of the audio/video Node device
item F441, in two alternative ways:
To the Sound System
amplifi ers
INTRODUCTION
