5.4 Assembling the BUCHI distillation system
The following devices are typically used in combination:
3
4
5
1
3
4
5
1

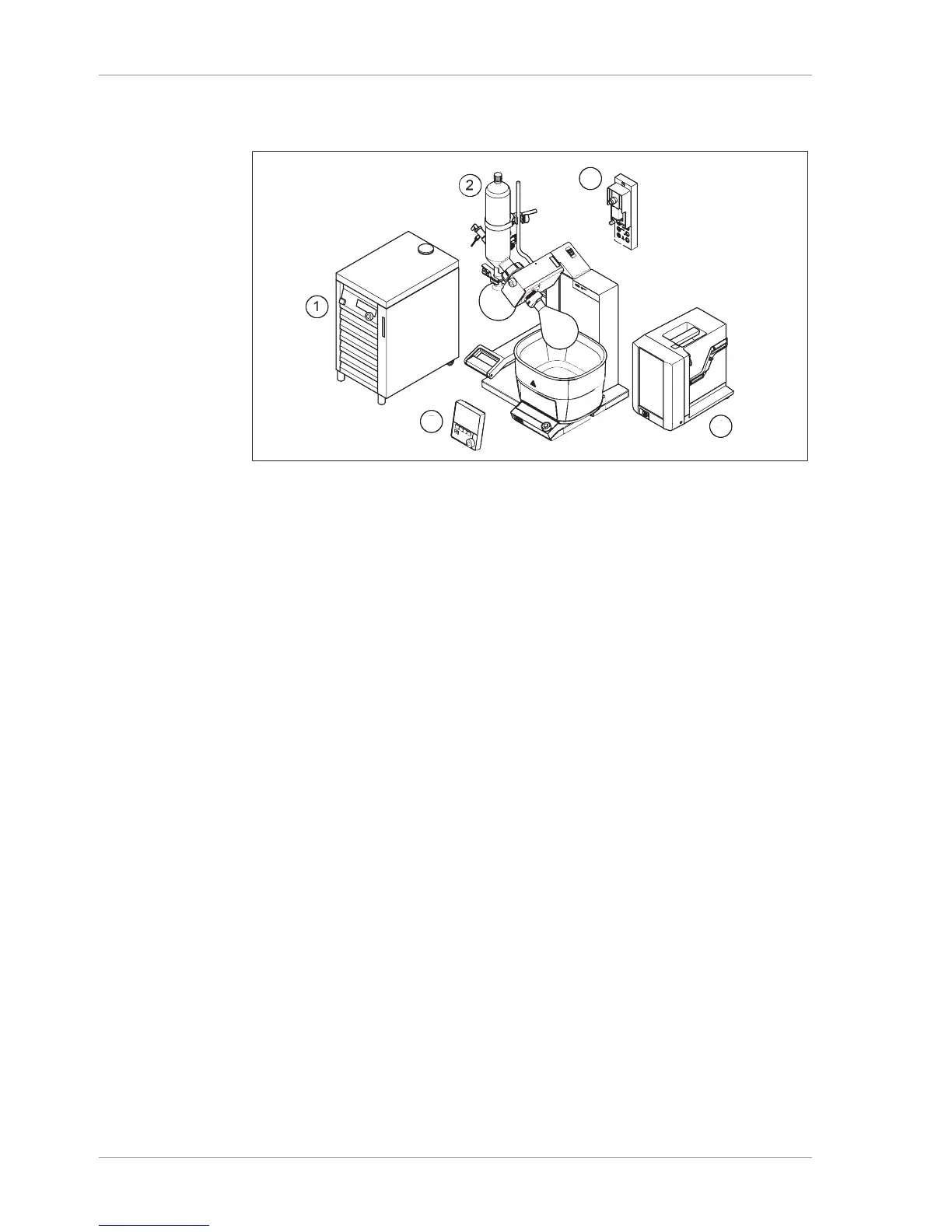

Fig.11: Typical application (communication connections)
1 Recirculating Chiller F-3xx 4 Vacuum Pump V-300
2 Rotavapor R-300 with heating bath
B-300
5 Interface I-300
3 VacuBox
Data communication between the BUCHI laboratory equipment takes place via the
communication ports. See Chapter5.4.1 "Overview: setting up communication con-
nections", page23 and Chapter5.4.2 "Connecting the communication cable to the
F-3xx", page24.
The coolant circulates around the distillation system through a separate tubing sys-
tem. See Chapter5.4.3 "Connecting the coolant tubing to the F-3xx", page25 and
Chapter5.4.4 "Overview: setting up coolant tubing connections", page26.
