Buchi V-700 - Rear View

4 Description of function
17
V-700/710 Operation Manual, Version E
4.1.3 Rear view
4
4
5
6
3
2
7
8
9
1
10
10
a Power supply
b Fan for pump cooling
c Pump outlet
d Knurled screws
e Gas ballast
f Pump inlet
g
Mini-DIN connection (connection to V-800/805 or
V-850/855 on/off mode)
h
RS-485 connection to V-801/802/850/855, R-210/215
or F-1XX
i
RS-485 connection to V-801/802/850/855, R-210/215
or F-1XX
j Allen key in two different sizes

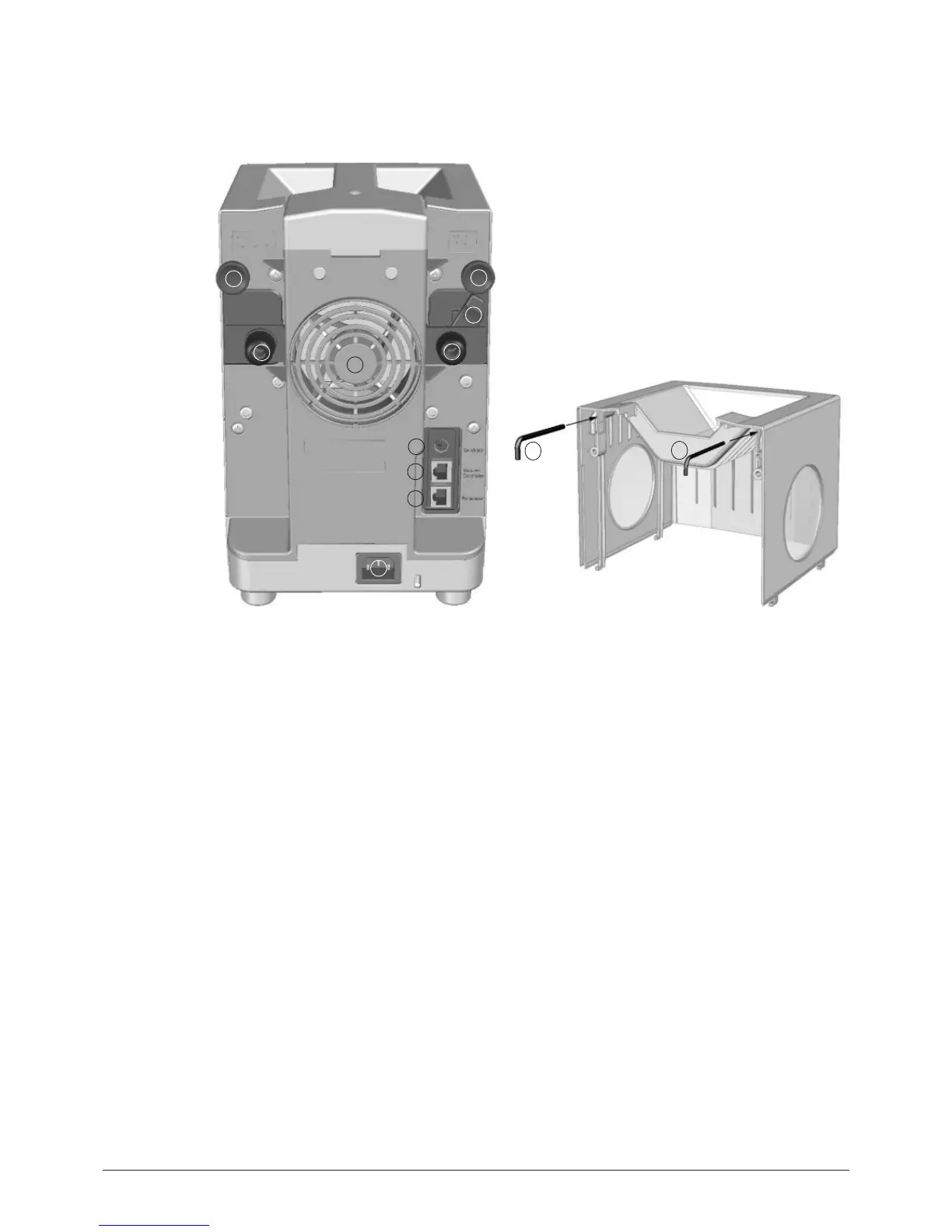

Fig. 4.2: Rear view of the V-700 with connections
