5.9 System pump with two controllers on one pump
Option 1

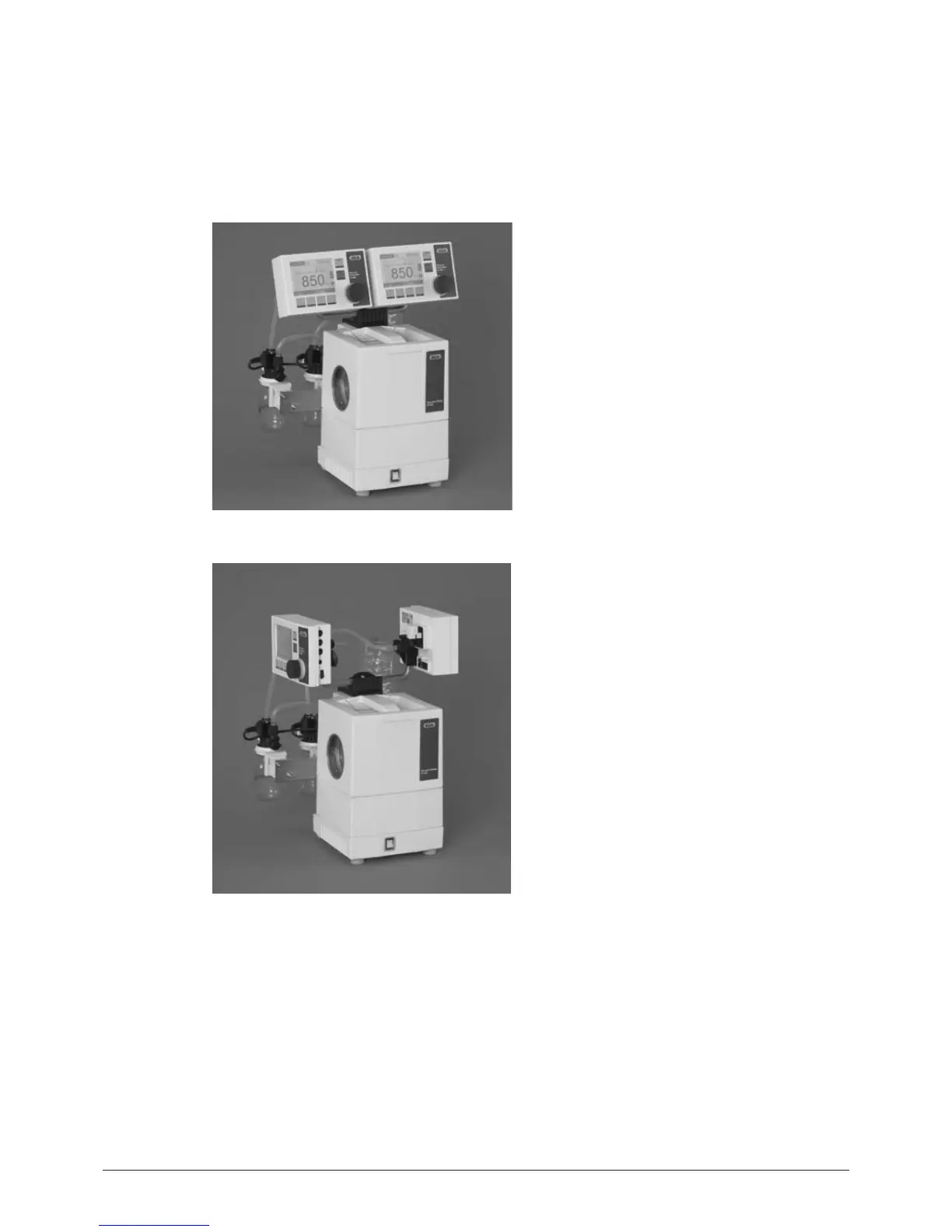

Option 1 is a variant with both controllers acces-
sible from one side. This configuration offers
vacuum connections on the left and right hand
of the pump, connected to the appropriate
controller.
Both controllers can be operated from the front.
Option 2
Option 2 is a variant with the controllers beeing
positioned in the opposite of each other. This
configuration is designed to be placed i.e. in the
middle of a working table, allowing access from
two different sides. The vacuum load is placed
aside of each controller, providing best acces-
sibility.
The controllers can be operated from two sides.
