Buchi V-700 - Vacuum Connection to the Vacuum Controller

5 Putting into operation
31
V-700/710 Operation Manual, Version E
• Introduce the Woulff bottle to the holder.
• Screw the GL-14 nut of the Woulff bottle to the GL-14 thread
of the pump inlet. It may be necessary to pull the tube a little
until it fits.
NOTE
If no vacuum controller is connected, close the connections at
the Woulff bottle, which are not in use, with screw caps.

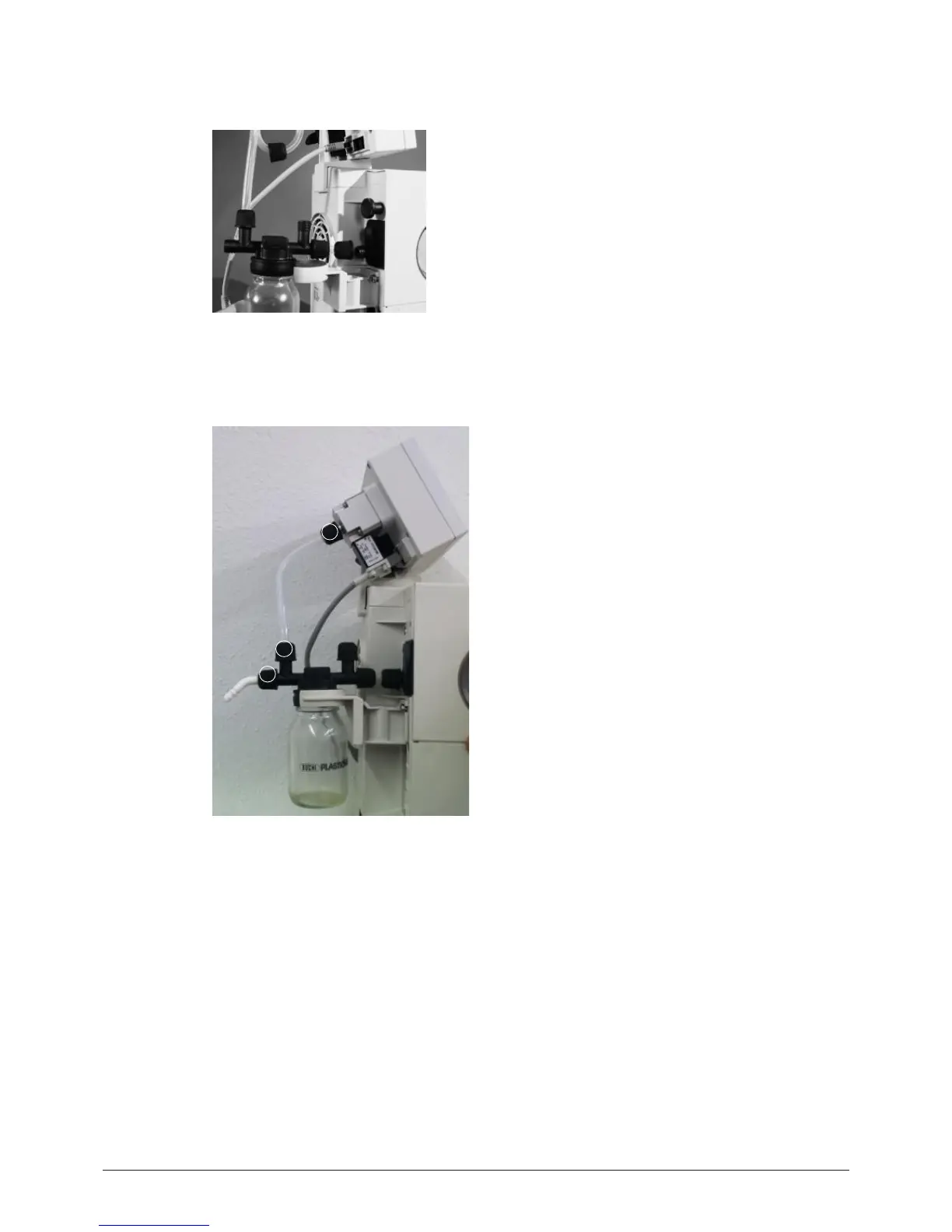

Fig. 5.5: Installing the Woulff bottle
5.6 Vacuum connection to the vacuum controller
a Vacuum connection to vacuum controller
b Vacuum connection to Rotavapor or other
instrument
Fig. 5.6: Vacuum connection to the vacuum controller
