5.4 Silencer or secondary condenser
5.4.1 Secondary condenser
To install the secondary condenser, proceed as follows:
• Screw the corresponding holder to the pump.
NOTE
You can use the allen key integrated in the top cover of the
pump, see also Fig. 4.2.
• Introduce the secondary condenser into the holder.
• Pull the GL-14 cap forward and screw it to the GL-14 thread
of the pump outlet.

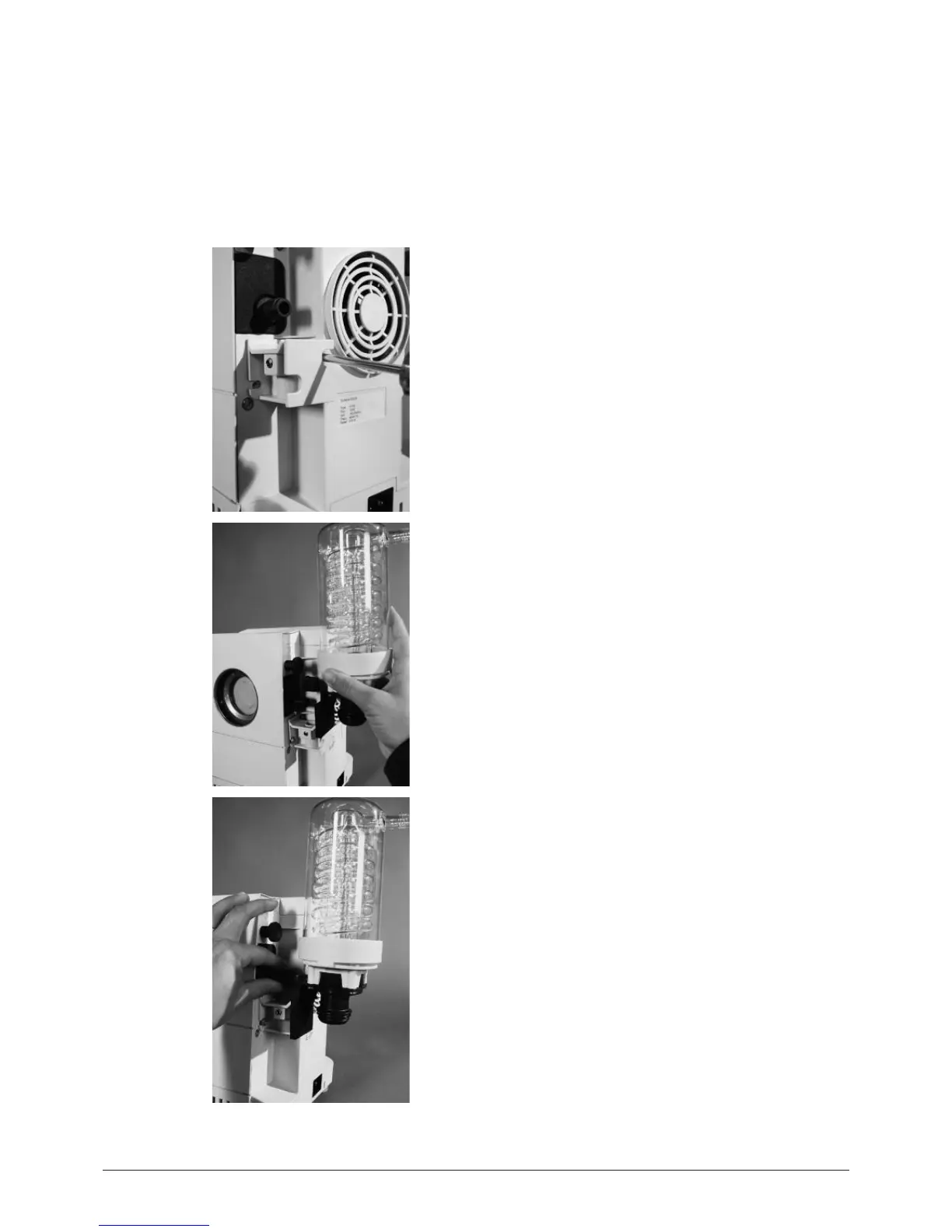

Fig. 5.3: Secondary condenser
