5.8 System pump with two controllers on two Rotavapor

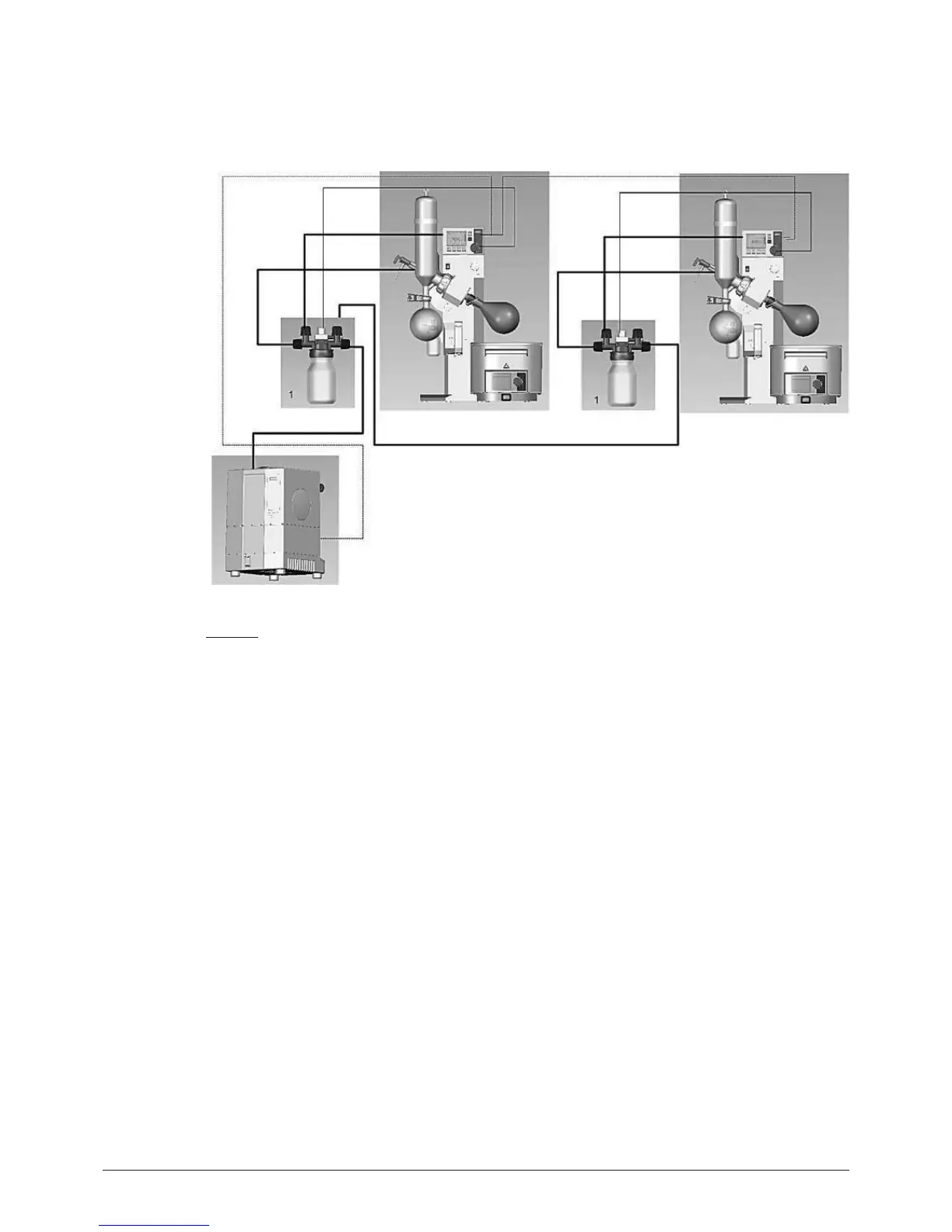

Fig. 5.8: Complete system connection with two Rotavapors
Legend:
1: Valve unit
Connections:
Thick line: Vacuum connections
Dotted line: Electrical connection vacuum controller (AS/SB) / vacuum controller (AS/SB) vacuum
pump (switch box) with cable 38010
Thin line: Electrical connection valve unit / vacuum controller (VALVE)
