The following installation instruction is valid for both variants, although the controller holders of the
V-700 and the V-710 model are different in design. The update kit contains all necessary hoses in a
universal set.

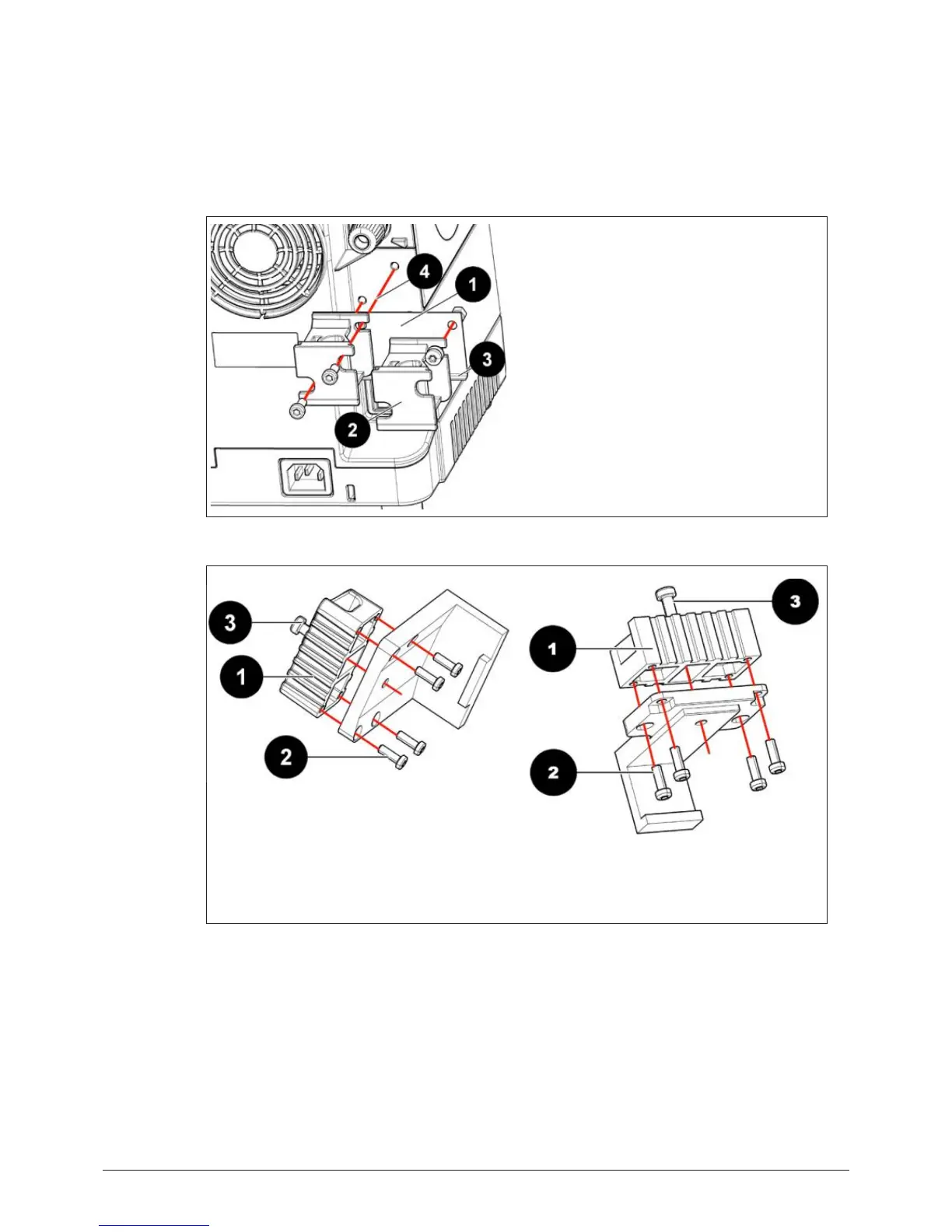

• Remove the original valve holder from the pump
housing (two allen screws).
• Take the metal base plate (1) from the installation
kit and make sure its fold (3) is located down-
wards, with the edge towards you.
• Mount the valve holder (2) with two allen screws
from the kit to the rights side of the base plate.
• The round shape of the holder is to be placed
downwards, towards the fold of the base plate.
• Finally, use the original valve holder to fix the new
assembly at the pump housing (4).
Use the four screws (2) to fix the pump holder onto the controller holder (1). With the long center screw (3) the
whole adapter can be fixed at the pump.
