Cabling

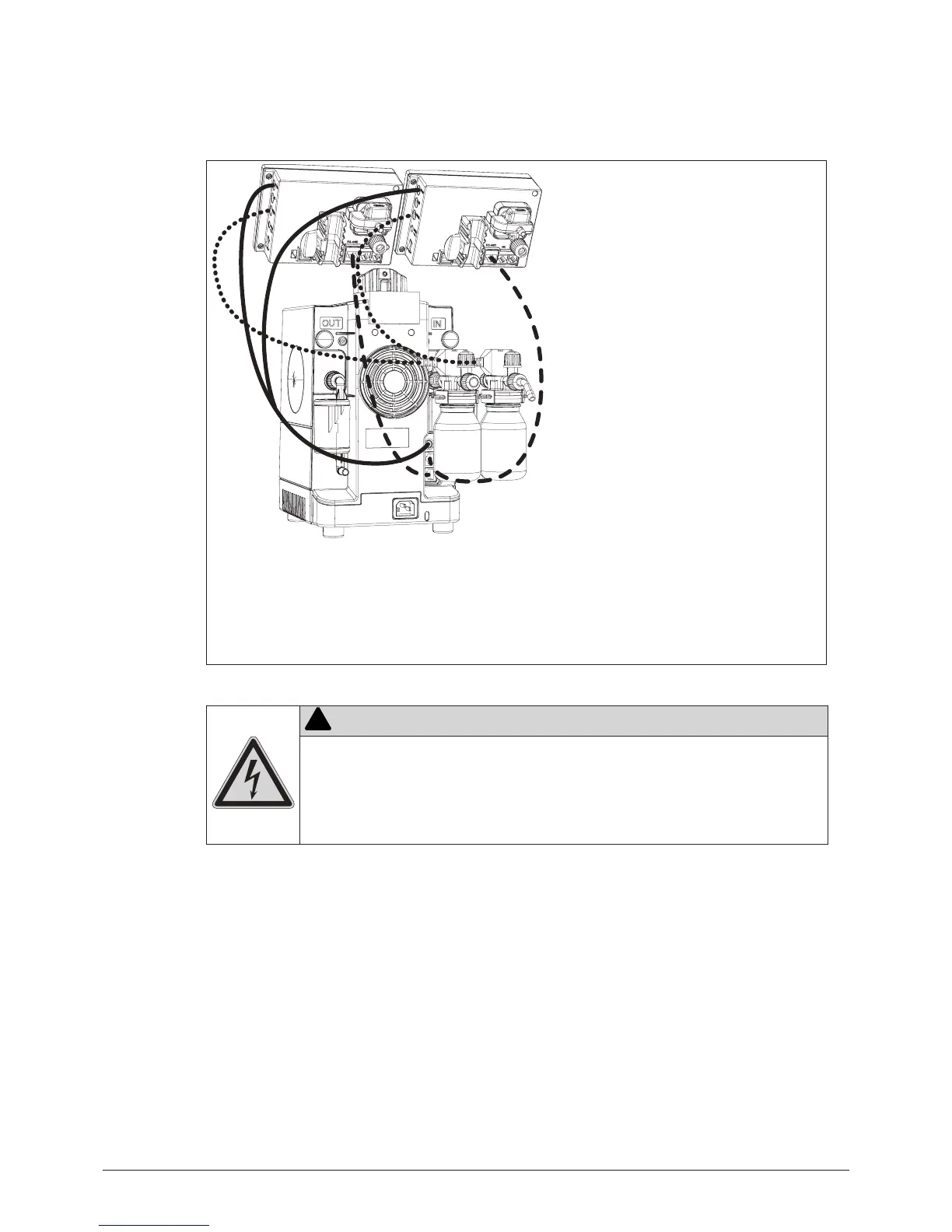

How to connect the cables:
1. Use the two green power supply cables to
connect the pump to the controllers (shown
with dashed lines)
2. Use the grey-Y-cable to connect the pump to
the controllers’ AS/SB-connector. (shown as
solid line)
3. Link each calve unit to the VALVE connector of
the respective controller (shown with dotted
line).
Electrical connections
RJ45 : Power supply (dashed line)
Valve : Valve unit (dotted line)
CW : Control cable (solid line)
!
WARNING
Death or serious burnings by electric shock.
• Mains voltage must match the voltage reading on the type plate.
• Instrument must be earthed by the mains socket.
• Only use a molded 3-pole device plug (IEC-60320, type C13 or C15).
• Do not use damaged cables.
