Installation manual
AM10 - We reserve the right to make any changes due to technical modifications!6
1
Positioning of the outdoor sensor
For best performance the outdoor sensor is to
be positioned where the sun can never reach
it. Mount only on a North facing wall of the
building out of the sunlight, with at least 1 foot
above snow line. Keep the sensor away from
heat sources like dryer, water heater, or boiler
vents, windows, etc.
[°F] [kΩ] [°F] [kΩ] [°F] [kΩ] [°F] [kΩ]
-40 336.5 5 72.9 50 19.9 95 6.5
-31 242.6 14 55.3 59 15.7 104 5.3
-22 177.0 23 42.3 68 12.5 113 4.4
-13 130.4 32 32.7 77 10.0 122 3.6
-497.14125.486 8.1
Table 1 Sensor resistance table

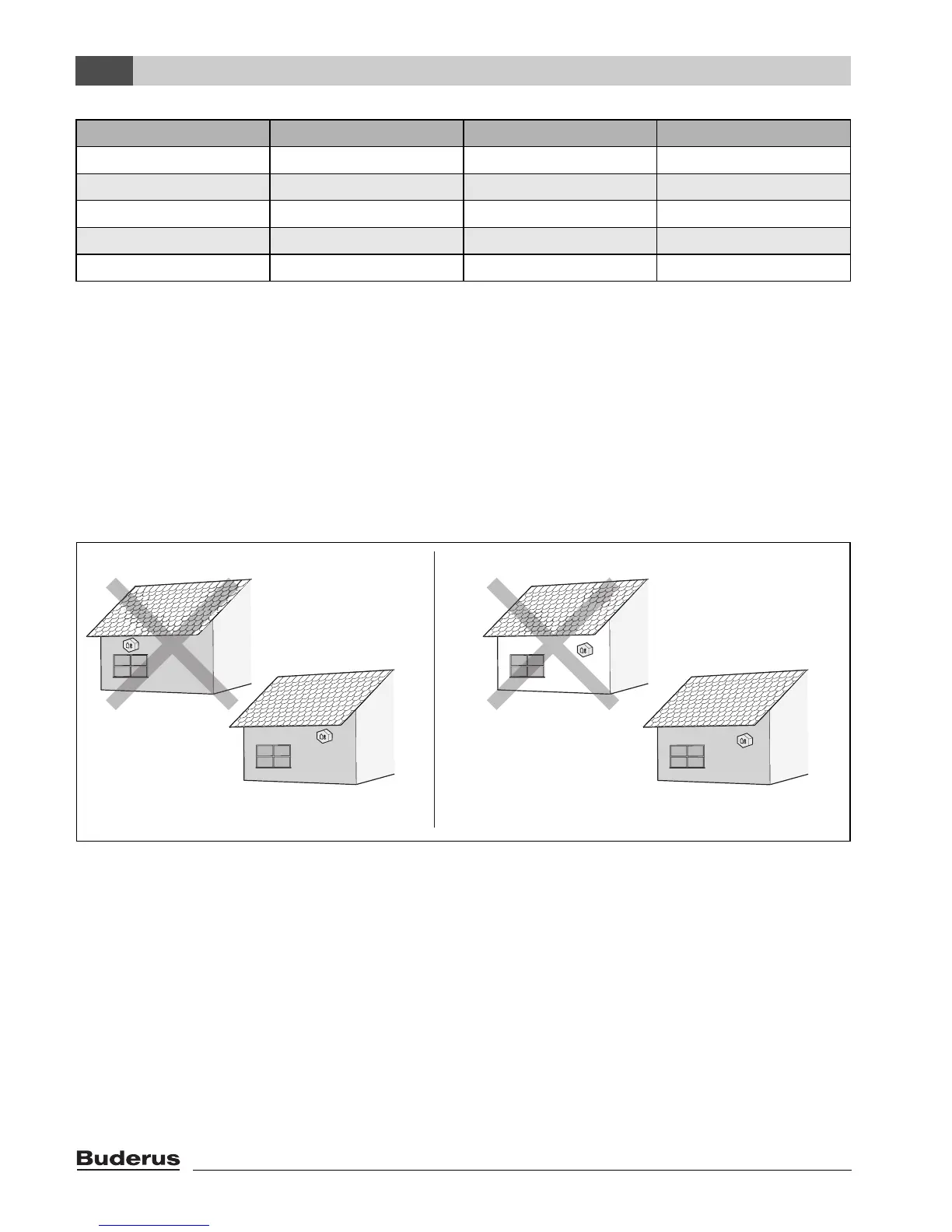

Fig. 6 Sensor location
☺
☺
