Assembly
Logamatic TC100 – 6720889234 (2018/10)
4
If weather-compensated control is used, it is not necessary to locate the
controller in the reference room.
▶ Install the controller on an internal wall in the reference room.
Ensure that there is sufficient clearance around the controller.

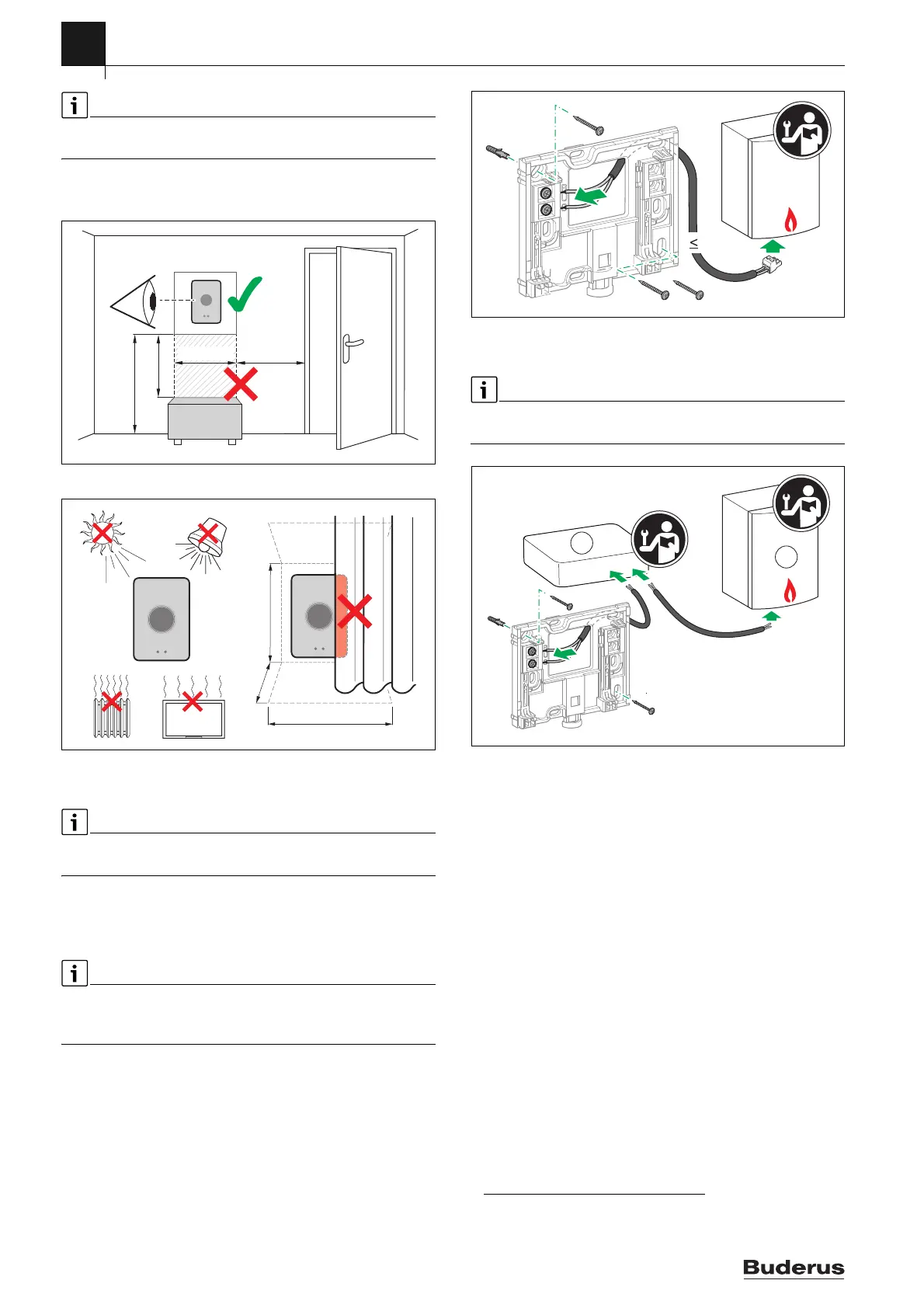

Fig. 3 Installation location for controller, clearance
Fig. 4 Installation location for controller, condition
4.3 Fitting the wall plate
When replacing a controller with Logamatic TC100, the existing wall
plate can continue to be used ( section 4.5).
This wall plate can be fastened directly to the wall, for example at the
location of the previous controller.
▶ Pull the mains plug of the heat source from the socket.
When fitting to a recessed wall box, ensure that the room temperature
measurement can not be impaired by any draughts. If required, stuff the
recessed wall box with thermal insulation material.
▶ Connect the lead (EMS-BUS connection of the heat source) to the
terminals on the wall plate. The wires can be connected in any order.
Fig. 5 Connecting the wall plate
4.4 Connecting to the heat source
The installation instructions for the heat source contain further
information about the connection of Logamatic TC100.
Fig. 6 Connecting the Logamatic TC100 adaptor
[1] Logamatic TC100 adaptor
[2] Heat sources which use iRT, OpenTherm or On-Off
There are various possibilities for connection to a heat source:
• Replacing an existing controller on the same wall plate. Logamatic
TC100 is ready for operation.
• Buderus
1)
heat source appliance with a visible orange controller
connection on the underside. Connect Logamatic TC100 with the
orange connector at the orange terminal.
• Buderus
1)
heat source appliance without a visible connection for the
controller. The heat source must be opened by a recognized installer.
• Heat sources, which use iRT, OpenTherm or On-Off, can only be
connected with an Logamatic TC100 adaptor (accessory).
For more up-to-date information see the back of this document for
the web address or consult a recognized installer.
0010018149-001
1,2 - 1,9 m
≥ 0,75 m
≥ 1 m
≥ 0,6 m
0010018150-001
≥ 1 m
≥ 0,4 m
≥ 0,6 m
1) Or a Bosch Group brand (Nefit, Junkers, Worcester, ELM LeBlanc).
0010018151-002
EMS
l 100 m
EMS BUS
0010018152-002
l ≤ 100 m
l ≤ 3 m
1
2
