6 Operating the appliance
Logamatic TC100 – 6720889234 (2018/10)
7
Operational symbols
The space for operational symbols [5] may contain the following
symbols:
Warning symbols
The space for warning symbols [5] may contain the following symbols:
Symbols on tabs
The following symbols may appear on the tabs:
6.2 Symbol background

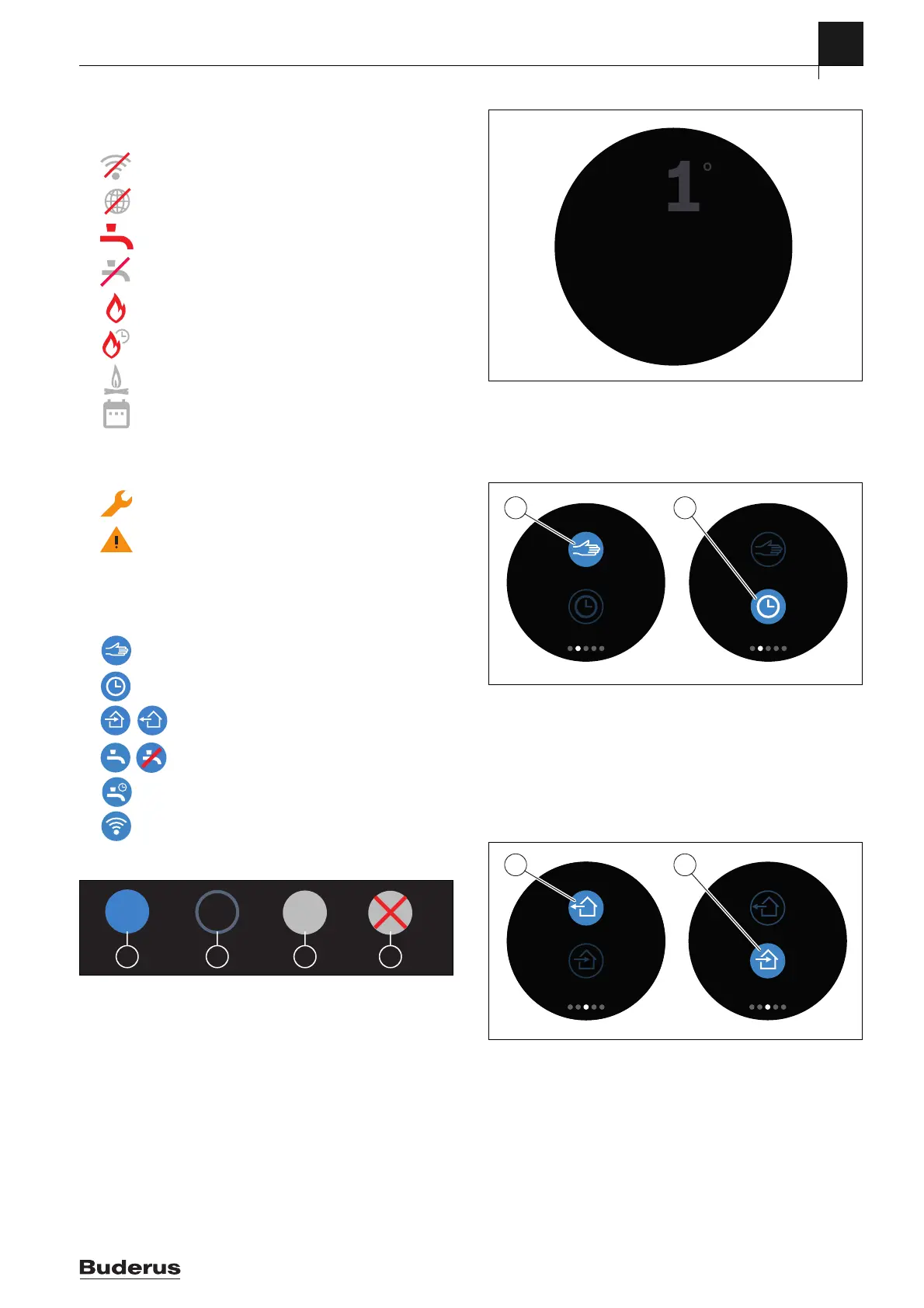

Fig. 13 Symbol background
Symbols can have differently coloured backgrounds. A light blue
background shows, that this function is active. [1]. A dimmed blue
background shows, that this is not active [2]. A grey background shows,
that this function is not available [3]. If a function is tapped, which is not
available, a red cross appears over this background [4].
6.3 Tab pages
Logamatic TC100 contains several tab pages ( fig. 12, [6]).
The number of available tab pages depends on the system. The start
screen is on the 1st tab page.
▶ Swipe right or left to change between the tab pages.
6.4 Temperature setting
Fig. 14 Temperature setting
▶ Tap on the start screen to get to the temperature setting screen.
▶ Swipe vertically to increase or reduce the set temperature.
6.5 Manual operation or time program
Fig. 15 Selecting manual operation or time program
The time program can be set with the MyMode app. The time program
can be switched on or off with Logamatic TC100.
▶ Swipe horizontally to the correct tab page.
▶ Tap on the Manual operation [1] key or Time program [2] key to
change between these functions.
6.6 Away setting
Fig. 16 Selecting “Not at home” or “At home”
The “Away” setting is used to show, whether one is at home or not. The
set temperature is lowered in “Away from home status” by15 °C (60 °F).
This standard value can be changed in the MyMode app. This function is
only available in time program mode.
▶ Swipe horizontally to the correct tab page.
▶ Tap on the key for “Away” [1] or “Home” [2] to change between these
functions.
• No WLAN connection
• No connection with the Buderus server
• DHW is maintained at temperature
• DHW is not maintained at temperature
• Heat source in operation for CH
• Heat source in operation for CH optimum start
•Fire place
•Event
• Maintenance request from the heat source
• Fault signal from the heat source
• Manual operation
• Time program
• Home/Away setting
• DHW mode permanently On/Off
• DHW mode On/Off automatically
• WLAN settings
