Product description
Logano G115 WS US/CA – 6 720 804 873 (2012/10)4
2 Product description
To ensure safe, economical and environmentally friendly use of the
heating system, we recommend that you carefully read the safety
instructions and operating instructions.
These instructions provide the operator of the heating system with an
overall view of the use and operation of the boiler.
2.1 Intended use
The boiler is designed for heating central heating system water and
domestic hot water, in residential buildings or apartment buildings, and
light commercial installations. Other uses are not intended.
2.2 Certification and testing mark
This appliance has been tested and certified to meet rules and
regulations in place for the US and Canadian markets.
2.3 Disposal
B Dispose of boiler packaging in an environmentally responsible
manner.
B All heating system components that have to be replaced should be
disposed of in environmentally responsible manner at an authorized
disposal site.
2.4 Product description
The boiler (Æ Fig. 1) is a low-temperature oil-fired appliance.
The main components of the boiler (Æ Fig. 1) are:
• Control panel
• Boiler jacket
• Boiler heat exchanger with insulation
The controls monitors the boiler and system water temperatures and
controls the burner. It also includes the safety devices.
The boiler can alternatively be fitted with a simple Aquasmart control.
The boiler jacket prevents heat loss and reduces noise.
The boiler heat exchanger transfers the heat generated by the burner to
the heating water. The thermal insulation reduces radiant and standby
heat loss.

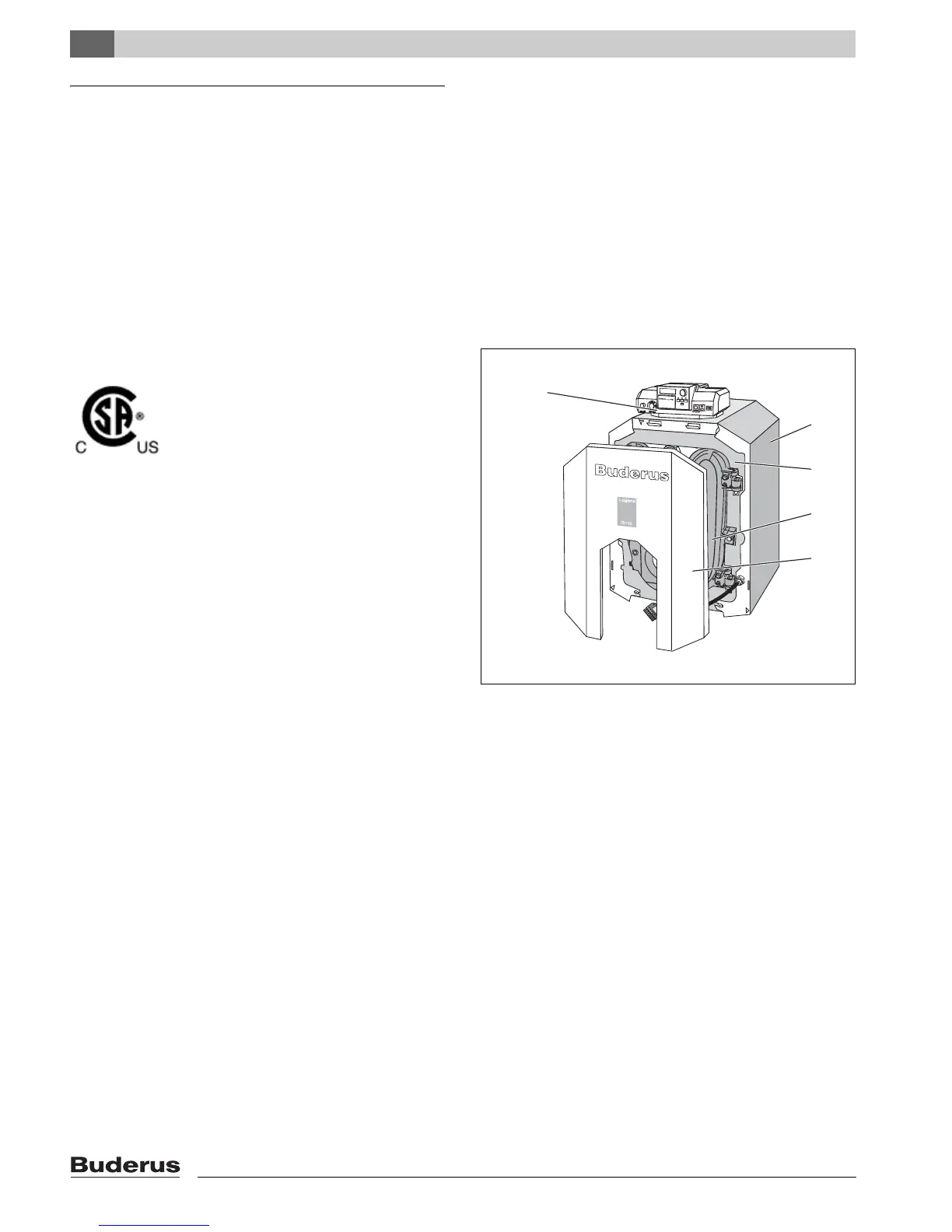

Fig. 1 Boiler without burner
[1] Control panel
[2] Boiler jacket
[3] Boiler heat exchanger with insulation
[4] Burner door
[5] Burner door panel
6 720 615 225-01.1RS
1
2
3
4
5
