2
Product Information
S 32/5 – 6 720 804 007 (2014/10)6

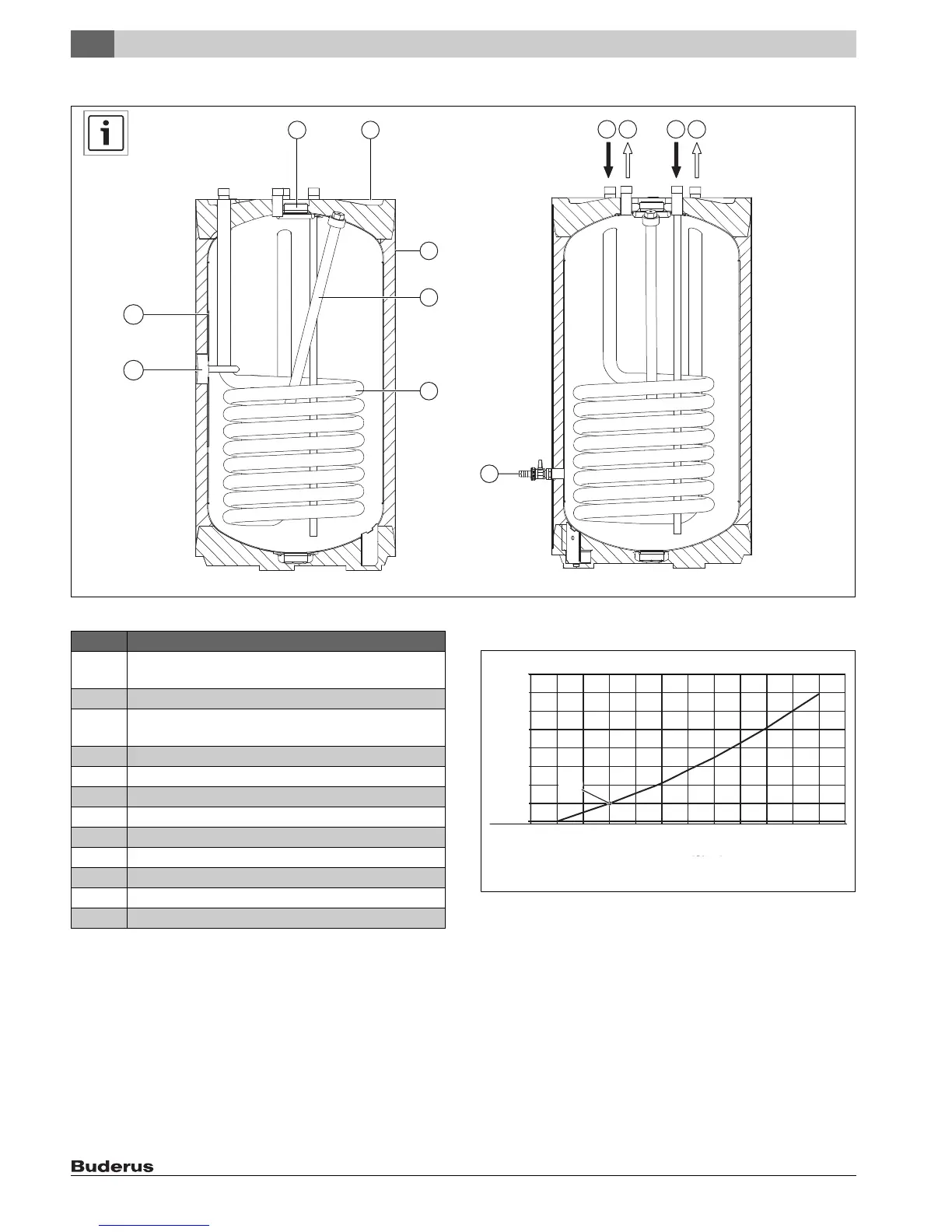

2.3 Product Information
Fig. 2 Product Information
2.4 Data plate
The data plate is located at the top rear of the tank.
2.5 Pressure drop curve of heating coil
Fig. 3 Pressure drop curve of heating coil
Example:
A4 gpm
0.5 feet of head
6 720 801 773-14.1ITL
111098
4
5
2
3
76
1
12
Item Description
1 Jacket, painted sheet metal with rigid polyurethane foam
insulation, 2" (50 mm)
2 Magnesium anode
3 Heat exchanger for heating by boiler, smooth enameled
tubing
4 Sensor well for aquastat or boiler temperature sensor
5 Tank, enameled steel
6 Inspection port for service and cleaning, on the top
7 PS top cover
8 Boiler supply
9 DHW outlet
10 Cold water inlet
11 Boiler return
12 Drain valve
Table 4 Product Information
6 720 801 773-02.4ITL
flow rate [gpm]
Pressure drop [ft of head]
0
0.5
1
2
3
4
1.5
2.5
3.5
2 4 6 8 10 12
A
Pressure drop [ft of head]
flow rate [gpm]
