2004 Buell P3: Drive/Transmission 6-39
HOME
TRANSMISSION SPROCKET 6.14
REMOVAL
1. See Figure 6-55. Place transmission in first gear.
Remove two socket head screws (5) and lockplate (4).
NOTE:
Transmission sprocket nut has left-hand threads. Turn nut
clockwise to loosen and remove from main drive gear shaft.
2. See Figure 6-55. Remove transmission sprocket nut (3)
from main drive gear shaft (1).
3. See Figure 6-56. Secure pulley using SPROCKET
LOCKING TOOL (Part No. B-43982).
INSTALLATION
1. See Figure 6-55. Install transmission sprocket (2) with
secondary drive belt onto main drive gear shaft (1).
2. Place transmission in neutral.
3. Apply a few drops of LOCTITE 262 (red) to the left-hand
threads of transmission sprocket nut (3) and lightly coat
the washer-faced side with clean H-D 20W50 engine oil.
Wipe off any excess oil.
4. Position nut with washer-faced side facing transmission
sprocket. Turn the nut counterclockwise to install it onto
main drive gear shaft.
5. See Figure 6-56. Install SPROCKET HOLDING TOOL
(1) (Part No. B-43982) as shown.

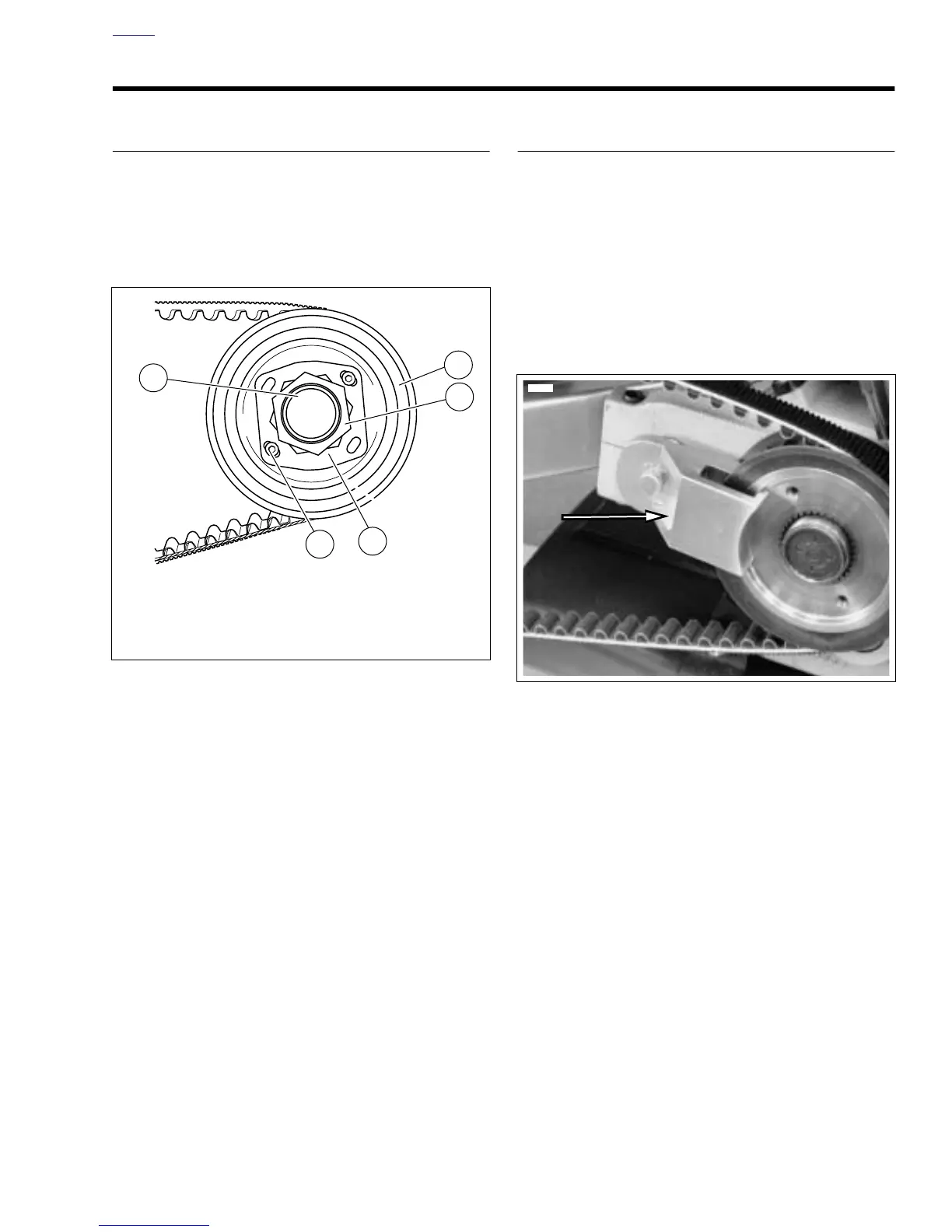

Figure 6-55. Transmission Sprocket
1. Main drive gear shaft
2. Transmission sprocket
3. Transmission sprocket nut (left-hand threads)
4. Lockplate
5. Socket head screw (2)
a0149x6x
3
4
5
1
2
Figure 6-56. Sprocket Locking Tool (Part No. B-43982)
