7-14 2004 Buell P3: Electrical
HOME
IGNITION/HEADLAMP KEY SWITCH 7.6
GENERAL
11WARNING1WARNING
DO NOT modify the ignition/headlamp switch wiring to
circumvent the automatic-on headlamp feature. Visibility
is a major concern for motorcyclists. Failure to have
proper headlamp operation could result in death or seri-
ous injury.
See Figure 7-13. The four-position combination ignition/head-
lamp key switch is not repairable. Replace the unit if it fails.
Switch positions are explained in Ta bl e 7-11.
CAUTION
When turning off the ignition, verify that the key is
removed in the OFF or FORK LOCK position and that the
lights are not left on. If the rider stops the engine and
inadvertently removes the key in the PARK position, the
battery will be drained of its charge if the vehicle is left
standing too long.
NOTE
The key locks the ignition system and is removable in both
the OFF, FORK LOCK and P (PARK) positions. The PARK
position is located between the OFF and IGNITION positions
and allows the rider to remove the key while leaving the lights
on. When the key is placed in the PARK position, several indi-
cator markers are or can be activated. See Table 7-12.

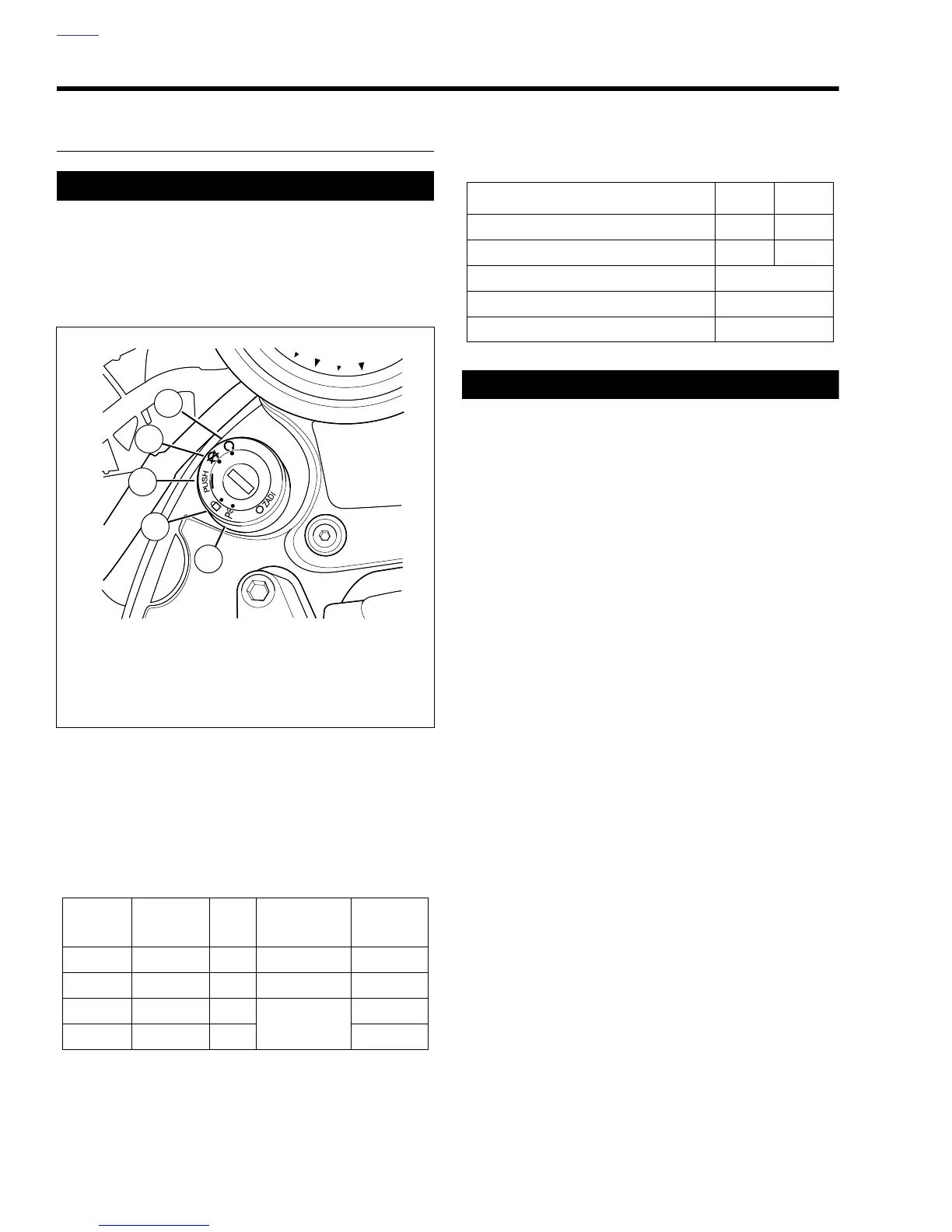

Figure 7-13. Ignition/Headlamp Key Switch
Table 7-11. Ignition Switch Labeling
LABEL NAME IGN. LAMPS
REMOVE
KEY
OFF Off off off yes
LOCK Fork Lock off off yes
PPark off See note &
Tabl e 7-12.
yes
IGN Ignition on no
1. Ignition/Light position
2. OFF position
3. Push detent
4. Fork lock
5. P (Park) position
a0001xox
3
5
4
1
2
Table 7-12. Ignition Switch Operation
ITEM P IGN
Headlamp High/Low Beam off on
Speedometer Illumination Lamp on on
Stop Lamp can be activated
Front and Rear Turn Signals can be activated
Horn can be activated
