7-32 2004 Buell P3: Electrical
HOME
Ignition Fuse

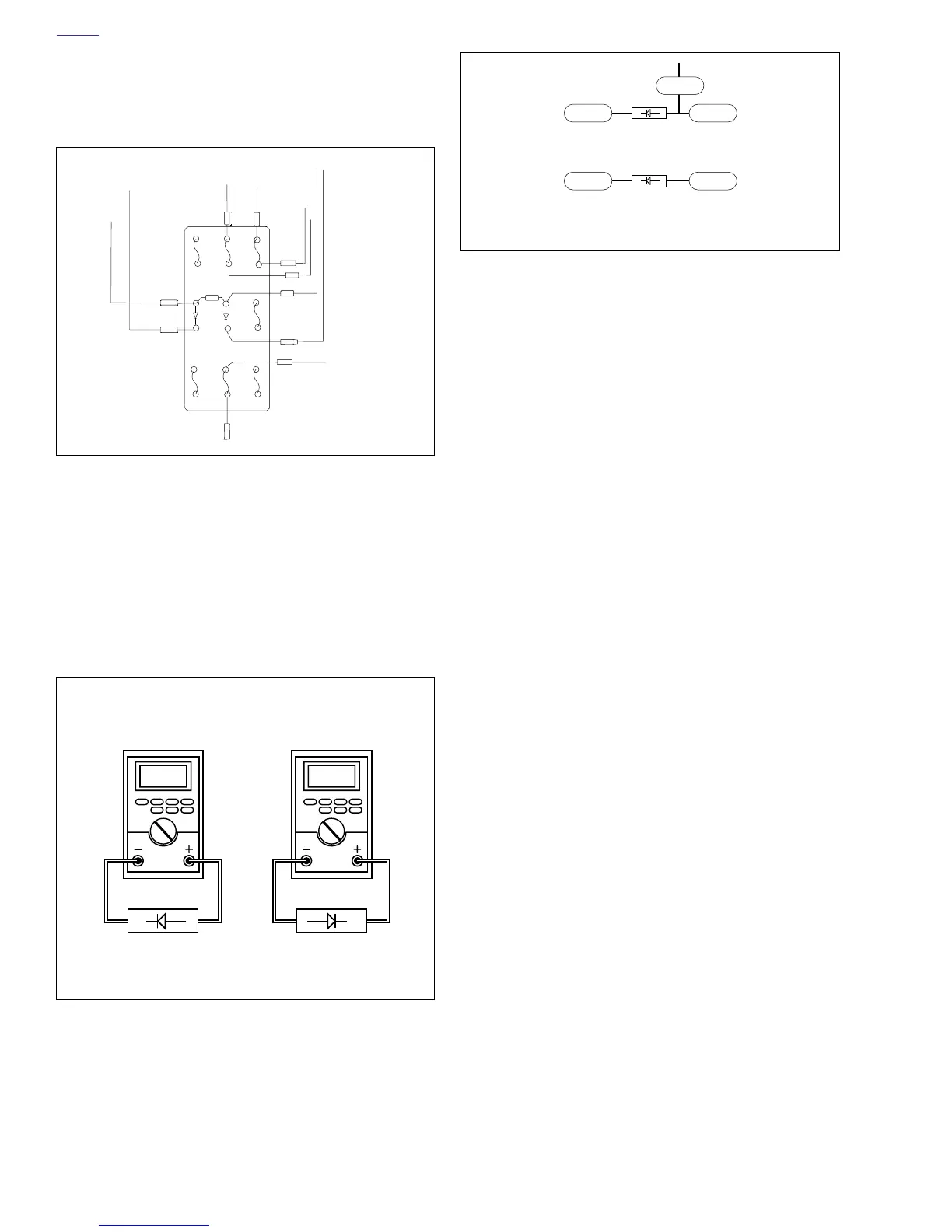

See Figure 7-39. The ignition fuse is in the fuse block under
the seat. Always replace the fuse with another 7.5 ampere
fuse.
Diodes
The fuse block contains two diodes. A diode acts as a one
way switch which permits current flow in one direction, but not
in the other.
The reference numbers below correlate with the circled num-
bers in the 7.11 STARTER/IGNITION INTERLOCK flow
charts.
1. Check diode with an ohmmeter as shown in Figure 7-40.
2. Check diode polarity as shown in Figure 7-41.
3. Replace diodes as necessary.
Figure 7-39. Fuse Block
Figure 7-40. Ohmmeter Diode Test
TN/W
TN
R
DIODE 1
R2
R/BK
15A 15A 15A
SYSTEM
LIGHTS
15A
KEY SWITCH
DIODE 2
SPARE
TN/Y
TN/GR
O
7.5A
SPARE
7.5A 7.5A
ACCESSORY
IGNITION
TN/Y
R/BK
G
Y
a0234x7x
[61]
Continuity Infinite
ohms
a0235x7x
Figure 7-41. Diode Polarity
a0236x7x
TN TN/Y
Diode 1 polarity
TN/GN TN/Y
Diode 2 polarity
TN/W
