6.13TURN SIGNAL FLASHER
REMOVAL
NOTE
The turn signal flasher is not repairable. Replace flasher upon
failure.
1. Remove front fairing or windshield/windscreen. See
2.47 FRONT FAIRING, WINDSHIELD, AND MIRRORS:
FIREBOLT (Firebolt) or 2.48 WINDSHIELD AND WIND-
SCREEN: LIGHTNING AND ULYSSES MODELS (Light-
ning and Ulysses).
2. See Figure 6-43 (Firebolt), Figure 6-44 (Lightning) or
Figure 6-45 (Ulysses). Remove fastener securing turn
signal flasher to headlight support bracket (Firebolt) or
front module (Lightning and Ulysses).
3. Detach 5-place connector [30] from flasher body.
INSTALLATION
1. See Figure 6-43 (Firebolt), Figure 6-44 (Lightning) or
Figure 6-45 (Ulysses). Attach 5-place connector [30] to
flasher.
2. Install turn signal flasher to headlight support bracket
(Firebolt) or front module (Lightning and Ulysses).Tighten
fastener to 36-60 in-lbs (4-6.8 Nm).
3. Install turn signal flasher to instrument module (Lightning).
Tighten fastener to 12-36 in-lbs (1.4-4 Nm).
4. Install turn signal flasher to front headlight module
(Ulysses).Tighten fastener to 36-60 in-lbs (4-6.8 Nm).
5. Install front fairing or windshield/windscreen. See
2.47 FRONT FAIRING, WINDSHIELD, AND MIRRORS:
FIREBOLT (Firebolt) or 2.48 WINDSHIELD AND WIND-
SCREEN: LIGHTNING AND ULYSSES MODELS (Light-
ning and Ulysses).
Be sure that all lights and switches operate properly before
operating motorcycle. Low visibility of rider can result in
death or serious injury. (00316a)
6. Check turn signals for proper operation. If operation fails,
reread procedure and verify that all steps were performed.
a. Turn ignition key switch to IGN.
b. See Figure 6-46. Activate left turn signals using switch
on left handlebar. Front and rear left turn signals must
flash.
c. Activate right turn signals using switch on left
handlebar. Front and rear right turn signals must flash.
d. Turn ignition key switch to OFF.

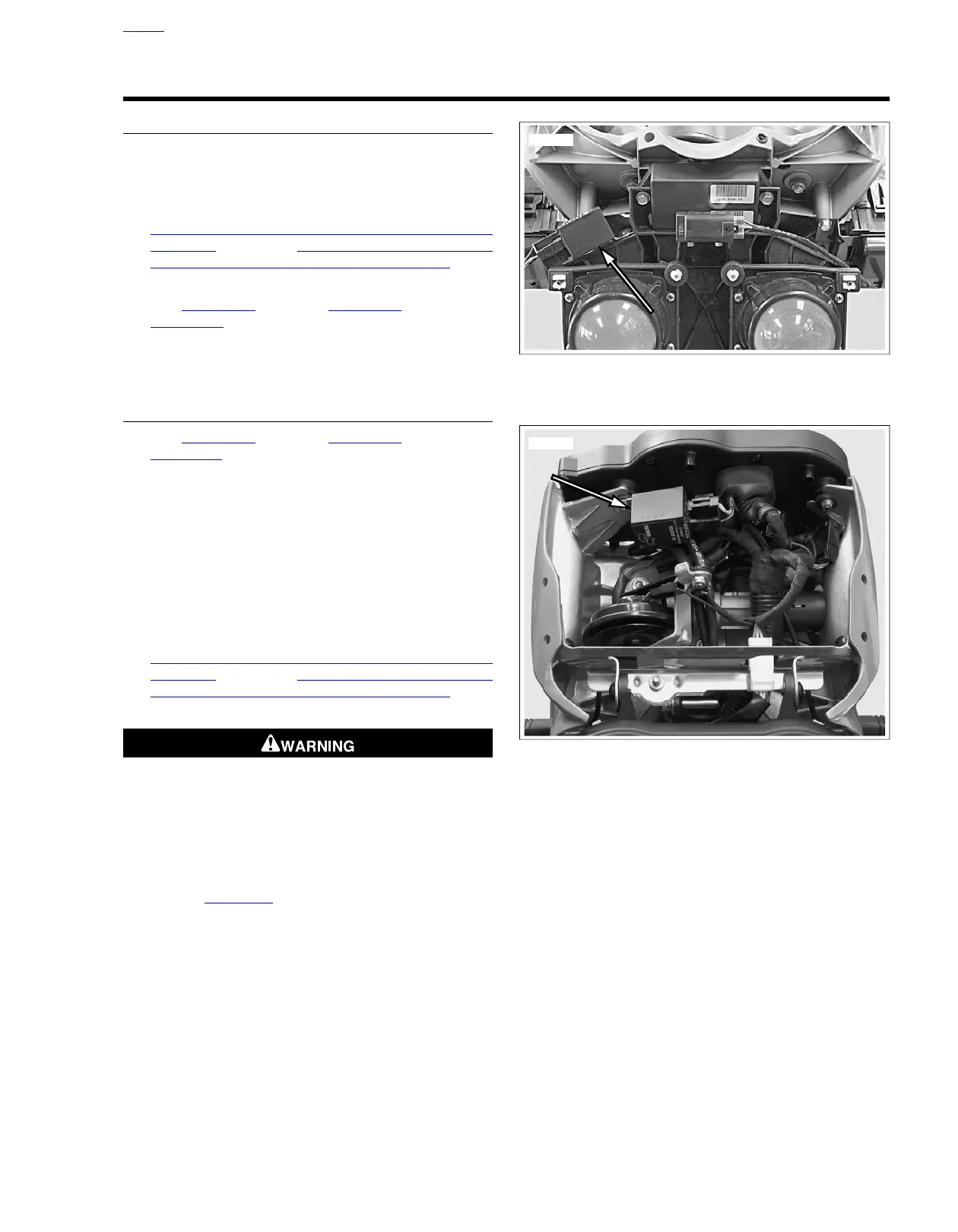

Figure 6-43.Turn Signal Flasher: Firebolt (Typical)
Figure 6-44.Turn Signal Flasher: Lightning
HOME
2010 XB Service: Electrical 6-37
