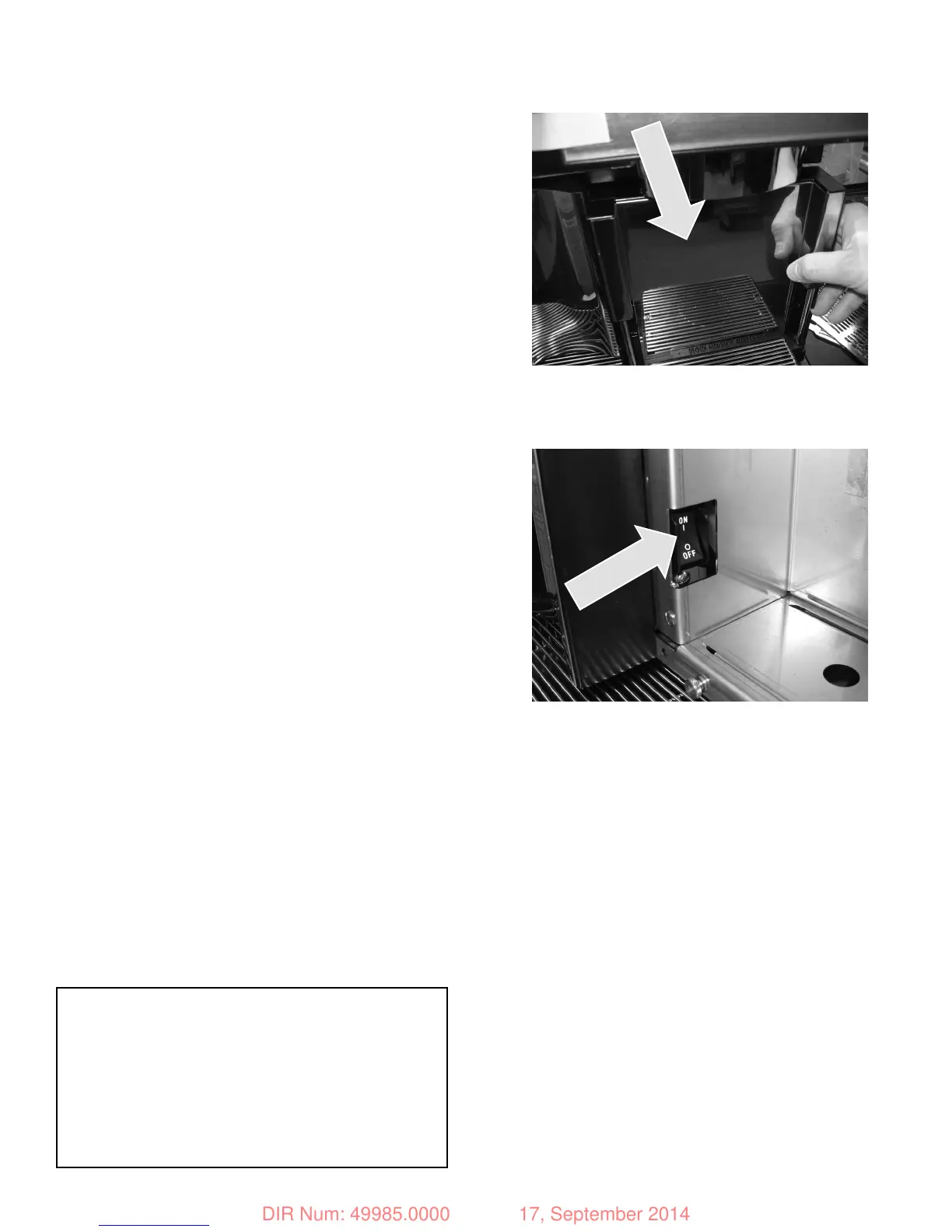

REMOVE/INSTALL PUCK BIN
POWER SWITCH LOCATION
SITE REQUIREMENTS
Plumbing
1. Quick connect assembly with adapter (supplied).
2. 3/8˝ NPT fi tting on water fi lter.
3. These brewers must be connected to a cold water
system with operating pressure between 20 and 90
psi (0.138 and 0.620 MPa) from a 1⁄2" or larger sup-
ply line. A shut-off valve should be installed in the line
before the brewer. Install a regulator in the line when
pressure is greater than 90 psi (0.620 MPa) to reduce
it to 50 psi (0.345 MPa).
4. Shut off valve should be present between water
supply and machine.
5. Vented drain available within 3.3 feet (1 meter) of
machine.
6. Flush the water line and securely attach it to the
inlet fi tting at the rear of the brewer.
7. Turn on the water supply.
NOTE - Bunn-O-Matic recommends 1⁄4" copper tub-
ing for installations of less than 25 feet and 3⁄8" for
more than 25 feet from the 1⁄2" water supply line. A
tight coil of copper tubing in the water line will fa-
cilitate moving the brewer to clean the counter top.
Bunn-O-Matic does not recommend the use of a sad-
dle valve to install the brewer. The size and shape of
the hole made in the supply line by this type of device
may restrict water fl ow.
W
ater Treatment
1. No Chlorine.
2. Water Hardness 3 to 6 grains
3. Water Filtration System
NOTE: The water connections are at the lower rear of
the machine.
Location of the Serial Number
The serial number is located behind the puck bin on
the right wall across from the power switch.
The complete serial number will need to be docu-
mented on all work orders and warranty tags.
Optional Under Counter Puck Disposal
NOTE: This will require hole cut through
counter top.
1. Remove puck bin.
2. Remove small cover.
3. Install optional puck bin.
As directed in the International Plumbing Code
of the International Code Council and the Food
Code Manual of the Food and Drug Administra-
tion (FDA), this equipment must be installed with
adequate back fl ow prevention to comply with fed-
eral, state and local codes. For models installed
outside the U.S.A., you must comply with the ap-
plicable Plumbing /Sanitation Code for your area.
49985 090814
RELEASED FOR PRODUCTION
DIR Num: 49985.0000 17, September 2014
