Page 7

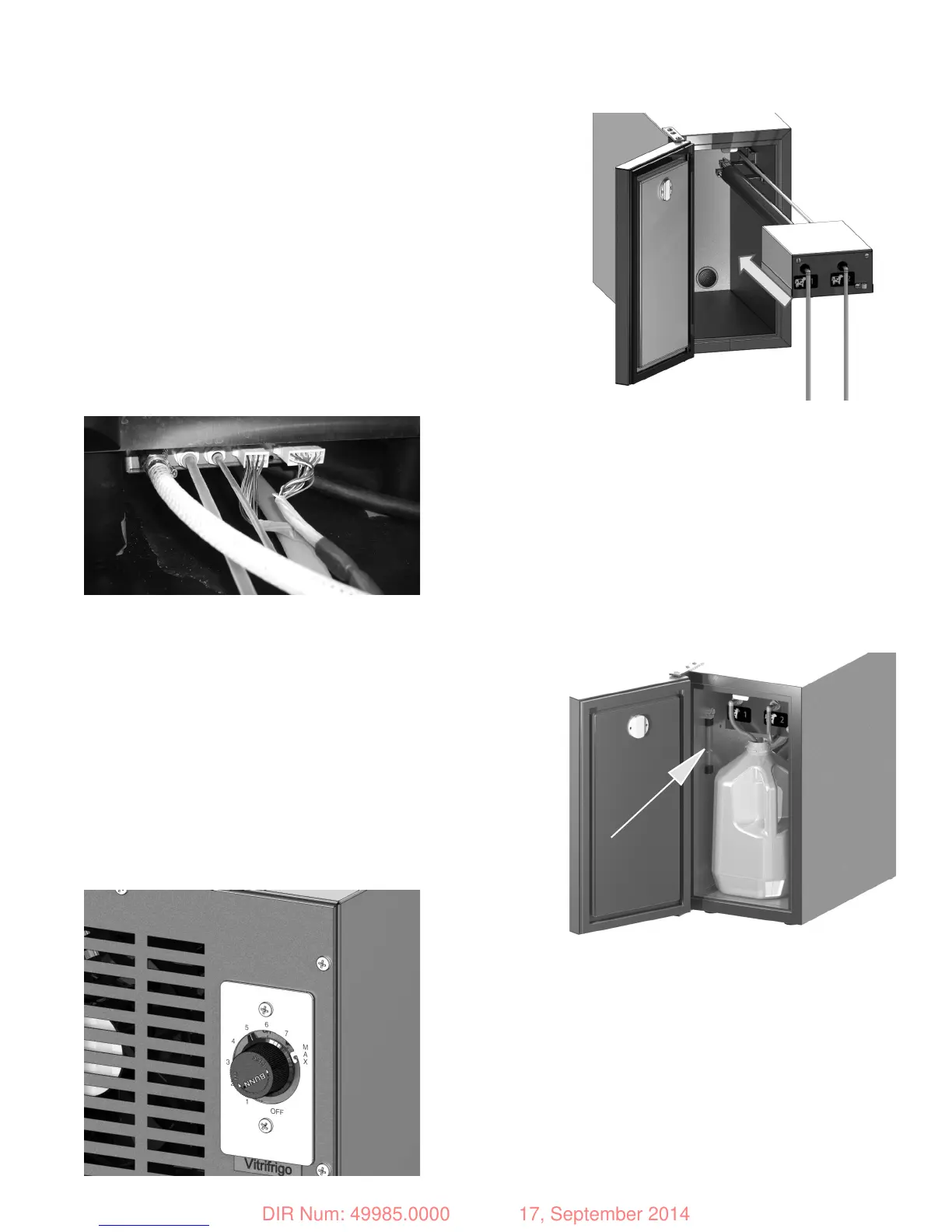

INSTALLATION-REFRIGERATOR
Milk Module Installation-counter top
1. Align hoses and harnesses through holes
in back of refrigerator and slide module into
cabinet on the pre-installed brackets.
Milk Module Installation-under counter
1. Align hoses and harnesses through hole
on top of refrigerator and slide module into
cabinet on the pre-installed brackets. Ensure
holes in back are plugged.
INSTALL SUPPLY LINES
A
B
C
D
E
Connect hoses and harnesses to machine as shown.
A. Water supply to espresso machine.
B. Water line to milk module.
C.
Milk line from milk module.
D. 8 pin connector from milk module.
E. 14 pin connector from milk module.
Load milk containers.
A. Load a container of "non fat" milk towards the back
and insert the number "2" hose into container.
B. Load a container of "whole" milk towards the front and
insert the number "1" hose into container.
49985 082114
Load milk containers.
A. Adjust refrigerator thermostat control knob as needed.
B. Temperature may be monitored with the thermometer
hanging inside the cabinet (1).
C. Refer to manufacturers manual included with refrig-
erator for additional information.
1
RELEASED FOR PRODUCTION
DIR Num: 49985.0000 17, September 2014
