Bunn DUAL SH DBC User Manual

Page 15
L BYPS OZ/M 24.1
(-) DONE (+)
R BYPS OZ/M 24.1
(-) DONE (+)
CALIBRATE FLOW?
NO YES
BREW COUNTERS?
NO YES
FUNNEL DETECT
NO DONE YES
SERVICE TOOLS
NO YES
FACTORY DEFAULTS
NO YES
(F)
FINISHED, returns
to main screen
LEFT 0
NEXT RESET
RIGHT 0
NEXT
L+R 0
NEXT
L+R 0
NEXT
TEST OUTPUTS?
NO YES
TEST SWITCHES?
NO YES
TEST SERVERS?
NO YES
FACTORY DEFAULTS
NO YES
LEFT BREW VALVE
ON NEXT OFF
LEFT FUNNEL LOCK
ON NEXT OFF
LEFT SERVER
ON NEXT OFF
RIGHT BREW VALVE
ON NEXT OFF
RIGHT BYPASS
ON NEXT OFF
RIGHT FUNNEL LOCK
ON NEXT OFF
RIGHT SERVER
ON NEXT OFF
REFILL VALVE
ON NEXT OFF
HEATER CONTACTOR
ON NEXT OFF
FINISHED, returns
to main screen
SPRAY HEAD CAL?
NO YES
BYPASS CAL?
NO YES
CONTAINER RDY?
QUIT YES
CONTAINER RDY?
QUIT YES
CALIBRATE BYPASS
PRESS BREW START
CALIBRATE SPRAY
PRESS BREW START
SERVER DETECT
NO DONE YES
PROGRAMMING FUNCTIONS (cont.)
TEST FREQUENCY?
NO YES
LEFT BYPASS
ON NEXT OFF
TANK HEATERS
ON NEXT OFF

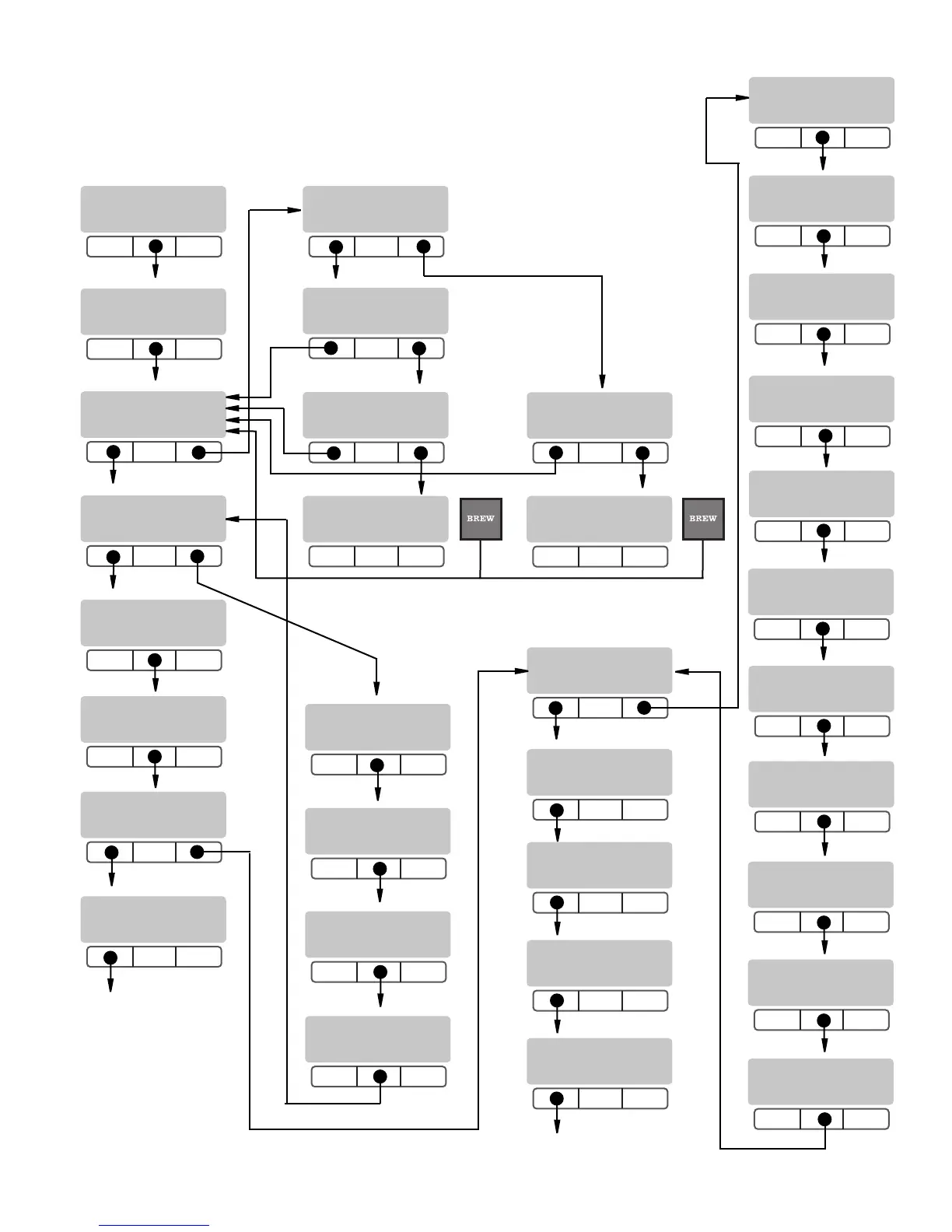

PROGRAM FLOW DIAGRAM (Cont.)
29877.2 121504
