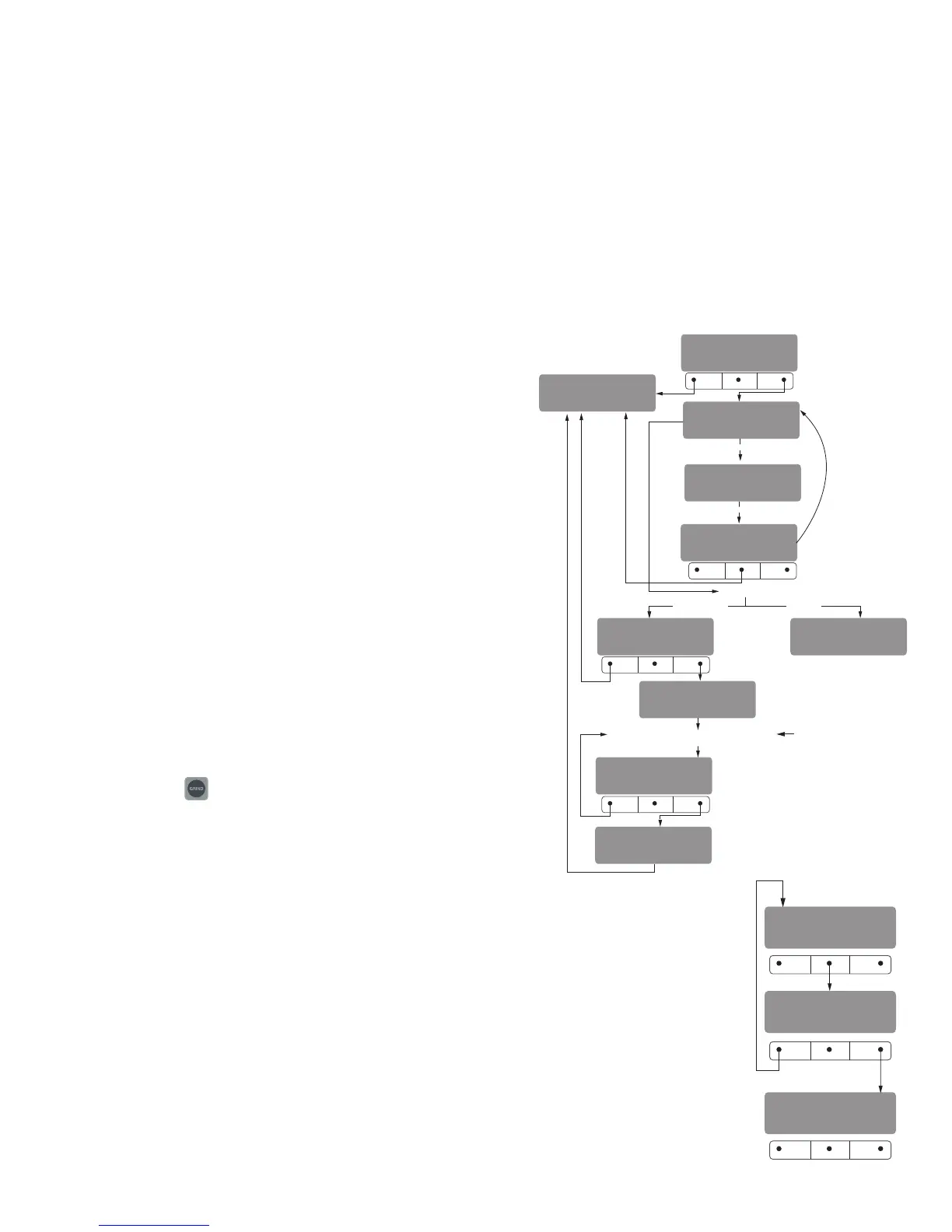

SEE SEPARATE DIAGRAMS
FOR SETUP INSTRUCTIONS
FUNNEL DETECTED
P2299
PROGRAMMING FUNCTIONS (cont.)
SET NEW RECIPE
Using a Smart Funnel
®
and a G9-2T DBC or MHG
Grinder:
This function allows the operator to set BREW VOL-
UMES, BYPASS PERCENTAGES, PULSE BREW TIMES,
PREINFUSION TIMES and DRIP-OUT TIMES for each
coffee name preset in the grinder's memory.
Certain coffee NAMES are stored in the G9-2T DBC
or MHG's memory. When a particular name of coffee
is ground into the Smart Funnel
®
, that name and the
batch size selected are transferred from the grinder
to the programming chip located in the funnel handle.
The funnel is then inserted into the brewer's left side
funnel rails. The sensor coil on the brewer reads the
information contained in the handle. The name of the
coffee fl avor will then appear on the display. This then al-
lows the operator to set the BREW VOLUMES, BYPASS
PERCENTAGES, PULSE BREW TIMES, PREINFUSION
TIMES and DRIP-OUT TIMES for that particular coffee
NAME. It also allows the operator to set other brewing
parameters, such as BREW TEMPERATURE, READY
TEMPERATURE, BREW LOCKOUTS, etc. Each coffee
NAME can be set individually to provide optimum
brewing quality.
Procedure for Setting the Recipe:
NOTE: Before beginning setup, place a server beneath
the left brew funnel.
1. Insert the funnel into the grinder and select a batch
size to grind. It is not necessary to have coffee
beans in the hopper(s) in order to program the
brewer. The coffee name is pre-selected and
stored in the grinder's memory for the side being
ground.
2. Press the pad. When the grinder stops grinding,
remove the funnel.
3. On the brewer, press and hold the upper right
hidden switch until the display reads SET NEW
RECIPE. Release the switch.
4. Press and release YES. The display should read
INSERT FUNNEL WITH NEW NAME, then USE
LEFT SIDE ONLY, and fi nally, QUIT SETUP? These
three displays will repeatedly cycle.
5. Insert the funnel into the rails on the left side of
the brewer. The display should read the NAME of
the coffee that was ground into the funnel, along
with a NO and YES. If the NAME on the display is
correct, press YES.
BREW OZ. XX.X
(-) DONE (+)
% BYPASS XX.X
(-) DONE (+)
3 BATCHES DONE?
NO YES
P2415
29877.2 121504
6. If, for some reason, the name of the coffee from
the grinder did not load properly into the funnel,
or if a grind has not yet been done, the display will
read MUST GRIND INTO FUNNEL FIRST. It will be
necessary to grind another batch following steps
1 and 2.
7. If the grind is acknowledged by the brewer, the
display will read BEGIN SETUP OF (COFFEE
NAME). Then the screen will display BREW OZ.
and a batch light will be blinking. (Refer to page
22 for description of BREW OZ. function).
To Next Page
