SERVICE TOOLS

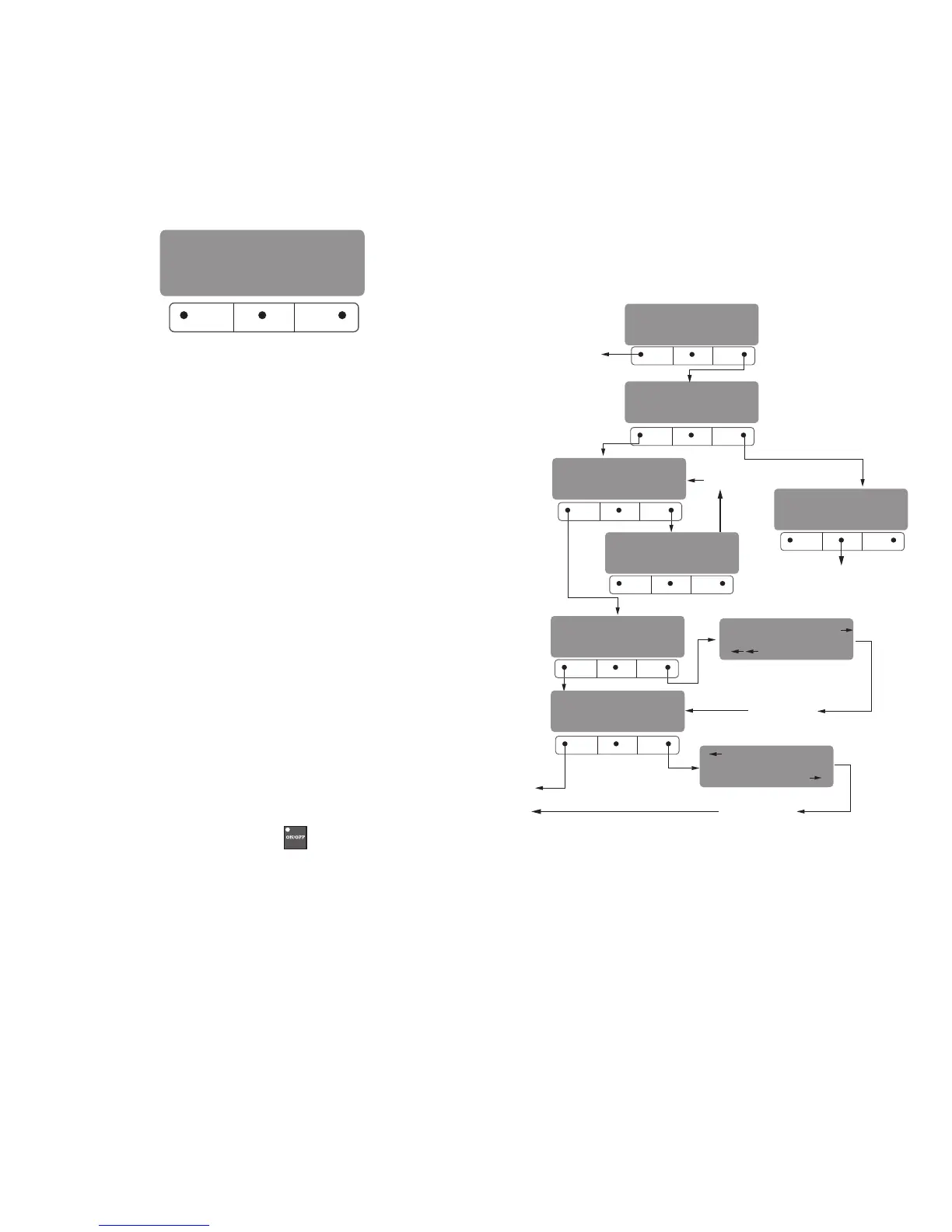

This function allows the testing of individual com-
ponents and the ability to check switches for proper
function. This function also tests the Soft Heat server's
status on the brewer (in place or removed), and the
funnel sensor coil's frequency (diagnostic tool for
troubleshooting purposes only).
EXIT TO
NEXT FUNCTION
SCREEN
EXIT TO
NEXT FUNCTION
SCREEN
PRESS AND RELEASE
® SYMBOL
PRESS AND RELEASE
® SYMBOL
PRESS AND RELEASE
® SYMBOL
NEXT COMPONENT
TO BE TESTED
TEST OUTPUTS?
NO YES
TEST SWITCHES?
NO YES
LEFT BREW VALVE
ON NEXT OFF
SERVER REMOVED
IN PLACE
125.0 KHZ. 4
4 125.0 KHZ.
NOTHING PRESSED
TEST FREQUENCY?
NO YES
TEST SERVERS?
NO YES
SERVICE TOOLS?
NO YES
P2311
PROGRAMMING FUNCTIONS - (cont.)
29877.2 121504
SERVER DETECT ?
NO DONE YES
P2310
Procedures to set server detect:
1. Press and hold the upper right hidden switch until
the display reads SET NEW RECIPE. Release the
switch. Press and release the upper right hidden
switch until the display reads SERVER DETECT.
2. The NO or YES fl ashes to indicate the current
selection.
3. Select YES to prevent brewing if the Soft Heat
®
server is not correctly positioned on the brewer
beneath the funnel.
NOTE: If YES is selected and a brew cycle is attempted
with a server not properly placed, the display will read
SERVER NOT IN PLACE.
4. Select NO to allow brewing without a Soft Heat
®
server in place. This is selected when brewing into
a container other than a Soft Heat
®
Server.
5. When fi nished, press and release DONE. This will
save the new setting, exit the function screen and
advance to SERVICE TOOLS. Another alternative
is to press either of the pads located on the
front switch panel to exit the SERVER DETECT
function and return to the MAIN SCREEN.
SERVER DETECT
This function allows the operator to prevent the start
of a brew cycle if a Soft Heat
®
server is not positioned
correctly on the brewer.
