Page 5
DUAL VOLT
TOGGLE SWITCH

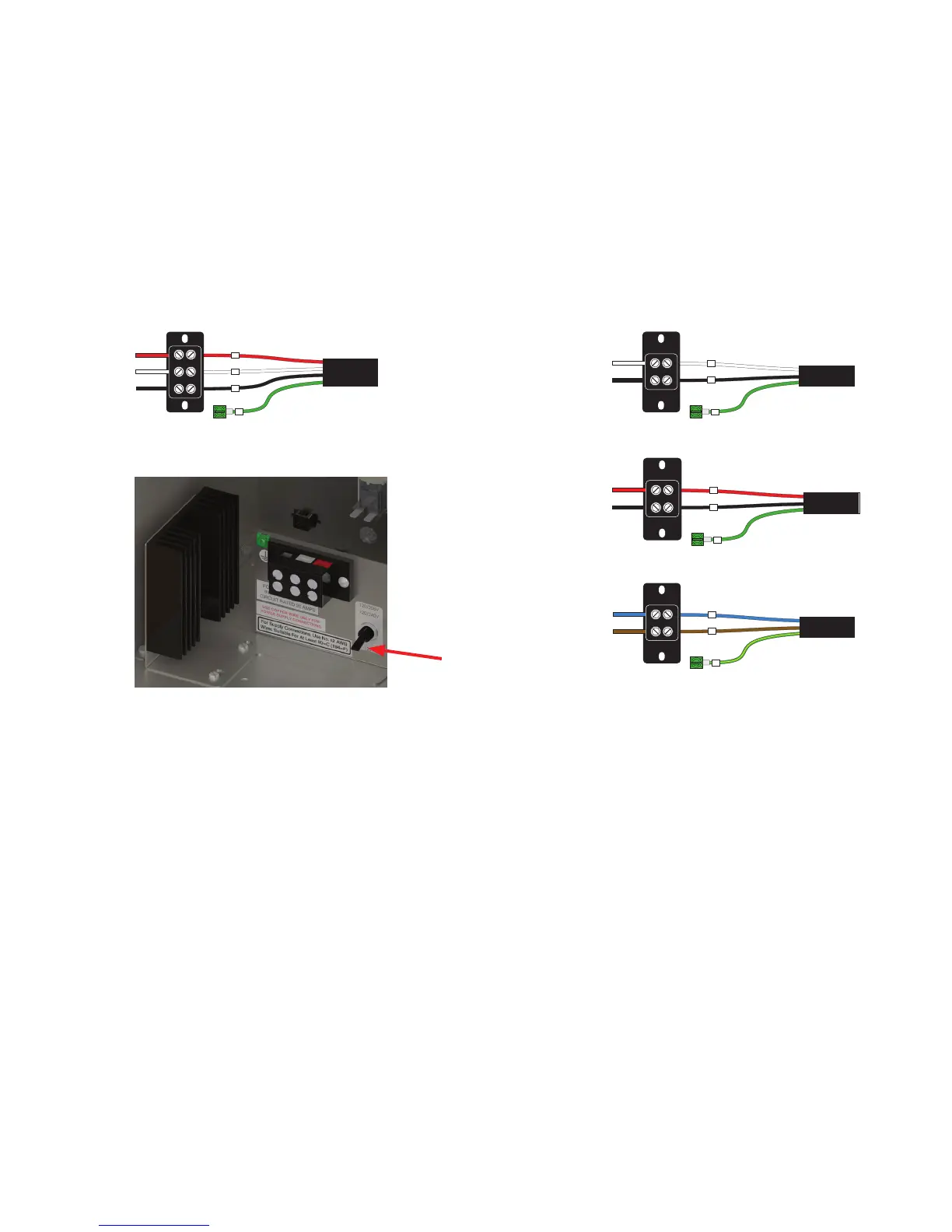

ELECTRICAL HOOK-UP (All Models)
CAUTION – Improper electrical installation will damage electronic components. Damage caused by
incorrect electrical connections is not covered by warranty.
1. An electrician must provide electrical service.
2. Determine the available on-site electrical service.
3. (DV models only) Select the desired unit voltage based on the available on-site electrical service.
4. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
5. Remove the front access panel to gain access to the terminal block.
6. Feed the power cord through the strain relief and connect it to the terminal block(s).
7. Connect the power cord to the terminal block as shown.
8. Before proceeding, verify the voltage at the field wiring terminal block.
9. (DV models only) Set voltage switch to the appropriate position and replace the access panel.
10. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source.
If plumbing has been hooked up, the brewer is ready for Initial Set-up.
ELECTRICAL REQUIREMENTS
WARNING - The brewer must be disconnected from the power source until specified.
WARNING - The power cord must be UL Listed, Flexible Cord Type SO, SJO, SJTO, HSJO or SJOW, Rated 90°
C, and the attachment plug cap must be UL Listed, in order to avoid a hazard. The Power Supply Cord must
be at least 3 feet long and maximum 6 feet long (measured from Strain Relief to end of the Attachment
Plug Cap).
Refer to Data Plate on the Brewer, and local/national electrical codes to determine
circuit requirements.
N
L1
G
L2 RED L2 RED
POWER CORD
WHITE NEUTRAL WHITE
GREEN
NEUTRAL
L1 BLACK L1 BLACK
L2
N
L1
G
POWER CORD
WHITE NEUTRAL WHITE
GREEN
NEUTRAL
L1 BLACK L1 BLACK
L2
L1
L2 RED L2 RED
POWER CORD
GREEN
L1 BLACK L1 BLACK
120/208-240V 3 WIRE + GROUND 120V 2 WIRE + GROUND
240V 2 WIRE + GROUND
N BLUE N BLUE
POWER CORD
GREEN/YELLOW
L1 BROWN L1 BROWN
N
L1
G
220-240V 2 WIRE + GROUND
050718
