DISPENSE PLATFORM REMOVAL
1. Remove concentrate dispense tips by turning 1/4 turn to the left, then pull straight down.
2. Lift and remove product shelf to access dispense platform.
3. Remove front thumb screw holding dispense platform.
4. Disconnect 12 pin connector above dispense platform in rear.
5. Disconnect 3/8” water line at quick disconnect.
6. Remove dispense platform by pulling forward.

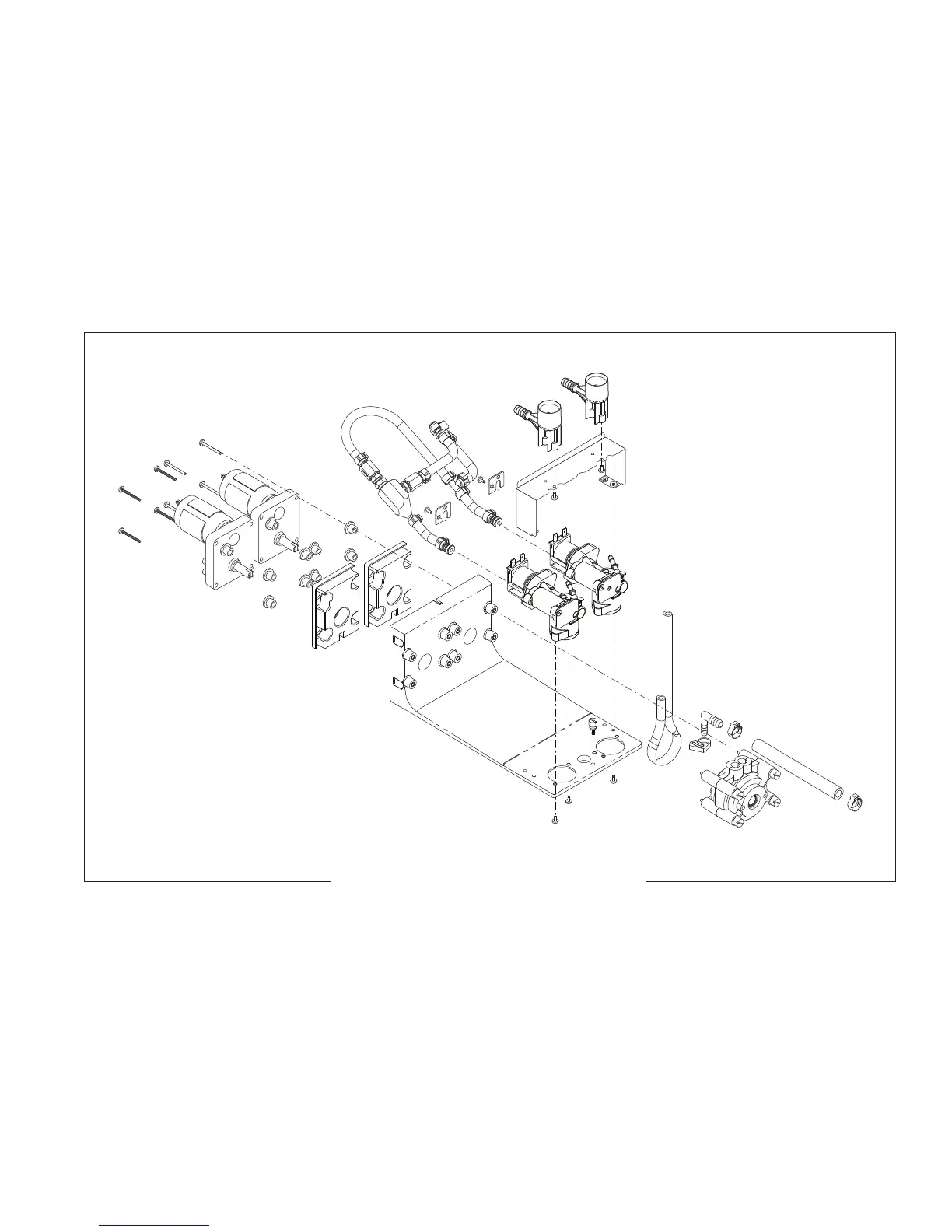

FIG. 2 DISPENSE PLATFORM REMOVAL
P4414.60
55124 021418
