SERVICE (CONT.)
Water Pressure Regulator

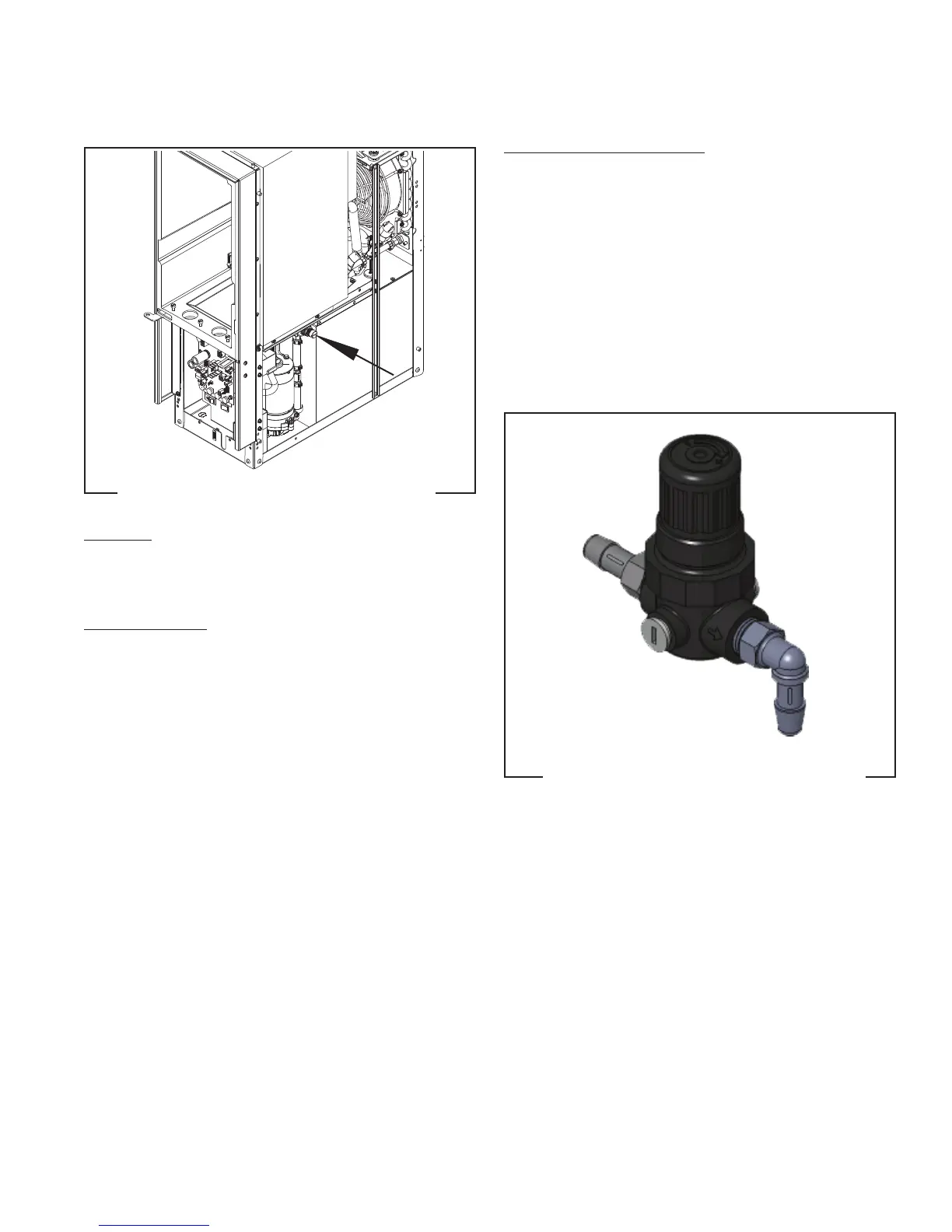

FIG. 56 WATER PRESSURE REGULATOR
FIG. 55 WATER PRESSURE REGULATOR
Location:
The Water Pressure Regulator is located inside the
cabinet on the front right side of the water bath tank.
Test Procedures:
Remove pressure regulator from dispenser. Attach
a water line to the incoming side and a test pressure
gauge assembly on the outlet side. Place water outlet
into an empty bucket and turn on water supply. Unlock
the adjustment knob and rotate knob while watching
the pressure gauge for increase or decrease in water
pressure. If the water pressure or water flow doesn’t
change, replace the regulator.
Removal and Replacement:
1. Disconnect dispenser from the power source.
2. Shut off water supply to the dispenser.
3. Remove the right side housing panel.
4. Disconnect the water lines to and from the regulator.
6. Install the new regulator and attach water lines
previously removed.
7. Reconnect the water supply to the dispenser.
8. Check for leaks and correct if necessary.
9. Reinstall the right side housing panel.
10. Connect power to the dispenser.
