47
SERVICE (CONT.)
Pressure Switch

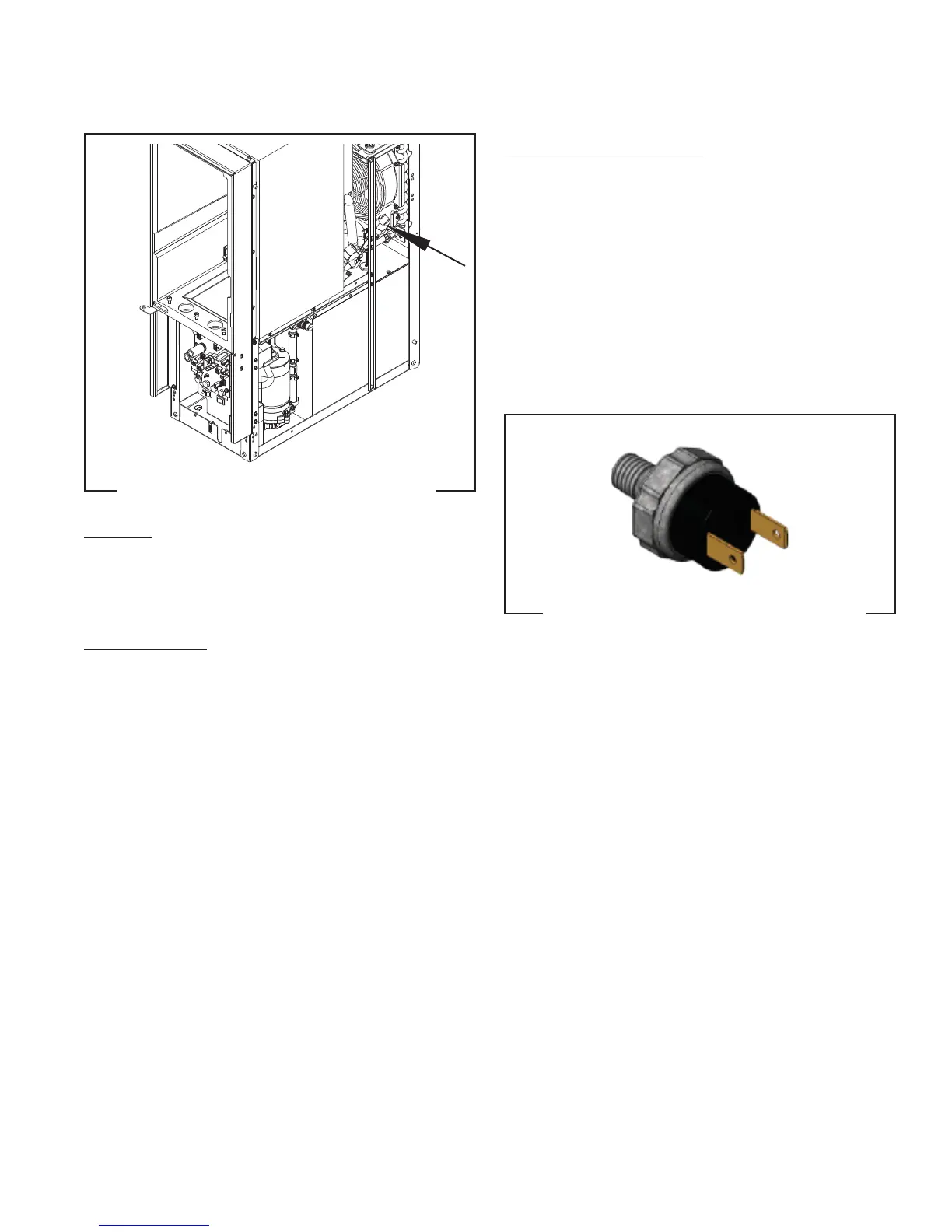

FIG. 61 NITROGEN PRESSURE SWITCH
FIG. 60 NITROGEN PRESSURE SWITCH
Location:
The Nitrogenator is located inside the cabinet on the
platform assembly. The check valves are components
of the Nitrogenator assembly
Test Procedures:
Check for continuity across terminals when no N2 gas
pressure is applied.
No continuity - replace pressure switch.
Removal and Replacement:
1. Disconnect dispenser from the power source.
2. Shut off nitrogen supply to the dispenser.
3. Remove the right side housing panel.
4. Disconnect the pressure switch from the Nitrogen
line.
5. Install the new pressure switch to the nitrogen line.
6. Reconnect nitrogen supply to the dispenser.
7. Reinstall the right side housing panel.
8. Connect power to the dispenser.
55124 021418
